Siemens 6SL3055-0AA00-5JA3 SINAMICS SME120 Sensor Module Sin/Cos PTC KTY Hall IP67 VFD Accessory

% $-661.94

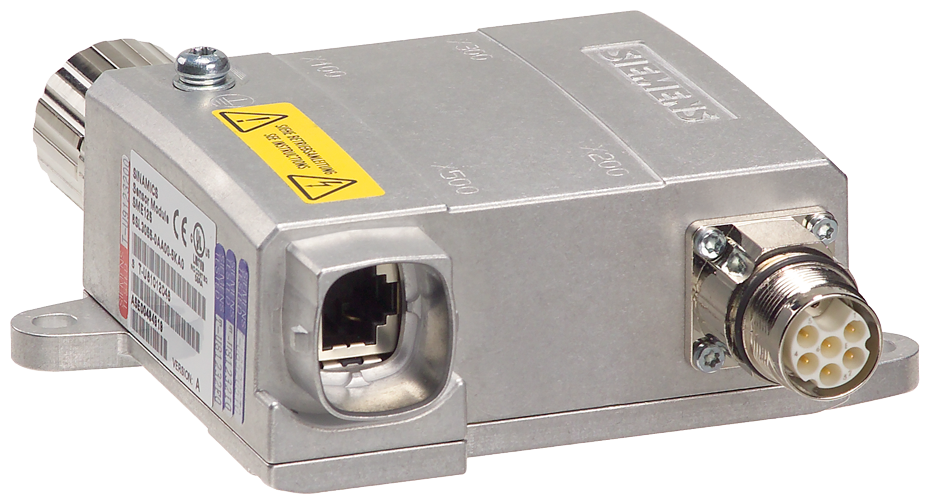

Siemens 6SL3055-0AA00-5JA3 SINAMICS SME120 sensor module - sin/cos encoder, PTC/KTY, Hall inputs
Siemens 6SL3055-0AA00-5JA3 SINAMICS SME120 sensor module - sin/cos encoder, PTC/KTY, Hall inputs

Siemens 6SL3055-0AA00-5JA3 SINAMICS SME120 Sensor Module Sin/Cos PTC KTY Hall IP67 VFD Accessory

Brand: Siemens
Reference No: 6SL3055-0AA00-5JA3
Catalog No: 6SL3055-0AA00-5JA3
Series: SINAMICS S120
Tariff Code (HS): 85049090
Rated Current: 0.16 A
Communication: DRIVE-CLiQ
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$661.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6SL3055-0AA00-5JA3 is a SINAMICS SME120 external sensor module for a sin/cos 1 Vpp incremental encoder with PTC/KTY temperature-sensor inputs and secure electrical isolation, rated IP67. It adds a separate 6-pin M17 temperature connector and a 9-pin M23 Hall-effect sensor connector alongside the 12-pin M23 encoder connector, drawing 0.16 A at 24 V DC; it is supplied without a DRIVE-CLiQ cable.

Technical Specifications

SKU / Order Number (MLFB) 6SL3055-0AA00-5JA3
Brand Siemens
Series SINAMICS S120
EAN 4034106439521
Encoder type Incremental, sin/cos 1 Vpp, with PTC/KTY inputs (secure electrical isolation)
Encoder frequency, max. 500 kHz
Measuring system connector 12-pin M23 circular connector
Temperature sensor connector 6-pin M17 circular connector
Hall-effect sensor connector 9-pin M23 circular connector
Output connector IP67 DRIVE-CLiQ connector
Degree of protection IP67
Power requirement (24 V DC) 0.16 A
Encoder interface voltage 5 V DC
Power loss, max. 4.5 W
Max. cable length to measuring system 3 m (9.84 ft)
Max. cable length to drive control 100 m (328.08 ft)
Net weight 0.70 kg (1.54 lb)
Width 117.6 mm (4.63 in)
Height 43.1 mm (1.70 in)
Depth 127.0 mm (5.00 in)
Country of Origin DE

Selection Notes

Pick the SME120 over the smaller SME20 when the motor feedback also needs PTC/KTY winding-temperature monitoring and Hall-effect commutation signals through their own dedicated connectors, not just encoder position. The extra connectors are why the SME120's footprint, 117.6 x 43.1 x 127.0 mm, is roughly double the SME20's 58.0 x 44.0 x 112.0 mm.

Technical Details

Short Description
SINAMICS SME120 sensor module, sin/cos encoder, PTC/KTY and Hall-effect inputs, IP67, 0.16 A at 24 V DC.
Rated Current (Ampere)
0.16 A
Protection Type
IP67
Catalog No
6SL3055-0AA00-5JA3
Delivery Date (Days)
10-15 days
Model Number
6SL3055-0AA00-5JA3
Tariff Code
85049090
