Siemens 6SL3055-0AA00-5CA2 SINAMICS S120 SMC30 Encoder Interface Drive Module

% $-275.64

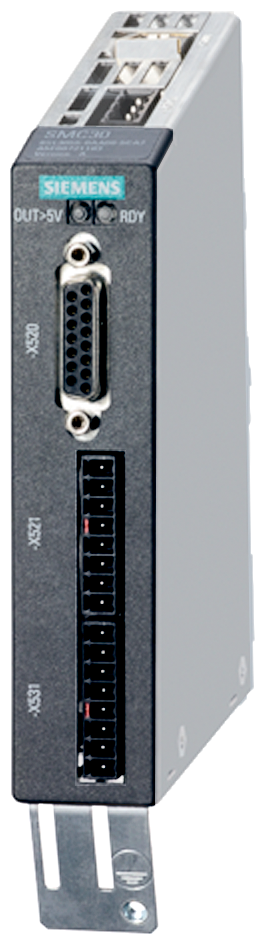

Siemens 6SL3055-0AA00-5CA2 SINAMICS SMC30 sensor module - encoder interface
Siemens 6SL3055-0AA00-5CA2 SINAMICS SMC30 sensor module - encoder interface

Siemens 6SL3055-0AA00-5CA2 SINAMICS S120 SMC30 Encoder Interface Drive Module

Brand: Siemens
Reference No: 6SL3055-0AA00-5CA2
Catalog No: 6SL3055-0AA00-5CA2
Series: SINAMICS S120
Tariff Code (HS): 85049090
Communication: DRIVE-CLiQ (cable not included)
Stock: 16
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$275.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6SL3055-0AA00-5CA2 SINAMICS SMC30 is a Sensor Module Cabinet that connects incremental TTL/HTL encoders, combi SSI encoders with incremental tracks, or SSI-only encoders to a SINAMICS S120 drive system. It has a 30 mm overall width and a net weight of 0.41 kg, and ships without a DRIVE-CLiQ cable.

Technical Specifications

Order No. (MLFB) 6SL3055-0AA00-5CA2
EAN 4042948673010
Brand Siemens
Series SINAMICS S120
Product Type Designation SMC30 Sensor Module Cabinet
Supported Encoder Types Incremental TTL/HTL; combi-encoder SSI with incremental tracks; SSI without incremental signals
DRIVE-CLiQ Cable Not included
Overall Width 30 mm
Net Weight 0.41 kg

Selection Notes

This SMC30 variant does not include a DRIVE-CLiQ cable, so order the appropriate length separately when connecting it to a Control Unit or Motor Module. It accepts three encoder interface types, TTL/HTL incremental, combined SSI-plus-incremental-track, or SSI-only, so confirm which encoder protocol the connected motor or axis uses before specifying this module over a single-protocol sensor module.

Applications

External encoder feedback interfacing on SINAMICS S120 axes using TTL/HTL or SSI encoders mounted separately from the motor.

Technical Details

Short Description
SINAMICS SMC30 sensor module - TTL/HTL or SSI encoder interface for S120 drives, 30mm width.
Mounting Type
Cabinet mount, 30mm width
Catalog No
6SL3055-0AA00-5CA2
Delivery Date (Days)
1-2 days
Model Number
6SL3055-0AA00-5CA2
Tariff Code
85049090
