- Part number
- 6BK1630-2AA10-0AA0

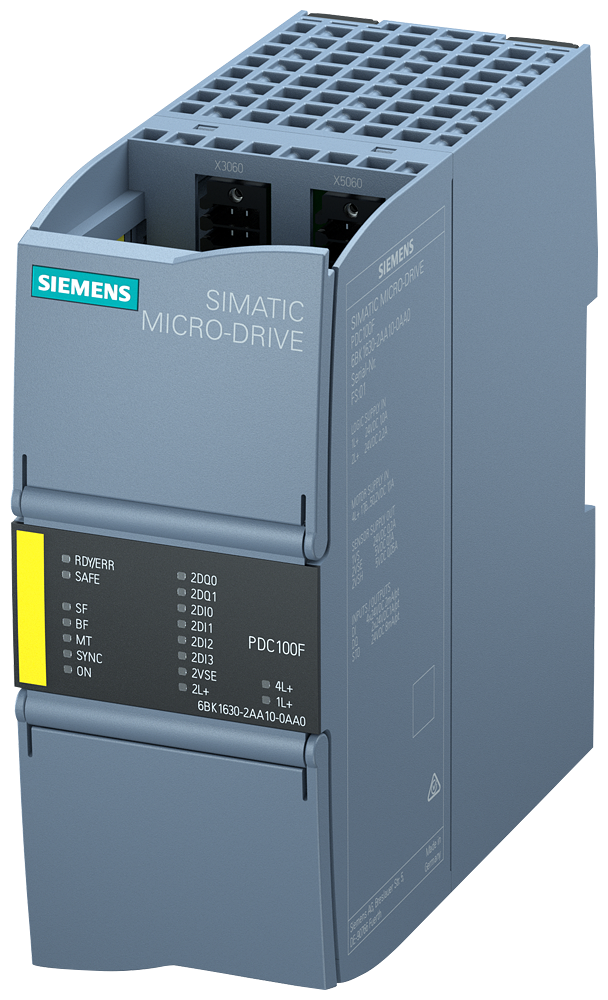

SIMATIC MICRO-DRIVESiemens 6BK1630-2AA10-0AA0 SIMATIC MICRO-DRIVE PDC100F 24-48V 100W Servo Drive
SIMATIC MICRO-DRIVE PDC100F servo drive controller, 24-48V DC, 100W max motor output, 0.39 kg.
Description
About the 6BK1630-2AA10-0AA0
About the 6BK1630-2AA10-0AA0
The Siemens 6BK1630-2AA10-0AA0 is a SIMATIC MICRO-DRIVE PDC100F drive controller for servo drives in the extra low voltage range, supplied from 24 up to 48 V DC and rated for a motor output up to 100 W. Safety Integrated via PROFIsafe. It weighs 0.39 kg and ships boxed as a standalone controller for low-voltage servo motion.
Selection Notes
This variant adds Safety Integrated via PROFIsafe on top of the base 100 W rating, so the safety function runs over the fieldbus instead of a hardwired STO loop - pick it when the machine's safety architecture is already PROFIsafe-based and you want to avoid a separate hardwired safety circuit for this axis. Stay with the non-F variant in the same power class when a hardwired STO signal is simpler to integrate into the existing cabinet wiring.
Specification
Full specification
Rated data 3
| Output: Rated current | 1.56 A |
|---|---|
| Output: Max. output current | 2.3 A |
| Output: Max. output voltage (DC) | 50.4 V |
Electrical data 3
| Operating voltage (DC) | 24 V (19.2 ... 28.8 V) |
|---|---|
| Current demand, max. | 0.9 A |
| Power loss | 8W |
General tech.specifications 9
| Product function: Isochronous mode | 1 |
|---|---|
| Product function: Four-quadrant operation | 1 |
| Product function: Speed control with encoder | 1 |
| Product function: Speed control without encoder | 0 |
| Product function: Safety Functions | 1 |
| Protection function: Undervoltage protection | 1 |
| Protection function: Overvoltage protection | 1 |
| Protection function: Overload protection | 1 |
| Protection function: Short-circuit protection | 1 |
Show all 46 specifications ↓ Show less ↑31 more values in Identification, Inputs / outputs, Ambient conditions, Connections, Mechanical data, Certificates, Logistics.
Identification 6
| Part number | 6BK1630-2AA10-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4047618110208 |
Inputs / outputs 7
| Standard digital inputs: Number | 4 |
|---|---|
| Standard digital inputs: Max. inrush current | 1.6 A |
| Fail-safe digital inputs: Number | 1 |
| Digital outputs: Number | 2 |
| Encoder interface: Incremental encoder (symmetrical) | 1 (Up to 200 kHz) |
| Encoder interface: Absolut encoder (SSI) | 1 (350 kHz) |
| PROFINET interface: Number | 2 |
Ambient conditions 4
| Ambient temperature during: Operation | -20 ... 60 °C |
|---|---|
| Ambient temperature during: Transport | -20 ... 80 °C |
| Ambient temperature during: Storage | -20 ... 80 °C |
| Relative humidity: without condensation | 95 % |
Connections 1
| Max. motor cable length: Shielded | 10 m |
|---|
Mechanical data 6
| Degree of protection | IP20 |
|---|---|
| Mounting type | 35 mm rail, screw mounting |
| Type of ventilation | Convection cooling 1 (Onboard, expandable) |
| Dimensions: Width | 50 mm |
| Dimensions: Height | 125 mm (136 mm with protective collar for PN connector) |
| Dimensions: Depth | 120 mm |
Certificates 2
| Certificate of suitability | CE / cULus / C-Tick / KC / EAC / China-RoHS- Conformity according to guideline SJ/T |
|---|---|
| Page 1 of 1 | 11364-2006 Generated Sun Nov 1 01:20:26 CET 2026 |
Logistics 5
| Net weight | 0.35 kg |
|---|---|
| Shipping weight | 0.89 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6BK1630-2AA10-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6BK1630-2AA10-0AA0
Which supply voltage is 6BK1630-2AA10-0AA0 rated for?
The rated operational voltage of 6BK1630-2AA10-0AA0 is 24–48 V DC.
What motor power is 6BK1630-2AA10-0AA0 rated for?
The rated motor power of 6BK1630-2AA10-0AA0 is 0.1 kW.
What is the HS code of 6BK1630-2AA10-0AA0 for customs?
The tariff (HS) code on file for 6BK1630-2AA10-0AA0 is 85389091.
What is the EAN of 6BK1630-2AA10-0AA0?
The EAN (GTIN) of 6BK1630-2AA10-0AA0 is 4047618110208.
Where does 6BK1630-2AA10-0AA0 ship from, and how fast?
6BK1630-2AA10-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
