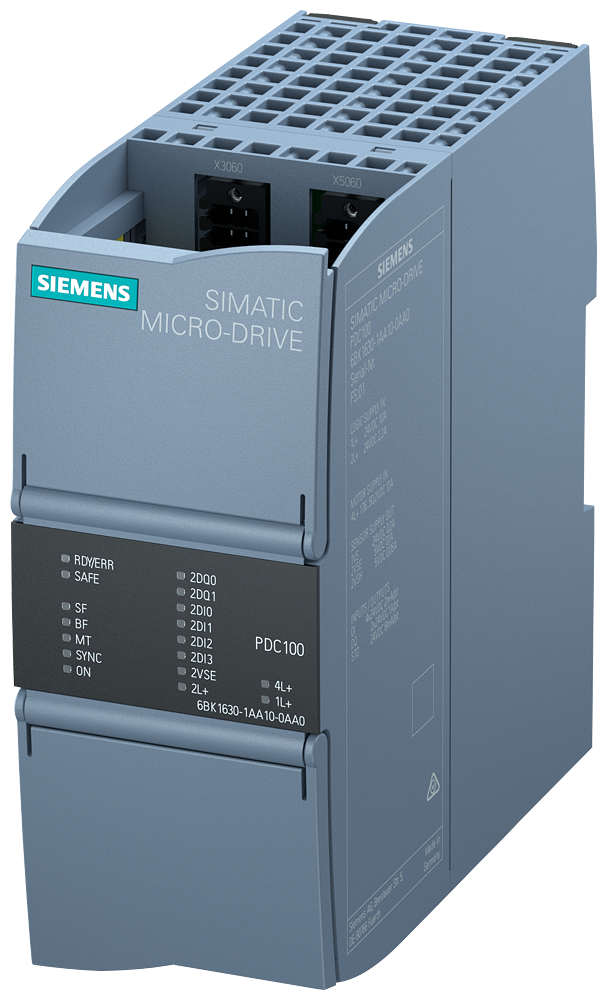

SIMATIC MICRO-DRIVESiemens 6BK1630-1AA10-0AA0 SIMATIC MICRO-DRIVE PDC100 24-48V 100W Servo Drive
SIMATIC MICRO-DRIVE PDC100 servo drive controller, 24-48V DC, 100W max motor output, 0.39 kg.
Description
About the 6BK1630-1AA10-0AA0
About the 6BK1630-1AA10-0AA0
The Siemens 6BK1630-1AA10-0AA0 is a SIMATIC MICRO-DRIVE PDC100 drive controller for servo drives in the extra low voltage range, supplied from 24 up to 48 V DC and rated for a motor output up to 100 W. It uses a hardwired STO input for the safety function. It weighs 0.39 kg and ships boxed as a standalone controller for low-voltage servo motion.
Selection Notes
The hardwired STO input lets this 100 W controller reach a safe torque-off state without a fieldbus safety layer, which suits machines where the safety circuit is built from conventional relays and switches rather than PROFIsafe. Move up to the next power class in the same PDC family when the driven axis needs more than 100 W of motor output; the PDC100 is sized for its rated output and should not be run past it.
Specification
Full specification
Rated data 3
| Output: Rated current | 1.56 A |
|---|---|
| Output: Max. output current | 2.3 A |
| Output: Max. output voltage (DC) | 50.4 V |
Electrical data 3
| Operating voltage (DC) | 24 V (19.2 ... 28.8 V) |
|---|---|
| Current demand, max. | 0.9 A |
| Power loss | 8W |
General tech.specifications 9
| Product function: Isochronous mode | 1 |
|---|---|
| Product function: Four-quadrant operation | 1 |
| Product function: Speed control with encoder | 1 |
| Product function: Speed control without encoder | 0 |
| Product function: Safety Functions | 1 |
| Protection function: Undervoltage protection | 1 |
| Protection function: Overvoltage protection | 1 |
| Protection function: Overload protection | 1 |
| Protection function: Short-circuit protection | 1 |
Show all 46 specifications ↓ Show less ↑31 more values in Identification, Inputs / outputs, Ambient conditions, Connections, Mechanical data, Certificates, Logistics.
Identification 6
| Part number | 6BK1630-1AA10-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4047618110215 |
Inputs / outputs 7
| Standard digital inputs: Number | 4 |
|---|---|
| Standard digital inputs: Max. inrush current | 1.6 A |
| Fail-safe digital inputs: Number | 1 |
| Digital outputs: Number | 2 |
| Encoder interface: Incremental encoder (symmetrical) | 1 (Up to 200 kHz) |
| Encoder interface: Absolut encoder (SSI) | 1 (350 kHz) |
| PROFINET interface: Number | 2 |
Ambient conditions 4
| Ambient temperature during: Operation | -20 ... 60 °C |
|---|---|
| Ambient temperature during: Transport | -20 ... 80 °C |
| Ambient temperature during: Storage | -20 ... 80 °C |
| Relative humidity: without condensation | 95 % |
Connections 1
| Max. motor cable length: Shielded | 10 m |
|---|
Mechanical data 6
| Degree of protection | IP20 |
|---|---|
| Mounting type | 35 mm rail, screw mounting |
| Type of ventilation | Convection cooling 1 (Onboard, expandable) |
| Dimensions: Width | 50 mm |
| Dimensions: Height | 125 mm (136 mm with protective collar for PN connector) |
| Dimensions: Depth | 120 mm |
Certificates 2
| Certificate of suitability | CE / cULus / C-Tick / KC / EAC / China-RoHS- Conformity according to guideline SJ/T |
|---|---|
| Page 1 of 1 | 11364-2006 Generated Sun Nov 1 01:19:57 CET 2026 |
Logistics 5
| Net weight | 0.35 kg |
|---|---|
| Shipping weight | 0.89 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6BK1630-1AA10-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6BK1630-1AA10-0AA0
Which supply voltage is 6BK1630-1AA10-0AA0 rated for?
The rated operational voltage of 6BK1630-1AA10-0AA0 is 24–48 V DC.
What motor power is 6BK1630-1AA10-0AA0 rated for?
The rated motor power of 6BK1630-1AA10-0AA0 is 0.1 kW.
What is the HS code of 6BK1630-1AA10-0AA0 for customs?
The tariff (HS) code on file for 6BK1630-1AA10-0AA0 is 85044095.
What is the EAN of 6BK1630-1AA10-0AA0?
The EAN (GTIN) of 6BK1630-1AA10-0AA0 is 4047618110215.
Where does 6BK1630-1AA10-0AA0 ship from, and how fast?
6BK1630-1AA10-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
