- Part number
- XPSUS32AP
Description
About the XPSUS32AP
About the XPSUS32AP

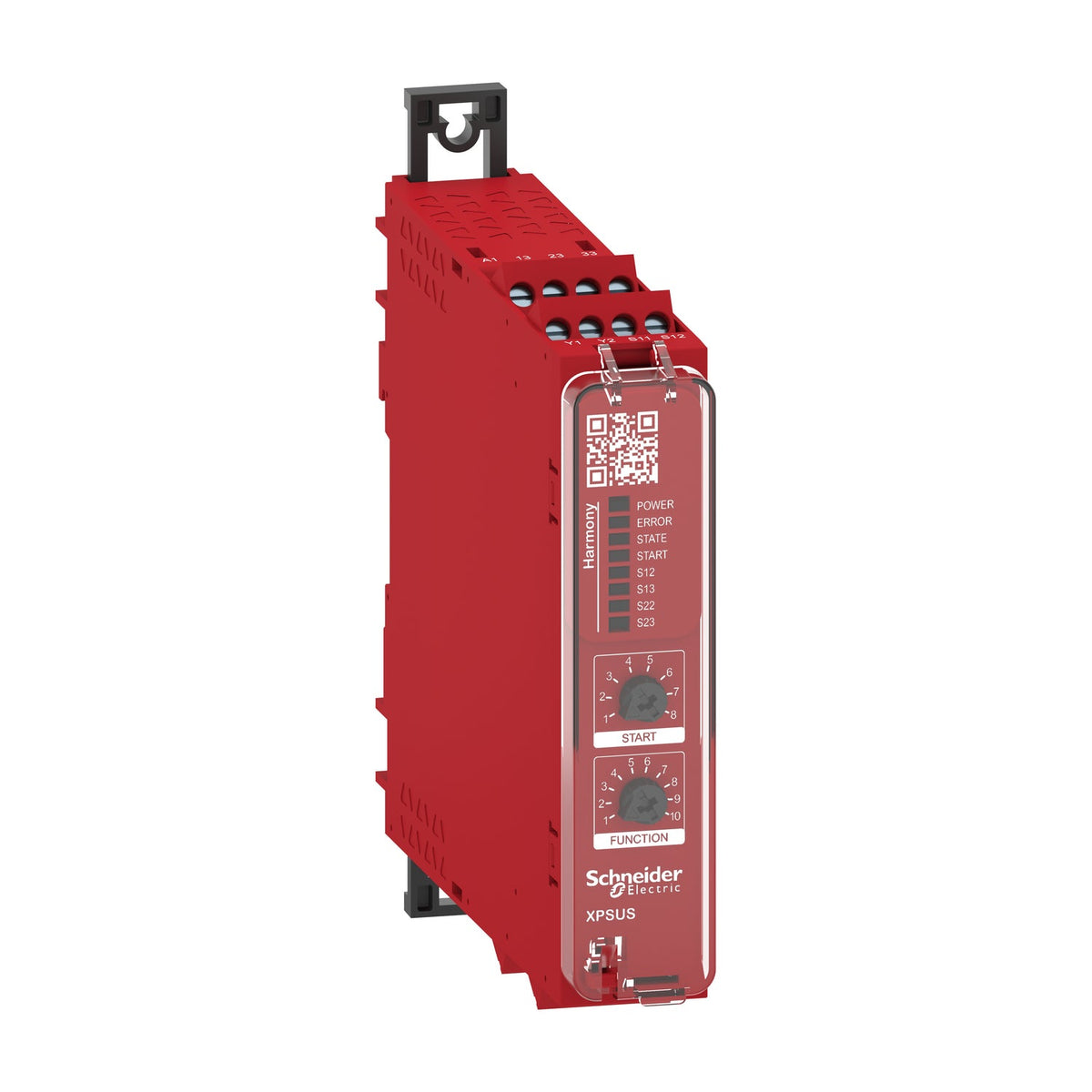

The Schneider Electric XPSUS32AP is a Preventa XPSU universal safety module rated PL e / Category 4 per ISO 13849-1, built for emergency stop, guard, light curtain, two-hand control and enabling-switch monitoring. It runs on a 48-240 V AC/DC supply and provides 2 safety inputs, 2 NO safety outputs, plus 3 configurable pulsed outputs on a 35 mm DIN rail.
Certifications & Standards
- TÜV
- cULus
- IEC 60947-5-1
- IEC 61508-1
- IEC 61508-2
- IEC 61508-3
- IEC 61508-4
- IEC 61508-5
- IEC 61508-6
- IEC 61508-7
- ISO 13849-1
- IEC 62061
Selection Notes
XPSUS32AP's universal input wiring supports several safety-input types — NC pair, PNP pair, antivalent pair or OSSD pair — configured through the module's function selection rather than requiring a dedicated single-function relay for each sensor type. Its Category 4 / PLe rating with a PFHd of 1.61E-09 covers emergency stop, guard interlocking, light curtain and two-hand control circuits in the same housing, reducing the number of relay types a panel builder has to stock. The 48-240 V AC/DC supply range covers both low-voltage and 110/230 V control circuits without a separate variant. The semiconductor diagnostic output (24 V DC, 20 mA, non-safety) reports status back to a PLC without adding a separate monitoring relay.
Applications
XPSUS32AP universal safety modules monitor emergency stop buttons, guard switches, light curtains, two-hand control stations and enabling switches in Food and Beverage, Hoisting, Material Handling, Material Working and Packaging equipment.
Specification
Full specification
Main 10
| Range of Product | Harmony Safety Automation |
|---|---|
| Product or Component Type | Safety module |
| Safety module name | XPSUS |
| Safety module application | For electrical monitoring of two-hand control stations, Monitoring antivalent contacts, For emergency stop, guard and light curtain monitoring, For enabling switch monitoring |
| Function of module | Emergency stop button with 2 NC contacts, Guard monitoring with 1 or 2 limit switches, Monitoring 2 PNP sensors, Magnetic switch monitoring, Light curtain monitoring, RFID switch, Monitoring of electro-sensitive protection equipment (ESPE), Enabling switch monitoring, Proximity sensor monitoring, Monitoring two-hand control station |
| Safety level | Can reach PL e/category 4 ISO 13849-1, Can reach SILCL 3 IEC 62061, Can reach SIL 3 IEC 61508 |
| Safety reliability data | MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.61E-09 ISO 13849-1, HFT = 1 IEC 62061, PFHd = 1.61E-09 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, PFHd = 1.61E-09 IEC 61508-1, SFF > 99% IEC 61508-1, Type = B IEC 61508-1 |
| Electrical circuit type | NC pair, PNP pair, Antivalent pair, OSSD pair |
| Connections - terminals | Removable screw terminal block, 0.2...2.5 mm² solid or flexible, Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] Rated Supply Voltage | 48...240 V AC/DC - 10...10 % |
Complementary 25
| Synchronisation time between inputs | 0.5 s, 2 s, 4 s |
|---|---|
| Type of start | Automatic/manual/monitored |
| Power consumption in W | 3 W 48 V DC |
| Power consumption in VA | 8.5 VA 240 V AC 50/60 Hz |
| Input protection type | Internal, electronic |
| safety outputs | 2 NO |
| safety inputs | 2 safety input 24 V DC 5 mA |
| maximum wire resistance | 500 Ohm |
| Input compatibility | Normally closed circuit ISO 14119, XC limit switch ISO 14119, Mechanical contact ISO 14119, Normally closed circuit ISO 13850, Antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, Two-hand control EN 574/ISO 13851-III A, Two-hand control EN 574/ISO 13851-III C, 3-wire proximity sensors PNP |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact |
| control outputs | 3 on/off configurable pulsed output |
| Input/output type | Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related |
| [Ith] conventional free air thermal current | 8 A |
| Associated fuse rating | 10 A gG NO relay output circuit IEC 60947-1 |
| Minimum output current | 10 mA relay output |
| Minimum output voltage | 12 V relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV II IEC 60947-1 |
| Local signalling | LED (green) for power ON, LED (red) for error, LED (yellow) for safety output status, LED (yellow) for start input, LED (yellow) for safety input S12, LED (yellow) for safety input S13, LED (yellow) for safety input S22, LED (yellow) for safety input S23 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 4.7 in (120 mm) |
| Height | 3.9 in (100 mm) |
| Width | 0.9 in (22.5 mm) |
| Net Weight | 0.441 lb(US) (0.200 kg) |
Environment 5
| Standards | IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard |
|---|---|
| Product Certifications | TÜV, cULus |
| IP degree of protection | IP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529 |
| Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) |
| Relative Humidity | 5…95 % non-condensing |
Show all 53 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPSUS32AP |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489601836 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XPSUS32AP
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus
- IEC 60947-5-1
- IEC 61508-1 functional safety standard
- IEC 61508-2 functional safety standard
- IEC 61508-3 functional safety standard
- IEC 61508-4 functional safety standard
- IEC 61508-5 functional safety standard
- IEC 61508-6 functional safety standard
- IEC 61508-7 functional safety standard
- ISO 13849-1 functional safety standard
- IEC 62061 functional safety standard
Quick answers
Questions about the XPSUS32AP
What is the rated current of XPSUS32AP?
The rated current of XPSUS32AP is 8 A.
Which supply voltage is XPSUS32AP rated for?
The rated operational voltage of XPSUS32AP is 48–240–DC V DC.
What is the HS code of XPSUS32AP for customs?
The tariff (HS) code on file for XPSUS32AP is 853641.
What is the EAN of XPSUS32AP?
The EAN (GTIN) of XPSUS32AP is 3606489601836.
Where does XPSUS32AP ship from, and how fast?
XPSUS32AP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
