- Part number
- XPSUEP14AP
Description
About the XPSUEP14AP
About the XPSUEP14AP

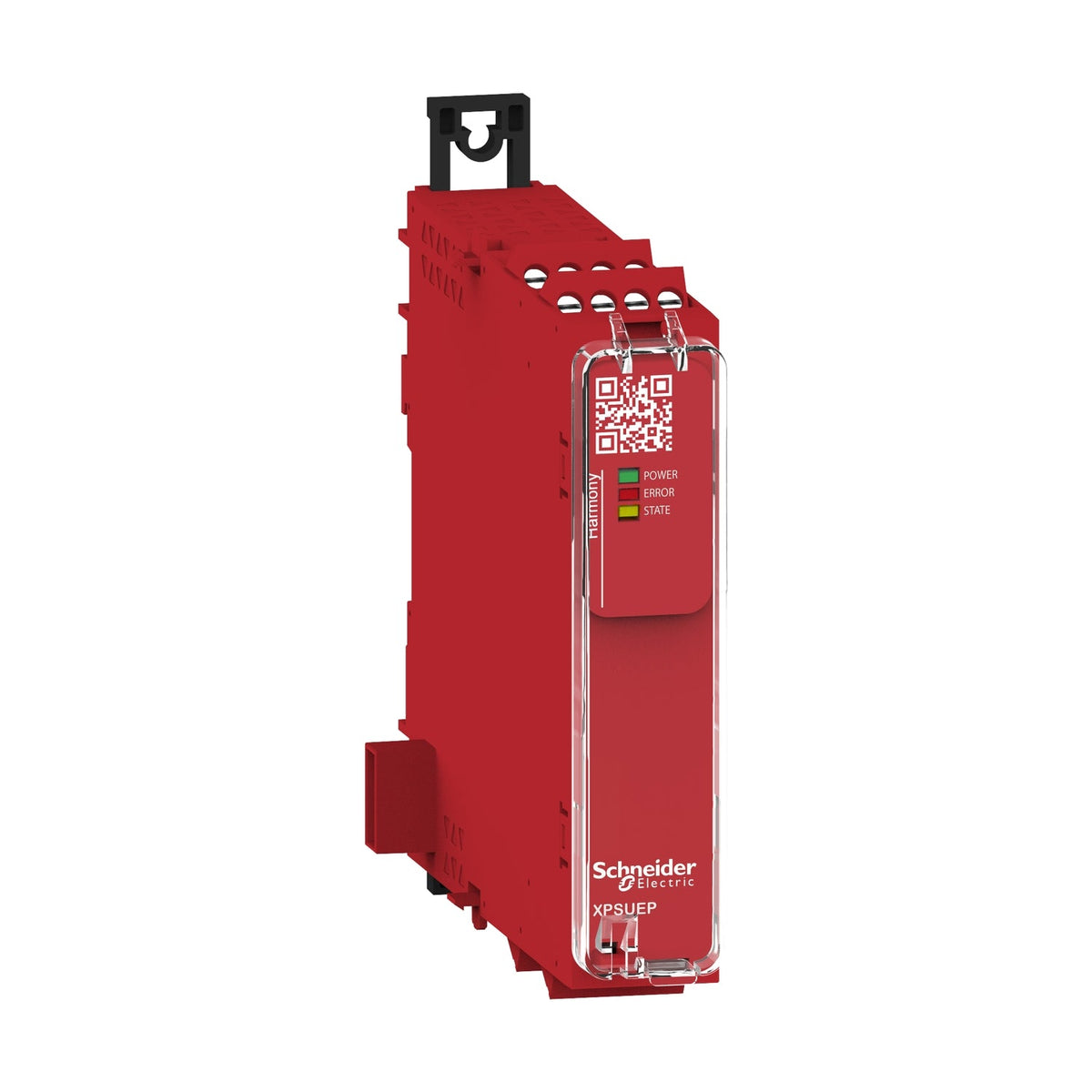

The Schneider Electric XPSUEP14AP is a Preventa XPSU expansion module that adds 4 redundant NO safety outputs and 2 single NC outputs to an XPSUAF, XPSUAK, XPSUAT, XPSUDN or XPSUS base module via the safety extension bus. Powered at 24 V AC/DC, it reaches Category 4 / PLe per ISO 13849-1 and SIL 3 per IEC 61508. It cannot operate without a compatible XPSU base module.
Certifications & Standards
- TÜV
- cULus
- IEC 60947-5-1
- IEC 61508
- ISO 13849-1
- IEC 62061
Selection Notes
Choose the XPSUEP14AP when an existing XPSUAF13AP, XPSUAT13A3AP, XPSUDN13AP or XPSUS12AP base module runs out of NO/NC contacts for the downstream contactors or drives it needs to switch — it adds 4 redundant NO plus 2 single NC outputs over the safety extension bus without adding another independent safety loop to configure. Match its 24 V AC/DC supply to the base module's voltage class (use the XPSUEP34AP instead with a 48-240 V base module). It has no safety inputs of its own; all input monitoring stays on the base module.
Specification
Full specification
Main 10
| Range of Product | Harmony Safety Automation |
|---|---|
| Product or Component Type | Safety module |
| Safety module name | XPSUEP |
| Safety module application | For extending number of safety contacts |
| Function of module | Safety output extension |
| Safety level | Can reach PL e/category 4 for normally open relay contact ISO 13849-1, Can reach SILCL 3 for normally open relay contact IEC 62061, Can reach SIL 3 for normally open relay contact IEC 61508, Can reach PL c/category 1 for normally closed relay contact ISO 13849-1, Can reach SILCL 1 for normally closed relay contact IEC 62061, Can reach SIL 1 for normally closed relay contact IEC 61508 |
| Safety reliability data | MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 0.97E-09 ISO 13849-1, HFT = 1 IEC 62061, PFHd = 0.97E-09 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, PFHd = 0.97E-09 IEC 61508-1, SFF > 99% IEC 61508-1, Type = B IEC 61508-1 |
| Electrical circuit type | Addition to Preventa XPSU base module |
| Connections - terminals | Removable screw terminal block, 0.2...2.5 mm² solid or flexible, Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] Rated Supply Voltage | 24 V AC - 15...10 %, 24 V DC - 20...20 % |
Complementary 21
| Power consumption in W | 1.5 W 24 V DC |
|---|---|
| Power consumption in VA | 3.5 VA 24 V AC 50/60 Hz |
| Input protection type | Internal, electronic |
| safety outputs | 4 NO redundant, 2 NC single |
| safety inputs | 0 extension bus 24 V DC 5 mA |
| Maximum line resistance | 60 Ohm |
| Input compatibility | Normally closed circuit ISO 14119, XC limit switch ISO 14119, Mechanical contact ISO 14119, Normally closed circuit ISO 13850, Antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact |
| [Ith] conventional free air thermal current | 8 A |
| Associated fuse rating | 10 A gG NO relay output circuit IEC 60947-1, 4 A gG NC relay output circuit IEC 60947-1 |
| Minimum output current | 10 mA relay output |
| Minimum output voltage | 12 V relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV II IEC 60947-1 |
| Local signalling | LED (green) for power ON, LED (red) for error, LED (yellow) for safety output status |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 4.7 in (120 mm) |
| Height | 3.9 in (100 mm) |
| Width | 0.9 in (22.5 mm) |
| Net Weight | 0.441 lb(US) (0.200 kg) |
Environment 5
| Standards | IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard |
|---|---|
| Product Certifications | TÜV, cULus |
| IP degree of protection | IP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529 |
| Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) |
| Relative Humidity | 5…95 % non-condensing |
Show all 49 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPSUEP14AP |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489601775 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XPSUEP14AP
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus
- IEC 60947-5-1
- IEC 61508-1 functional safety standard
- IEC 61508-2 functional safety standard
- IEC 61508-3 functional safety standard
- IEC 61508-4 functional safety standard
- IEC 61508-5 functional safety standard
- IEC 61508-6 functional safety standard
- IEC 61508-7 functional safety standard
- ISO 13849-1 functional safety standard
- IEC 62061 functional safety standard
Quick answers
Questions about the XPSUEP14AP
What is the rated current of XPSUEP14AP?
The rated current of XPSUEP14AP is 8 A.
Which supply voltage is XPSUEP14AP rated for?
The rated operational voltage of XPSUEP14AP is 24–DC V DC.
What is the HS code of XPSUEP14AP for customs?
The tariff (HS) code on file for XPSUEP14AP is 853641.
What is the EAN of XPSUEP14AP?
The EAN (GTIN) of XPSUEP14AP is 3606489601775.
Where does XPSUEP14AP ship from, and how fast?
XPSUEP14AP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
