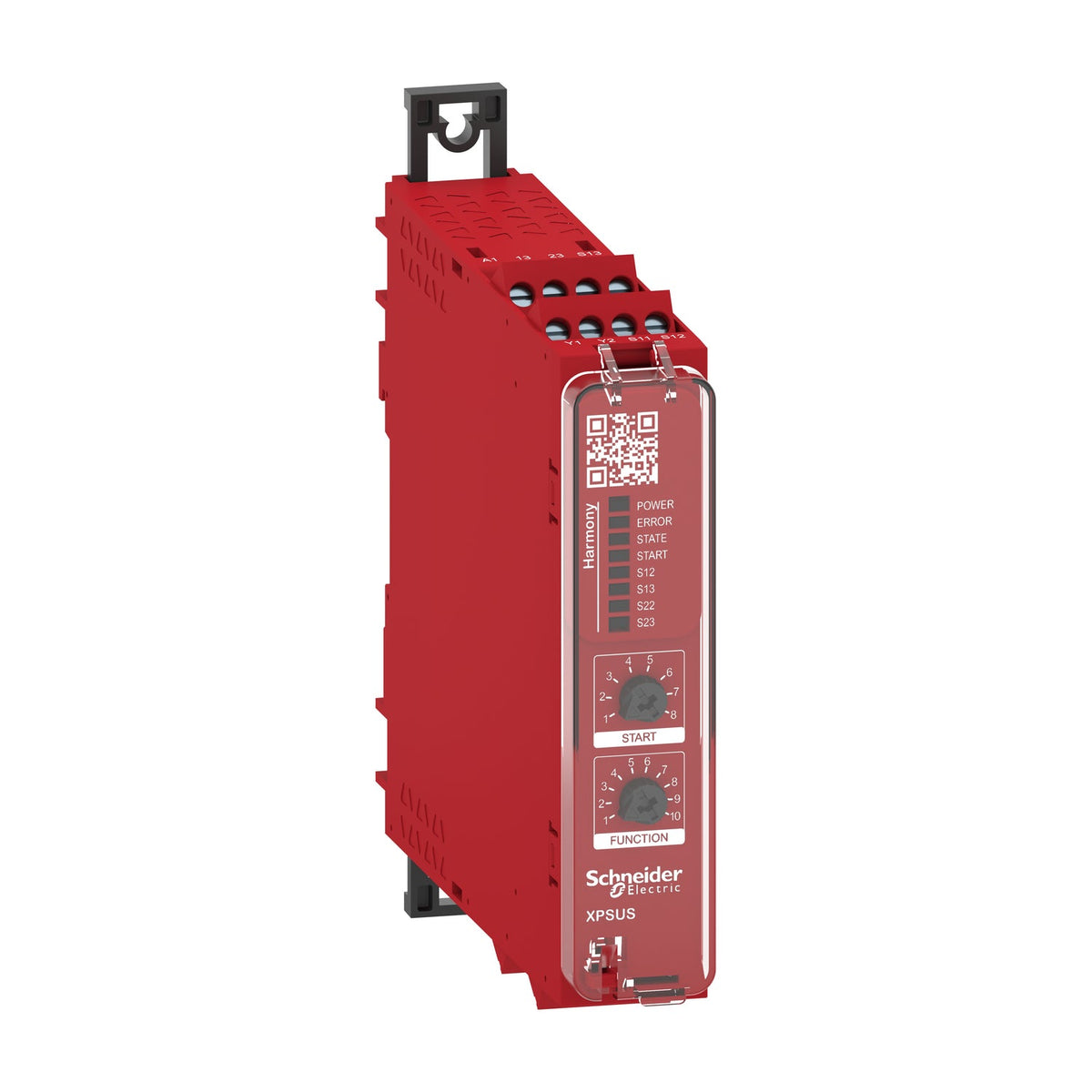

Schneider Electric XPSUS12AP Preventa XPSU Cat. 4 24 V AC/DC Enabling 2 NO Safety Relay

Preventa XPSU universal safety relay, two-hand control / enabling switch, 24 V AC/DC, Cat. 4 / PLe, SIL 3.

Rated current
8 A
Rated operational voltage
24–DC V DC
EAN
3606489601812
Description

About the XPSUS12AP

The Schneider Electric XPSUS12AP is a Preventa XPSU universal safety relay module built on two XPSUAF function sets plus two-hand control and enabling-switch monitoring. Powered at 24 V AC/DC, it provides 2 safety inputs and 2 NO safety outputs, reaching Category 4 / PLe per ISO 13849-1 and SIL 3 per IEC 61508.

Certifications & Standards

  • TÜV
  • cULus
  • IEC 60947-5-1
  • IEC 61508
  • ISO 13849-1
  • IEC 62061

Selection Notes

Choose the XPSUS12AP over the standard XPSUAF13AP when the machine needs two-hand control station monitoring (EN 574 / ISO 13851 Type III A or III C) or enabling-switch hold-to-run circuits — functions the base XPSUAF module does not cover. It still shares the same 24 V AC/DC supply, 2 safety inputs and 8 A thermal current rating as the XPSUAF13AP, so it drops into the same panel footprint. Use the XPSUEP14AP expansion module alongside it if the application needs more than the 2 NO contacts this module provides on its own.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 10

Range of Product Harmony Safety Automation
Product or Component Type Safety module
Safety module name XPSUS
Safety module application For electrical monitoring of two-hand control stations, Monitoring antivalent contacts, For emergency stop, guard and light curtain monitoring, For enabling switch monitoring
Function of module Emergency stop button with 2 NC contacts, Guard monitoring with 1 or 2 limit switches, Monitoring 2 PNP sensors, Magnetic switch monitoring, Light curtain monitoring, RFID switch, Monitoring of electro-sensitive protection equipment (ESPE), Enabling switch monitoring, Proximity sensor monitoring, Monitoring two-hand control station
Safety level Can reach PL e/category 4 ISO 13849-1, Can reach SILCL 3 IEC 62061, Can reach SIL 3 IEC 61508
Safety reliability data MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.13E-09 ISO 13849-1, HFT = 1 IEC 62061, PFHd = 1.13E-09 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, PFHd = 1.13E-09 IEC 61508-1, SFF > 99% IEC 61508-1, Type = B IEC 61508-1
Electrical circuit type NC pair, PNP pair, Antivalent pair, OSSD pair
Connections - terminals Removable screw terminal block, 0.2...2.5 mm² solid or flexible, Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
[Us] Rated Supply Voltage 24 V AC - 15...10 %, 24 V DC - 20...20 %

Complementary 25

Synchronisation time between inputs 0.5 s, 2 s, 4 s
Type of start Automatic/manual/monitored
Power consumption in W 2 W 24 V DC
Power consumption in VA 5.0 VA 24 V AC 50/60 Hz
Input protection type Internal, electronic
safety outputs 2 NO
safety inputs 2 safety input 24 V DC 5 mA
maximum wire resistance 500 Ohm
Input compatibility Normally closed circuit ISO 14119, XC limit switch ISO 14119, Mechanical contact ISO 14119, Normally closed circuit ISO 13850, Antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, Two-hand control EN 574/ISO 13851-III A, Two-hand control EN 574/ISO 13851-III C, 3-wire proximity sensors PNP
[Ie] rated operational current 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact
control outputs 3 on/off configurable pulsed output
Input/output type Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
[Ith] conventional free air thermal current 8 A
Associated fuse rating 10 A gG NO relay output circuit IEC 60947-1
Minimum output current 10 mA relay output
Minimum output voltage 12 V relay output
Maximum response time on input open 20 ms
[Ui] rated insulation voltage 250 V 2)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV II IEC 60947-1
Local signalling LED (green) for power ON, LED (red) for error, LED (yellow) for safety output status, LED (yellow) for start input, LED (yellow) for safety input S12, LED (yellow) for safety input S13, LED (yellow) for safety input S22, LED (yellow) for safety input S23
Mounting Support 35 mm symmetrical DIN rail
Depth 4.7 in (120 mm)
Height 3.9 in (100 mm)
Width 0.9 in (22.5 mm)
Net Weight 0.441 lb(US) (0.200 kg)

Environment 5

Standards IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard
Product Certifications TÜV, cULus
IP degree of protection IP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529
Ambient Air Temperature for Storage -13…185 °F (-25…85 °C)
Relative Humidity 5…95 % non-condensing
Show all 53 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XPSUS12AP
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489601812

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XPSUS12AP

No documents are on file for this part yet.
