- Part number
- XPSUDN33AP
Description
About the XPSUDN33AP
About the XPSUDN33AP

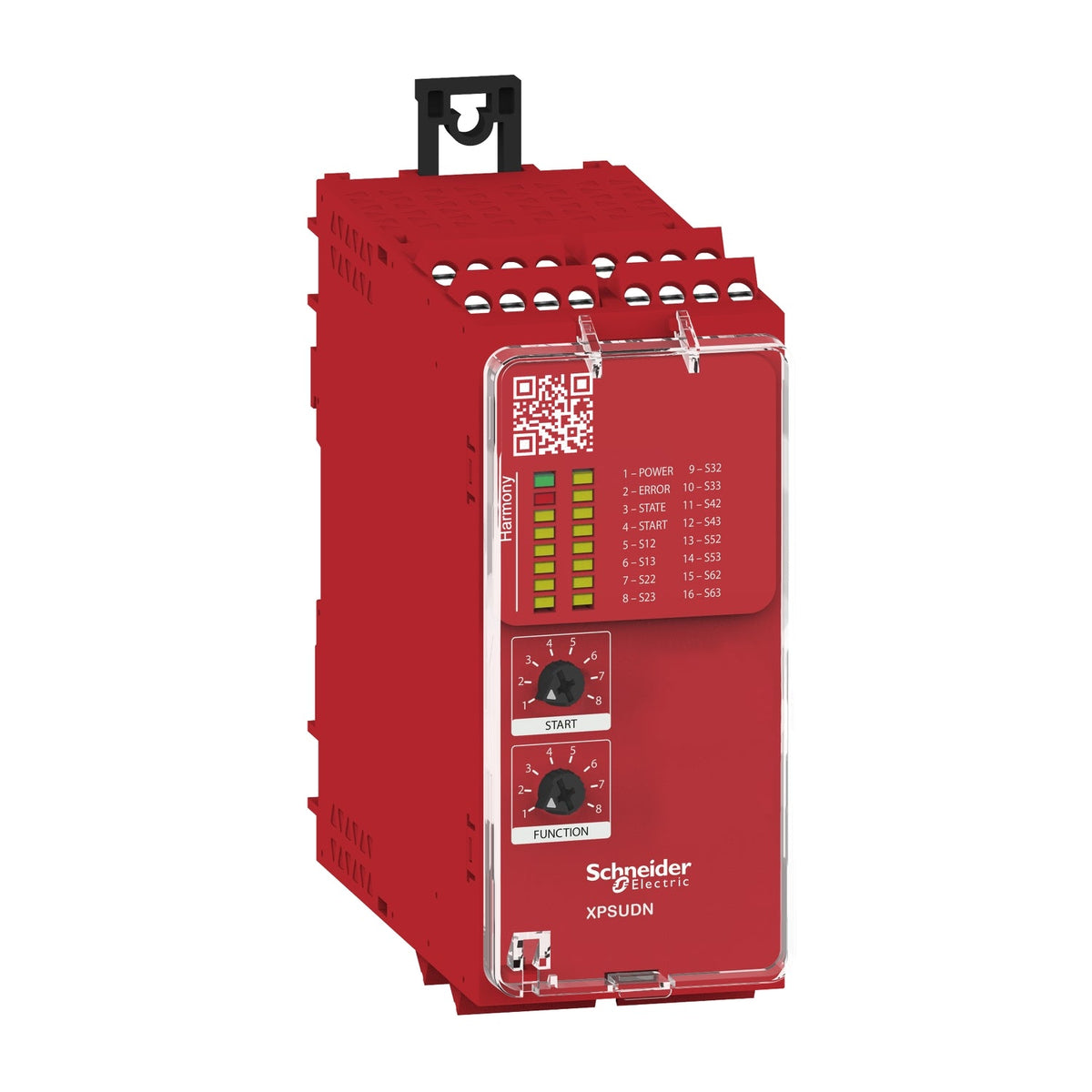

The Schneider Electric XPSUDN33AP is a Preventa XPSU universal safety relay module combining the function of six XPSUAF modules in one device, with 6 safety inputs and 3 NO + 1 NC safety outputs. Powered at 48-240 V AC/DC, it monitors emergency stop, guard switch, magnetic switch, proximity sensor, RFID switch or light-curtain circuits, reaching Category 4 / PLe per ISO 13849-1 and SIL 3 per IEC 61508.
Certifications & Standards
- TÜV
- cULus
- IEC 60947-5-1
- IEC 61508
- ISO 13849-1
- IEC 62061
Selection Notes
Choose the XPSUDN33AP when a panel running a 48-240 V universal control voltage has six independent safety circuits to consolidate — it carries the same 6-input / 3 NO + 1 NC output set as the XPSUDN13AP, scaled to a wider supply range at the cost of a higher 6 W / 25 VA power draw. Use the 24 V XPSUDN13AP instead on fixed-24 V panels where the wider voltage range adds no benefit. Pairing it with the XPSUEP34AP expansion module adds further NO/NC contacts if six is not enough.
Specification
Full specification
Main 10
| Range of Product | Harmony Safety Automation |
|---|---|
| Product or Component Type | Safety module |
| Safety module name | XPSUDN |
| Safety module application | Monitoring antivalent contacts, For emergency stop, guard and light curtain monitoring |
| Function of module | Emergency stop button with 2 NC contacts, Guard monitoring with 1 or 2 limit switches, Monitoring 2 PNP sensors, Magnetic switch monitoring, Light curtain monitoring, RFID switch, Monitoring of electro-sensitive protection equipment (ESPE), Proximity sensor monitoring |
| Safety level | Can reach PL e/category 4 for normally open relay contact ISO 13849-1, Can reach SILCL 3 for normally open relay contact IEC 62061, Can reach SIL 3 for normally open relay contact IEC 61508, Can reach PL c/category 1 for normally closed relay contact ISO 13849-1, Can reach SILCL 1 for normally closed relay contact IEC 62061, Can reach SIL 1 for normally closed relay contact IEC 61508 |
| Safety reliability data | MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.36E-09 ISO 13849-1, HFT = 1 IEC 62061, PFHd = 1.36E-09 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, PFHd = 1.36E-09 IEC 61508-1, SFF > 99% IEC 61508-1, Type = B IEC 61508-1 |
| Electrical circuit type | NC pair, PNP pair, Antivalent pair, OSSD pair |
| Connections - terminals | Removable screw terminal block, 0.2...2.5 mm² solid or flexible, Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] Rated Supply Voltage | 48...240 V AC/DC - 10...10 % |
Complementary 25
| Synchronisation time between inputs | 0.5 s, 2 s, 2.2 s, 4 s |
|---|---|
| Type of start | Automatic/manual/monitored |
| Power consumption in W | 6 W 48 V DC |
| Power consumption in VA | 25 VA 240 V AC 50/60 Hz |
| Input protection type | Internal, electronic |
| safety outputs | 3 NO + 1 NC |
| safety inputs | 6 safety input 24 V DC 5 mA |
| maximum wire resistance | 500 Ohm |
| Input compatibility | Normally closed circuit ISO 14119, XC limit switch ISO 14119, Mechanical contact ISO 14119, Normally closed circuit ISO 13850, Antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact |
| control outputs | 7 on/off configurable pulsed output |
| Input/output type | Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related |
| [Ith] conventional free air thermal current | 16 A |
| Associated fuse rating | 10 A gG NO relay output circuit IEC 60947-1, 4 A gG NC relay output circuit IEC 60947-1 |
| Minimum output current | 10 mA relay output |
| Minimum output voltage | 12 V relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV II IEC 60947-1 |
| Local signalling | LED (green) for power ON, LED (red) for error, LED (yellow) for start, LED (yellow) for safety status, LED (yellow) for safety input S12, LED (yellow) for safety input S13, LED (yellow) for safety input S22, LED (yellow) for safety input S23, LED (yellow) for safety input S32, LED (yellow) for safety input S33, LED (yellow) for safety input S42, LED (yellow) for safety input S43, LED (yellow) for safety input S52, LED (yellow) for safety input S53, LED (yellow) for safety input S62, LED (yellow) for safety input S73 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 4.7 in (120 mm) |
| Height | 3.9 in (100 mm) |
| Width | 1.8 in (45 mm) |
| Net Weight | 0.772 lb(US) (0.350 kg) |
Environment 6
| Standards | IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard |
|---|---|
| Product Certifications | TÜV, cULus |
| IP degree of protection | IP20 terminals)IEC 60947-1, IP40 housing)IEC 60947-1, IP54 mounting area)IEC 60947-1 |
| Ambient air temperature for operation | -13…122 °F (-25…50 °C) at 24 V AC, -13…131 °F (-25…55 °C) at 24 V DC |
| Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) |
| Relative Humidity | 5…95 % non-condensing |
Show all 54 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPSUDN33AP |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489601751 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.35 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
