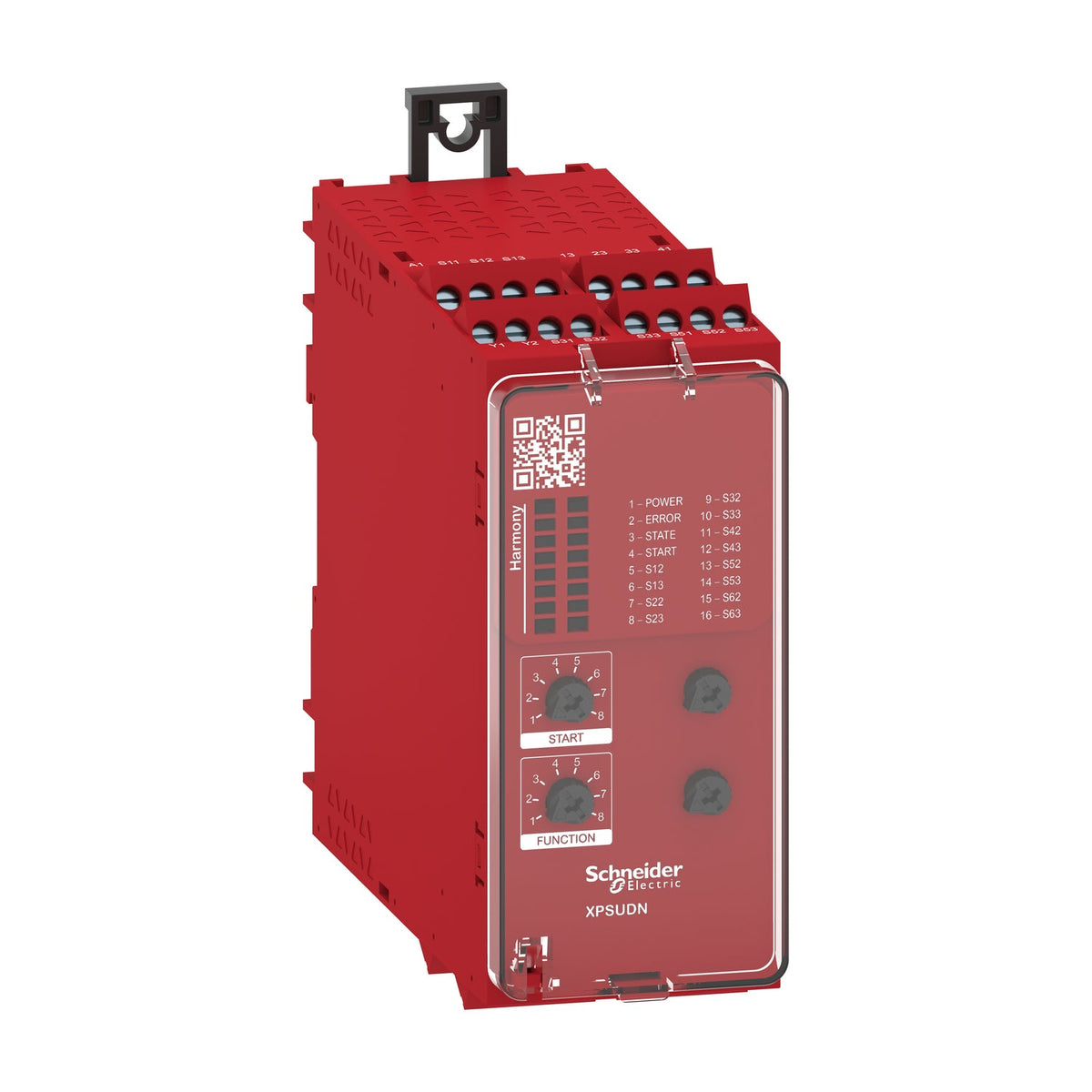

Schneider Electric XPSUDN13AP Preventa XPSU Cat. 4 24 V AC/DC 6-Input Safety Relay

The Schneider Electric XPSUDN13AP is a Preventa XPSU universal safety relay module combining the function of six XPSUAF modules in one device, with 6 safety inputs and 3 NO + 1 NC safety outputs. Powered at 24 V AC/DC, it monitors emergency stop, guard switch, magnetic switch, proximity sensor, RFID switch or light-curtain circuits, reaching Category 4 / PLe per ISO 13849-1 and SIL 3 per IEC 61508.

Technical Specifications

Certifications & Standards

• TÜV
• cULus
• IEC 60947-5-1
• IEC 61508
• ISO 13849-1
• IEC 62061

Selection Notes

Choose the XPSUDN13AP when a machine has six independent safety circuits (E-stops, guard switches, light curtains) that would otherwise need six separate XPSUAF13AP modules — it consolidates them into one 45 mm wide device with 3 NO + 1 NC outputs covering the combined safety chain. The 24 V AC/DC supply matches the XPSUAF13AP and XPSUS12AP for consistent voltage selection across a control panel. Use the 48-240 V XPSUDN33AP instead on panels running a higher universal control voltage.
