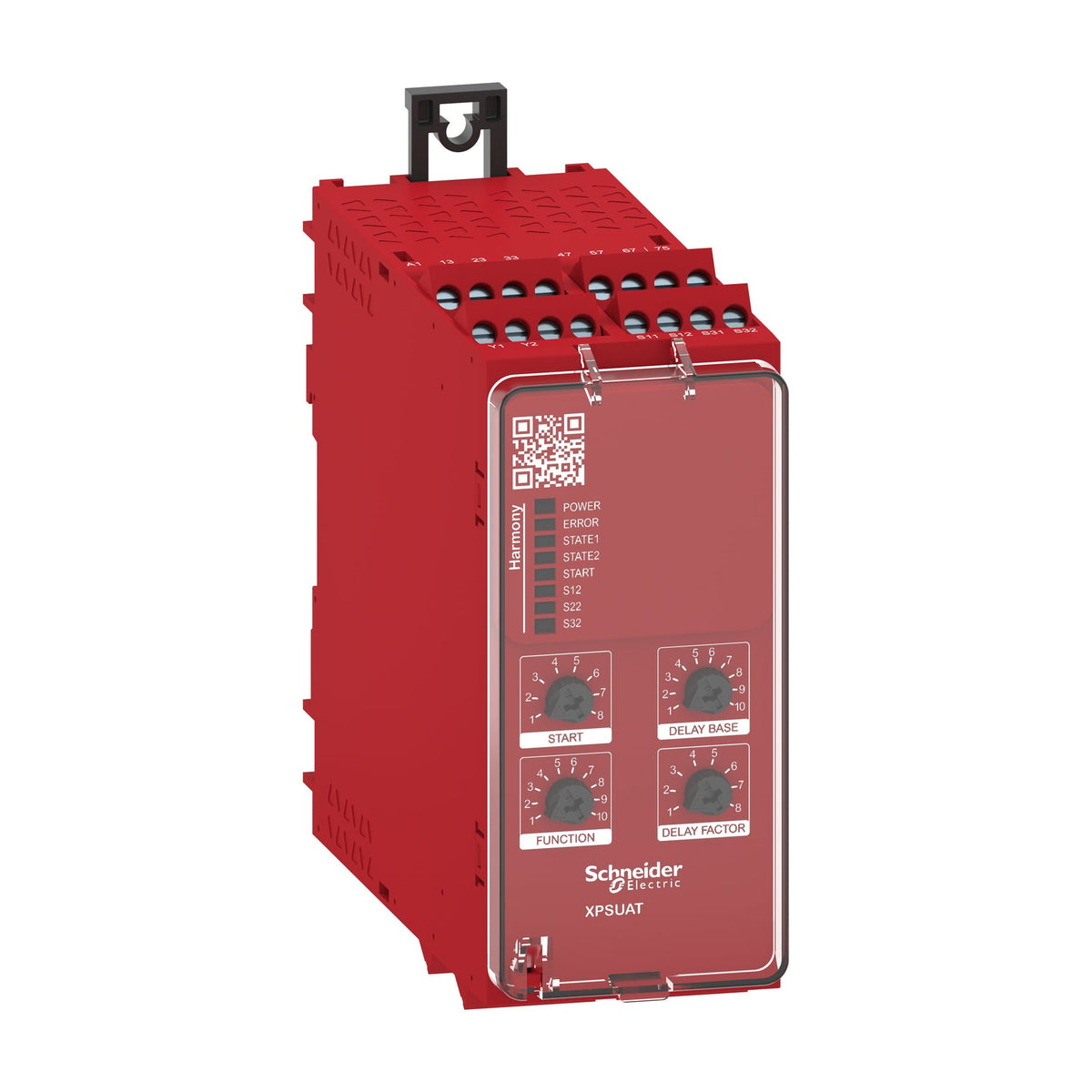

Schneider Electric XPSUAT13A3AP Preventa XPSU Cat. 4 24 V AC/DC Delayed Output Safety Relay

Preventa XPSU universal safety relay with delayed outputs, 24 V AC/DC, 0-900 s, Cat. 4 / PLe, SIL 3.

Rated current
16 A
Rated operational voltage
24–DC V DC
EAN
3606489601690
Description

About the XPSUAT13A3AP

The Schneider Electric XPSUAT13A3AP is a Preventa XPSU universal safety relay module built on the XPSUAF function set with an added delayed-output stage (0-900 s), for monitoring E-stop, guard, light-curtain, sensing-mat/edge, PNP/NPN sensor or RFID inputs. Powered at 24 V AC/DC, it provides 3 safety inputs and 3 NO immediate + 3 NO configurable + 1 NC configurable safety outputs, reaching Category 4 / PLe per ISO 13849-1.

Certifications & Standards

  • TÜV
  • cULus
  • IEC 60947-5-1
  • IEC 61508
  • ISO 13849-1
  • IEC 62061

Selection Notes

Choose the XPSUAT13A3AP over the XPSUAF13AP when the safety function needs a time-delayed stop rather than an immediate one — its 0-900 s configurable off-delay on the second output group lets a machine coast to a controlled stop (for example, decelerating a drive) before the delayed contacts open, while the 3 NO immediate outputs still cut power instantly for the primary safety chain. The extra negative-logic safety input adds support for sensing mats and edges that the base XPSUAF function set does not monitor. Use the 48-240 V XPSUAT33A3AP instead when the control circuit voltage exceeds the 24 V range.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 10

Range of Product Harmony Safety Automation
Product or Component Type Safety module
Safety module name XPSUAT
Safety module application Monitoring antivalent contacts, For emergency stop, guard and light curtain monitoring, Monitoring of pressure-sensitive 4-wire protective devices
Function of module Emergency stop button with 2 NC contacts, Guard monitoring with 1 or 2 limit switches, Monitoring 2 PNP sensors, Magnetic switch monitoring, Light curtain monitoring, RFID switch, Monitoring of electro-sensitive protection equipment (ESPE), Sensing mat/edges, Proximity sensor monitoring, Monitoring 1 PNP + 1 NPN sensor
Safety level Can reach PL e/category 4 for normally open relay contact ISO 13849-1, Can reach SILCL 3 for normally open relay contact IEC 62061, Can reach SIL 3 for normally open relay contact IEC 61508, Can reach PL c/category 1 for normally closed relay contact ISO 13849-1, Can reach SILCL 1 for normally closed relay contact IEC 62061, Can reach SIL 1 for normally closed relay contact IEC 61508
Safety reliability data MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 0.94E-09 for SS0 ISO 13849-1, PFHd = 0.95E-09 for SS1 ISO 13849-1, HFT = 1 IEC 62061, PFHd = 0.94E-09 for SS0 IEC 62061, PFHd = 0.95E-09 for SS1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, PFHd = 0.94E-09 for SS0 IEC 61508-1, PFHd = 0.95E-09 for SS1 IEC 61508-1, SFF > 99% IEC 61508-1, Type = B IEC 61508-1
Electrical circuit type NC pair, PNP pair, Antivalent pair, OSSD pair
Connections - terminals Removable screw terminal block, 0.2...2.5 mm² solid or flexible, Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
[Us] Rated Supply Voltage 24 V AC - 15...10 %, 24 V DC - 20...20 %

Complementary 25

Synchronisation time between inputs 0.5 s, 2 s, 4 s
Type of start Automatic/manual/monitored
Power consumption in W 3 W 24 V DC
Power consumption in VA 6.5 VA 24 V AC 50/60 Hz
Input protection type Internal, electronic
safety outputs 1 NC configurable, 3 NO configurable, 3 NO immediate
safety inputs 2 positive safety input 24 V DC 8 mA, 1 negative safety input
maximum wire resistance 500 Ohm
Time delay range 0...900 s off
Input compatibility Normally closed circuit ISO 14119, XC limit switch ISO 14119, Mechanical contact ISO 14119, Normally closed circuit ISO 13850, Antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
[Ie] rated operational current 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact
control outputs 4 on/off configurable pulsed output
Input/output type Semiconductor output 24 V DC, 20 mA Z2, not safety-related, Pulsed output for diagnostics 24 V DC, 20 mA Z1, not safety-related
[Ith] conventional free air thermal current 16 A
Associated fuse rating 10 A gG NO relay output circuit IEC 60947-1
Minimum output current 20 mA relay output
Minimum output voltage 24 V relay output
Maximum response time on input open 20 ms
[Ui] rated insulation voltage 250 V 2)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV II IEC 60947-1
Mounting Support 35 mm symmetrical DIN rail
Depth 4.7 in (120 mm)
Height 3.9 in (100 mm)
Width 1.8 in (45 mm)
Net Weight 0.772 lb(US) (0.350 kg)

Environment 5

Standards IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard
Product Certifications TÜV, cULus
IP degree of protection IP54 mounting area)IEC 60947-1, IP40 housing)IEC 60947-1, IP20 terminals)IEC 60947-1
Ambient Air Temperature for Storage -13…185 °F (-25…85 °C)
Relative Humidity 5…95 % non-condensing
Show all 53 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XPSUAT13A3AP
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489601690

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.35 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
