- Part number
- XPSUAF13AP
Description
About the XPSUAF13AP
About the XPSUAF13AP

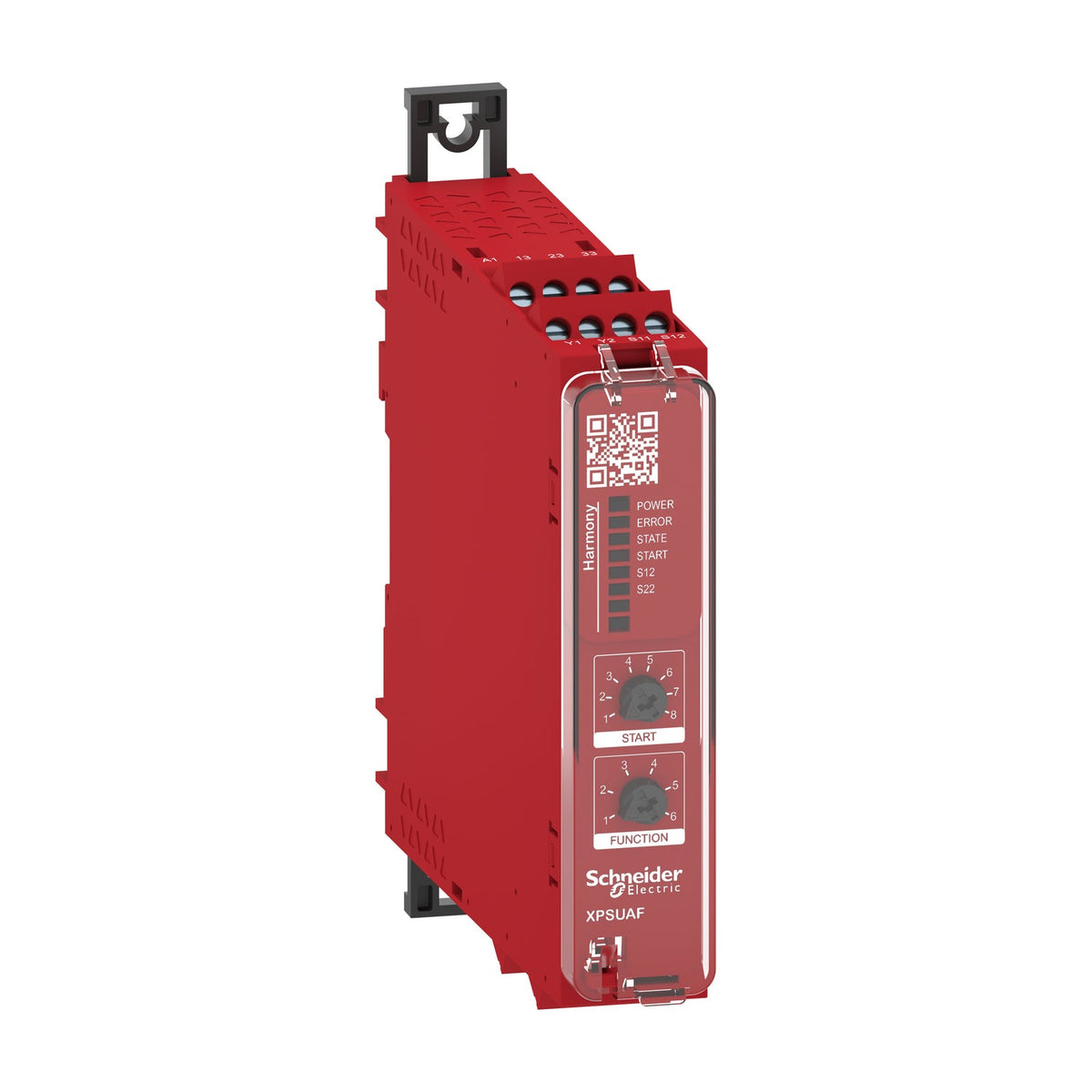

The Schneider Electric XPSUAF13AP is a Preventa XPSU universal safety relay module that monitors emergency stop, guard switch, magnetic switch, proximity sensor, RFID switch or light-curtain inputs. Powered at 24 V AC/DC, it provides 2 safety inputs and 3 NO safety outputs, reaching Category 4 / PLe per ISO 13849-1 and SIL 3 per IEC 61508.
Certifications & Standards
- TÜV
- cULus
- IEC 60947-5-1
- IEC 61508
- ISO 13849-1
- IEC 62061
Selection Notes
Choose the XPSUAF13AP for a 24 V AC/DC control circuit where a single compact module (22.5 mm wide) needs to cover one safety function at a time — its 2 safety inputs and 3 NO outputs handle an E-stop, a guard switch, a light curtain or an RFID/magnetic switch via rotary function selection, without programming. Against the XPSUAF33AP, pick this 24 V variant when the machine's control voltage is 24 V rather than the 48-240 V universal range. If more than two safety circuits need monitoring from one device, the 6-input XPSUDN13AP covers the same 24 V supply class with six times the input count.
Specification
Full specification
Main 10
| Range of Product | Harmony Safety Automation |
|---|---|
| Product or Component Type | Safety module |
| Safety module name | XPSUAF |
| Safety module application | Monitoring antivalent contacts, For emergency stop, guard and light curtain monitoring |
| Function of module | Emergency stop button with 2 NC contacts, Guard monitoring with 1 or 2 limit switches, Monitoring 2 PNP sensors, Magnetic switch monitoring, Light curtain monitoring, RFID switch, Monitoring of electro-sensitive protection equipment (ESPE), Proximity sensor monitoring |
| Safety level | Can reach PL e/category 4 ISO 13849-1, Can reach SILCL 3 IEC 62061, Can reach SIL 3 IEC 61508 |
| Safety reliability data | MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.13E-09 ISO 13849-1, HFT = 1 IEC 62061, PFHd = 1.13E-09 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, PFHd = 1.13E-09 IEC 61508-1, SFF > 99% IEC 61508-1, Type = B IEC 61508-1 |
| Electrical circuit type | NC pair, PNP pair, Antivalent pair, OSSD pair |
| Connections - terminals | Removable screw terminal block, 0.2...2.5 mm² solid or flexible, Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] Rated Supply Voltage | 24 V AC - 15...10 %, 24 V DC - 20...20 % |
Complementary 25
| Synchronisation time between inputs | 0.5 s, 2 s, 4 s |
|---|---|
| Type of start | Automatic/manual/monitored |
| Power consumption in W | 2.0 W 24 V DC |
| Power consumption in VA | 5.0 VA 24 V AC 50/60 Hz |
| Input protection type | Internal, electronic |
| safety outputs | 3 NO |
| safety inputs | 2 safety input 24 V DC 5 mA |
| maximum wire resistance | 500 Ohm |
| Input compatibility | Normally closed circuit ISO 14119, XC limit switch ISO 14119, Mechanical contact ISO 14119, Normally closed circuit ISO 13850, Antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact |
| control outputs | 3 on/off configurable pulsed output |
| Input/output type | Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related |
| [Ith] conventional free air thermal current | 8 A |
| Associated fuse rating | 10 A gG NO relay output circuit IEC 60947-1 |
| Minimum output current | 10 mA relay output |
| Minimum output voltage | 15 V relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV II IEC 60947-1 |
| Local signalling | LED (green) for power ON, LED (red) for error, LED (yellow) for start, LED (yellow) for safety status, LED (yellow) for safety input S12, LED (yellow) for safety input S22 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 4.7 in (120 mm) |
| Height | 3.9 in (100 mm) |
| Width | 0.9 in (22.5 mm) |
| Net Weight | 0.441 lb(US) (0.200 kg) |
Environment 5
| Standards | IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard |
|---|---|
| Product Certifications | TÜV, cULus |
| IP degree of protection | IP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529 |
| Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) |
| Relative Humidity | 5…95 % non-condensing |
Show all 53 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPSUAF13AP |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489601614 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XPSUAF13AP
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus
- IEC 60947-5-1
- IEC 61508-1 functional safety standard
- IEC 61508-2 functional safety standard
- IEC 61508-3 functional safety standard
- IEC 61508-4 functional safety standard
- IEC 61508-5 functional safety standard
- IEC 61508-6 functional safety standard
- IEC 61508-7 functional safety standard
- ISO 13849-1 functional safety standard
- IEC 62061 functional safety standard
Quick answers
Questions about the XPSUAF13AP
What is the rated current of XPSUAF13AP?
The rated current of XPSUAF13AP is 8 A.
Which supply voltage is XPSUAF13AP rated for?
The rated operational voltage of XPSUAF13AP is 24–DC V DC.
What is the HS code of XPSUAF13AP for customs?
The tariff (HS) code on file for XPSUAF13AP is 853641.
What is the EAN of XPSUAF13AP?
The EAN (GTIN) of XPSUAF13AP is 3606489601614.
Where does XPSUAF13AP ship from, and how fast?
XPSUAF13AP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
