- Part number
- XPSBAC14AP
Description
About the XPSBAC14AP
About the XPSBAC14AP

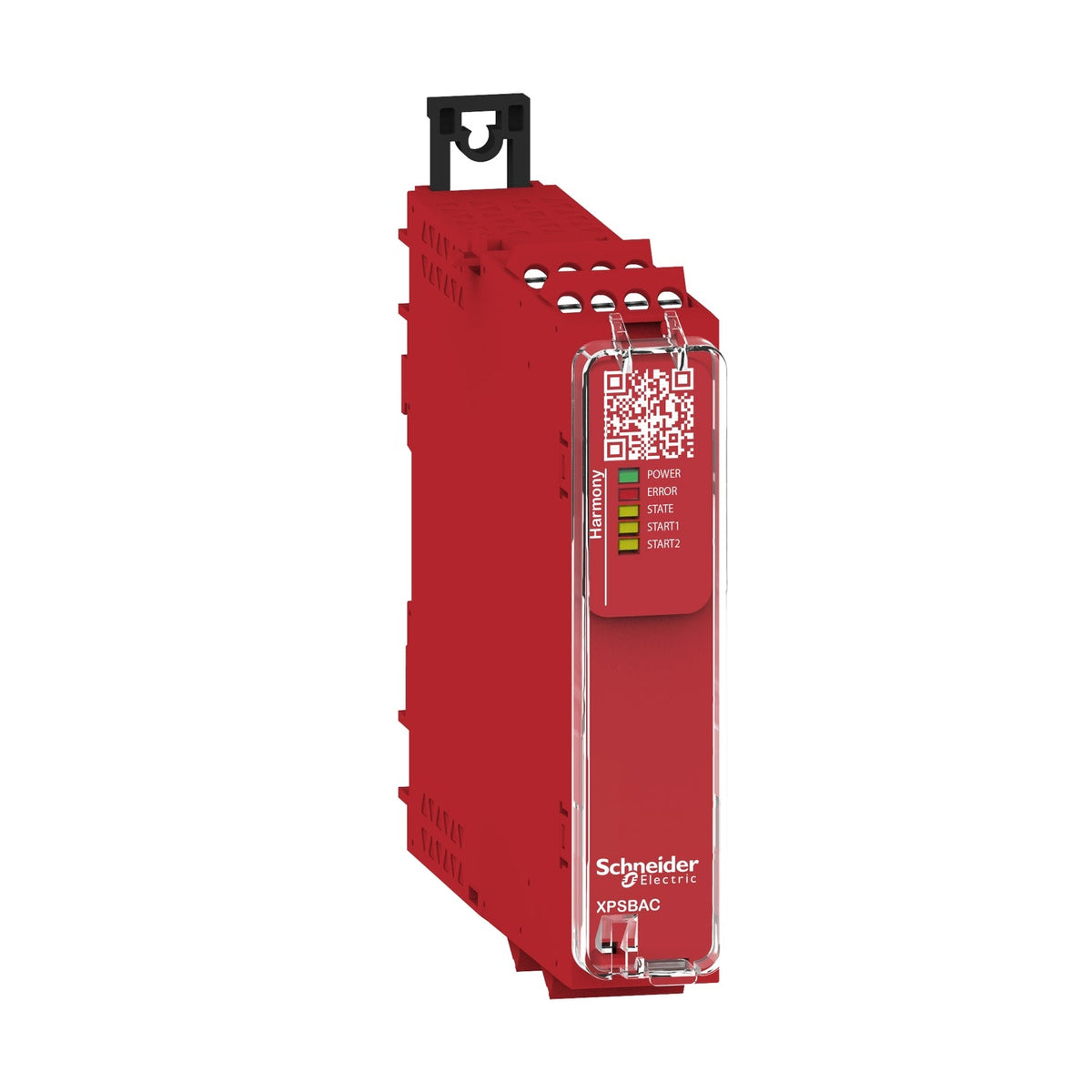

The Schneider Electric XPSBAC14AP is a Preventa XPS safety relay module powered directly from its 24 V AC/DC supply terminals, with no separate reset input. It monitors emergency-stop buttons or guard switches and delivers 4 NO safety outputs plus 1 NC diagnostic output, reaching PL e / Category 4 per ISO 13849-1 and SIL 3 per IEC 61508.
Certifications & Standards
- TÜV
- cULus
- IEC 60947-5-1
- IEC 61508-1
- IEC 61508-2
- IEC 61508-3
- IEC 61508-4
- IEC 61508-5
- IEC 61508-6
- IEC 61508-7
- ISO 13849-1
- IEC 62061
Selection Notes
XPSBAC14AP powers directly from its 24 V AC/DC supply terminals rather than through a separate start/reset input, which simplifies wiring on machines that already run 24 V control circuits. Its 4 NO + 1 NC output set and PL e / Category 4 rating make it a single-function e-stop or guard-monitoring relay suitable as the safety element ahead of a contactor-based motor stop circuit. Choose the XPSBAC34AP instead when the available supply is 48-240 V AC/DC rather than 24 V.
Applications
XPSBAC14AP is suited to emergency-stop and guard-monitoring circuits in Food and Beverage, Hoisting, Material Handling, Material Working, and Packaging equipment, wherever 24 V control power is already present on the machine.
Specification
Full specification
Main 10
| Range of Product | Harmony Safety Automation |
|---|---|
| Product or Component Type | Safety module |
| Safety module name | XPSBAC |
| Safety module application | For emergency stop and protective guard applications |
| Function of module | Emergency stop button with 2 NC contacts, Guard monitoring with 1 or 2 limit switches |
| Safety level | Can reach PL e/category 4 for normally open relay contact ISO 13849-1, Can reach SILCL 3 for normally open relay contact IEC 62061, Can reach SIL 3 for normally open relay contact IEC 61508, Can reach PL c/category 1 for normally closed relay contact ISO 13849-1, Can reach SILCL 1 for normally closed relay contact IEC 62061, Can reach SIL 1 for normally closed relay contact IEC 61508 |
| Safety reliability data | MTTFd > 30 years for normally open relay contact ISO 13849-1, Dcavg >= 99 % for normally open relay contact ISO 13849-1, PFHd = 0.95E-09 for normally open relay contact ISO 13849-1, HFT = 1 for normally open relay contact IEC 62061, PFHd = 0.95E-09 for normally open relay contact IEC 62061, SFF > 99% for normally open relay contact IEC 62061, HFT = 1 for normally open relay contact IEC 61508-1, PFHd = 0.95E-09 for normally open relay contact IEC 61508-1, SFF > 99% for normally open relay contact IEC 61508-1, Type = B for normally open relay contact IEC 61508-1, MTTFd > 30 years for normally closed relay contact ISO 13849-1, DC > 60 % for normally closed relay contact ISO 13849-1, PFHd = 0.95E-09 for normally closed relay contact ISO 13849-1, HFT=0 for normally closed relay contact IEC 62061, PFHd = 0.95E-09 for normally closed relay contact IEC 62061, SFF > 60% for normally closed relay contact IEC 62061, HFT=0 for normally closed relay contact IEC 61508-1, PFHd = 0.95E-09 for normally closed relay contact IEC 61508-1, SFF > 60% for normally closed relay contact IEC 61508-1, Type = B for normally closed relay contact IEC 61508-1 |
| Electrical circuit type | NC pair |
| Connections - terminals | Removable screw terminal block, 0.2...2.5 mm² solid or flexible, Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] Rated Supply Voltage | 24 V AC - 15...10 %, 24 V DC - 20...20 % |
Complementary 24
| Synchronisation time between inputs | Unlimited |
|---|---|
| Type of start | Automatic/manual/monitored |
| Power consumption in W | 1.5 W 24 V DC |
| Power consumption in VA | 3.5 VA 24 V AC 50/60 Hz |
| Input protection type | Internal, electronic |
| safety outputs | 4 NO + 1 NC |
| safety inputs | 0 |
| Input compatibility | Normally closed circuit ISO 14119, XC limit switch ISO 14119, Mechanical contact ISO 14119, Normally closed circuit ISO 13850 |
| input terminal | Power supply |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact |
| control outputs | 0 |
| [Ith] conventional free air thermal current | 6 A |
| Associated fuse rating | 10 A gG NO relay output circuit IEC 60947-1 |
| Minimum output current | 10 mA relay output |
| Minimum output voltage | 5 V relay output |
| Response time | 150 ms at 24 V AC, 80 ms at 24 V DC |
| [Ui] rated insulation voltage | 300 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV II IEC 60947-1 |
| Local signalling | LED green power power ON, LED red error error, LED yellow state status, LED yellow start1 start input, LED yellow start2 start input |
| Mounting Support | 35 mm symmetrical DIN rail |
| Depth | 4.7 in (120 mm) |
| Height | 3.9 in (100 mm) |
| Width | 0.9 in (22.5 mm) |
| Net Weight | 0.441 lb(US) (0.200 kg) |
Environment 5
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
|---|---|
| Standards | IEC 60947-5-1, IEC 61508-1 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-7 functional safety standard, ISO 13849-1 functional safety standard, IEC 62061 functional safety standard |
| Product Certifications | TÜV, cULus |
| IP degree of protection | IP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529 |
| Relative Humidity | 5…95 % non-condensing |
Show all 52 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPSBAC14AP |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482034013 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XPSBAC14AP
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus
- IEC 60947-5-1
- IEC 61508-1 functional safety standard
- IEC 61508-2 functional safety standard
- IEC 61508-3 functional safety standard
- IEC 61508-4 functional safety standard
- IEC 61508-5 functional safety standard
- IEC 61508-6 functional safety standard
- IEC 61508-7 functional safety standard
- ISO 13849-1 functional safety standard
- IEC 62061 functional safety standard
Quick answers
Questions about the XPSBAC14AP
What is the rated current of XPSBAC14AP?
The rated current of XPSBAC14AP is 6 A.
Which supply voltage is XPSBAC14AP rated for?
The rated operational voltage of XPSBAC14AP is 24–DC V DC.
What is the HS code of XPSBAC14AP for customs?
The tariff (HS) code on file for XPSBAC14AP is 853641.
What is the EAN of XPSBAC14AP?
The EAN (GTIN) of XPSBAC14AP is 3606482034013.
Where does XPSBAC14AP ship from, and how fast?
XPSBAC14AP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
