- Part number
- VCFN20GE
- Model no
- VCFN
Description
About the VCFN
About the VCFN

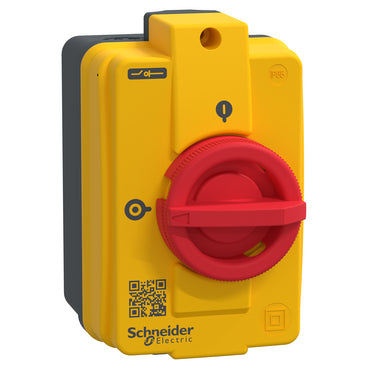

The Schneider Electric VCFN20GE is a fully enclosed 3-pole TeSys Mini-VARIO switch-disconnector rated 16 A, combining a VN20 switch body, a red padlockable rotary handle and a yellow cover in an IP55 enclosure for emergency-stop switching up to 5.5 kW at 400 V AC-23. Cabling runs through two glands on the top and bottom of the enclosure.
Certifications & Standards
- IEC 60947-4-1
Selection Notes
The VCFN20GE shares its 131 x 82.5 x 106 mm enclosure and IP55 rating with the VCFN12GE, differing only in the VN20 switch body's higher current and power rating — pick it once the motor exceeds 4 kW at 400 V. As a self-contained enclosure it does not require a separate panel door cutout, unlike the VCDN20 which mounts directly on one.
Specification
Full specification
Main 10
| Range | TeSys |
|---|---|
| Product name | TeSys Mini-VARIO |
| Device short name | VCFN |
| Product or Component Type | Emergency stop switch disconnector |
| Performance level | Standard |
| Poles description | 3P |
| Control Type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 0.2…0.3 in (4…8 mm) |
Complementary 23
| Marking | 0 - 1 |
|---|---|
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 16 A |
| [Ie] rated operational current | 11 A AC-23A)400 V |
| Rated operational power in W | 5.5 kW 400 V AC-23), 4 kW 400 V AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I Rms) | 200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 0.5 kA 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 140 A 400 V 1 s |
| Rated conditional short-circuit current | 6 kA 400 V 20 A aM, 6 kA 400 V 20 A gG |
| Breaking capacity | 200 A 400 V AC-21A), 200 A 400 V AC-22A), 200 A 400 V AC-23A) |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles DC-1...5, 50000 cycles AC-21 |
| Suitability for isolation | Yes |
| Connections - terminals | Control circuit connector 0.006 in² (4 mm²) flexible with cable end, Control circuit connector 0.006 in² (4 mm²) solid |
| Tightening torque | Control circuit 6.2 lbf.in (0.7 N.m) connector |
| Fire resistance | 1760 °F (960 °C) IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 5.2 in (131 mm) |
| Width | 3.2 in (82.5 mm) |
| Depth | 4.2 in (106 mm) |
| Net Weight | 0.930 lb(US) (0.422 kg) |
Environment 4
| Standards | IEC 60947-4-1 |
|---|---|
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6, Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
Show all 51 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | VCFN20GE |
|---|---|
| Type designation | VCFN |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110759990 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.422 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for VCFN20GE
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60947-4-1
Quick answers
Questions about the VCFN
What is the rated current of VCFN?
The rated current of VCFN is 16 A.
Which supply voltage is VCFN rated for?
The rated operational voltage of VCFN is 690 V AC.
What is the HS code of VCFN for customs?
The tariff (HS) code on file for VCFN is 853650.
What is the EAN of VCFN?
The EAN (GTIN) of VCFN is 3389110759990.
Where does VCFN ship from, and how fast?
VCFN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
