Schneider Electric C160S4NAFM ComPacT NS1600NA 4P 1600 A 690 V Fixed Manual Switch Disconnector

% $-2,637.20
Schneider Electric C160S4NAFM NS1600NA switch-disconnector – 4P 1600A fixed manual
Schneider Electric C160S4NAFM NS1600NA switch-disconnector – 4P 1600A fixed manual

Schneider Electric C160S4NAFM ComPacT NS1600NA 4P 1600 A 690 V Fixed Manual Switch Disconnector

Brand: Schneider Electric
Reference No: C160S4NAFM
Catalog No: C160S4NAFM
Tariff Code (HS): 853650
Rated Current: 1600 A
Rated Voltage: 690 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,637.20

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

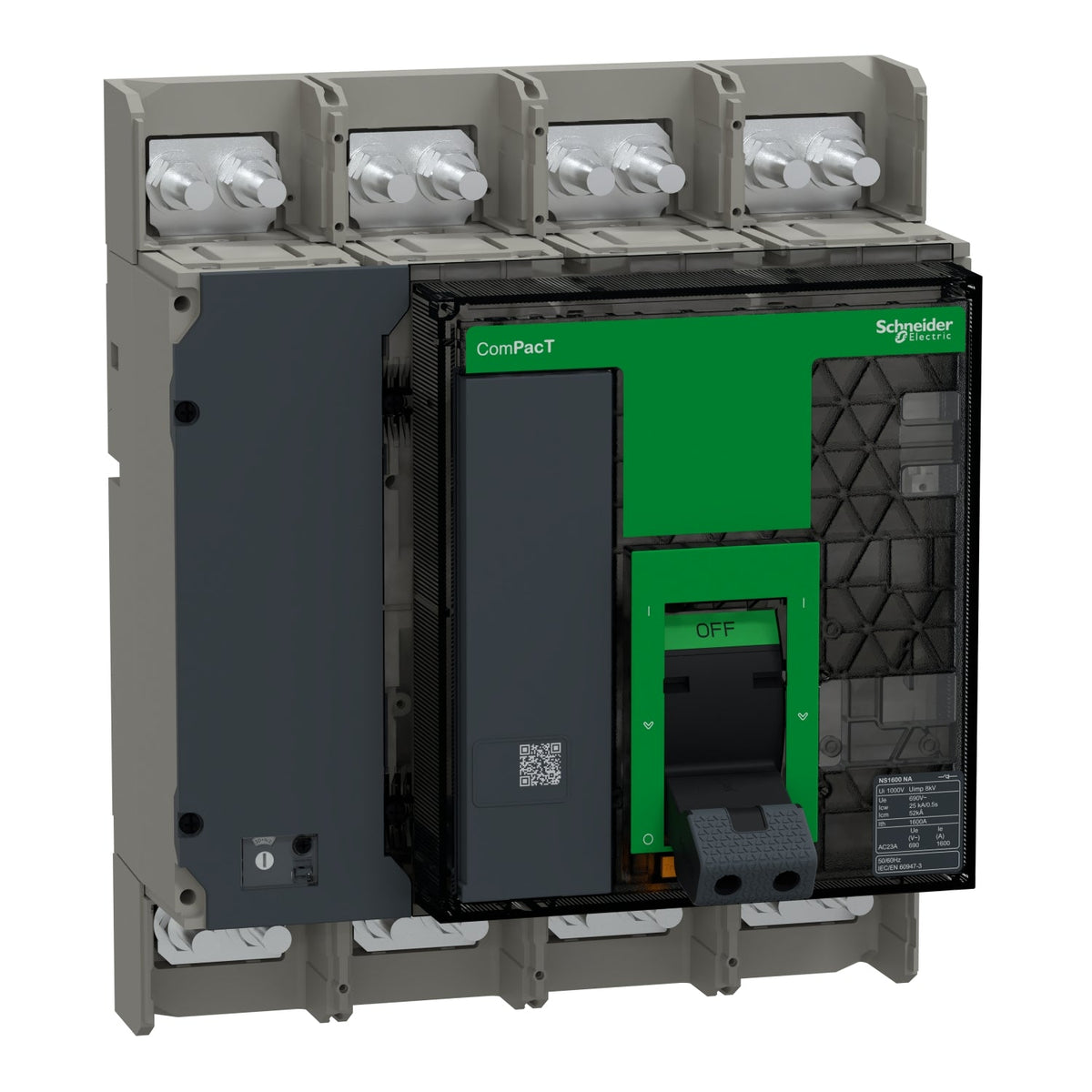

The C160S4NAFM is a 4-pole Schneider Electric ComPacT NS1600NA switch-disconnector rated for an operational current (Ie) of 1600 A (AC-23A) at 690 V AC. It is a fixed, front-connected, manually-operated device that switches the neutral alongside the three phases to control and isolate LV distribution circuits ahead of downstream protection.

Technical Specifications

SKU / Reference C160S4NAFM
Brand Schneider Electric
Range ComPacT NS new generation
Series NS1600NA
Device application Distribution
Poles 4P
[Ie] Rated operational current 1600 A (AC-23A), 220/240–660/690 V AC 50/60 Hz
[Ue] Rated operational voltage 690 V AC 50/60 Hz, conforming to IEC 60947-3
[Ith] Conventional free-air thermal current 1600 A at 60 °C
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icw] Rated short-time withstand current 25 kA during 0.5 s, 4 kA during 20 s
[Icm] Rated short-circuit making capacity 52 kA at 690 V AC
Suitability for isolation Yes, conforming to IEC 60947-3
Contact position indicator Yes
Visible break No
Control type Manually operated
Mounting mode Fixed
Connection Front upside, front downside
Connection pitch 70 mm
Dimensions (W x H x D) 327 x 280 x 147 mm
Net weight 18 kg
IP / IK degree IP40 / IK07 (EN 50102)
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • IECEE CB Scheme
  • IEC 60947-3

Selection Notes

The fourth pole on the C160S4NAFM lets it switch the neutral conductor together with the three phases — useful where the installation design requires a full 4-pole isolation point rather than the 3-pole C160S3NAFM. Like the 3-pole version it has no Icu rating of its own; its 25 kA/0.5 s short-time withstand lets it hold through a fault while a coordinated breaker clears it. The wider 280 mm frame over the 3-pole unit's 210 mm reflects the extra pole.

Technical Details

Short Description
Schneider Electric C160S4NAFM ComPacT NS1600NA 4P switch-disconnector, 1600 A at 690 V AC.
Rated Current (Ampere)
1600 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C160S4NAFM
Delivery Date (Days)
30 days
Model Number
NS1600NA
Tariff Code
853650
