Schneider Electric C164160D1S ComPacT NSX160NA DC PV 4P 160 A 1000 V DC Fixed Switch Disconnector

% $-531.88

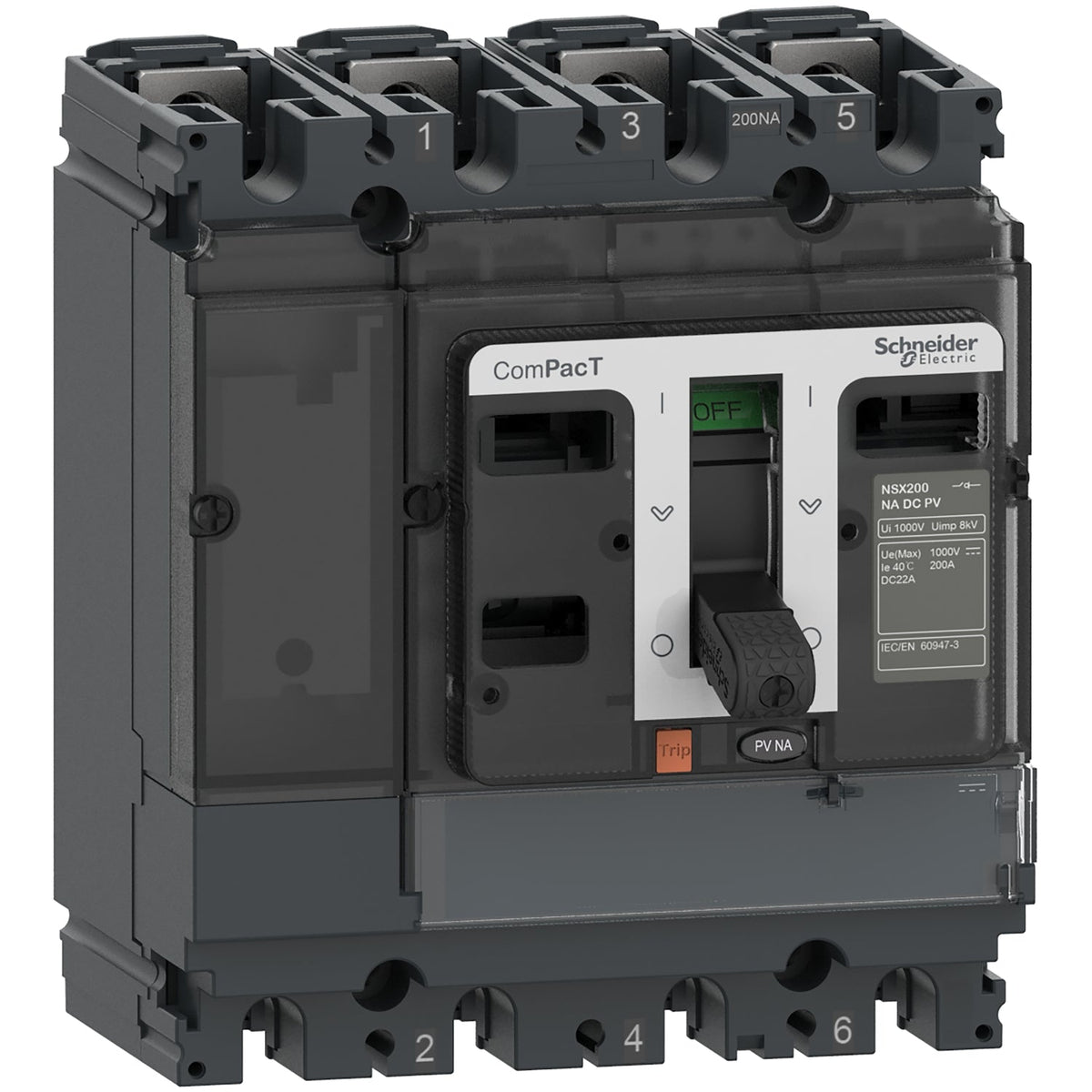

Schneider Electric C164160D1S NSX160NA DC PV switch-disconnector – 4P 160A 1000V DC
Schneider Electric C164160D1S NSX160NA DC PV switch-disconnector – 4P 160A 1000V DC

Schneider Electric C164160D1S ComPacT NSX160NA DC PV 4P 160 A 1000 V DC Fixed Switch Disconnector

Brand: Schneider Electric
Reference No: C164160D1S
Catalog No: C164160D1S
Tariff Code (HS): 853650
Rated Current: 160 A
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$531.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C164160D1S is a 4-pole Schneider Electric ComPacT NSX160NA DC PV switch-disconnector rated for 160 A (DC-22A) at 1000 V DC. Built on the standard ComPacT NSX body, it isolates photovoltaic strings or DC distribution circuits ahead of protection, without an Icu breaking-capacity rating of its own.

Technical Specifications

SKU / Reference C164160D1S
Brand Schneider Electric
Range ComPacT NSX DC PV
Series NSX160NA DC PV
Device application Photovoltaic
Poles 4P
[Ie] Rated operational current 160 A (DC-22A) at 1000 V DC
[Ue] Rated operational voltage 1000 V DC
[Ith] Conventional free-air thermal current 120 A at 65 °C
[Ui] Rated insulation voltage 1000 V DC
[Uimp] Rated impulse withstand voltage 8 kV
[Icw] Rated short-time withstand current 2.5 kA during 1 s
[Icm] Rated short-circuit making capacity 2.5 kA (switch-disconnector alone)
Suitability for isolation Yes, conforming to EN/IEC 60947-3
Utilisation category DC-22A
Contact position indicator Yes
Visible break No
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside
Connection pitch 35 mm
Dimensions (W x H x D) 140 x 161 x 86 mm
Net weight 2.8 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The C164160D1S's DC-22A rating means it is built to switch 160 A under load repeatedly at 1000 V DC — the duty a PV string isolator sees at every maintenance cycle, unlike a general-purpose DC-20 disconnector meant only for no-load isolation. Its 2.5 kA/1 s short-time withstand covers brief fault current while the upstream DC protection clears it. Step up to the C164200D1S 200 A frame when the array's string current exceeds 160 A.

Technical Details

Short Description
Schneider Electric C164160D1S ComPacT NSX160NA DC PV 4P switch-disconnector, 160 A at 1000 V DC.
Rated Current (Ampere)
160 A
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C164160D1S
Delivery Date (Days)
30 days
Model Number
NSX160NA DC PV
Tariff Code
853650
