Part number
C254200D1S
Model no
NSX200NA DC PV
$624.91 On request Dispatch — · From TürkiyeGet a Quote

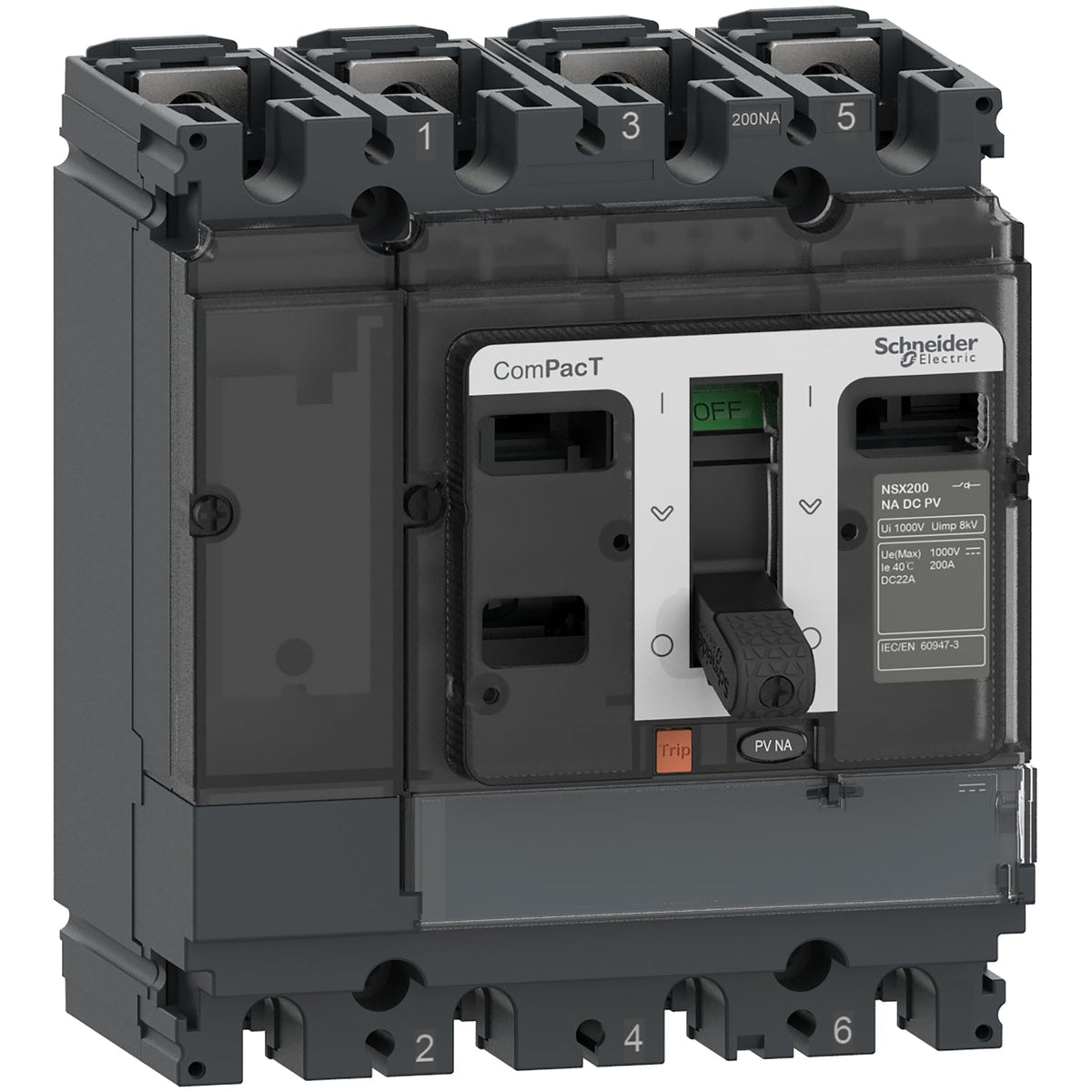

Schneider Electric C254200D1S ComPacT NSX200NA DC PV 4P 200 A 1000 V DC Fixed Switch Disconnector

Schneider Electric C254200D1S ComPacT NSX200NA DC PV 4P switch-disconnector, 200 A at 1000 V DC.

Rated current
200 A
Description

About the NSX200NA DC PV

The C254200D1S is a 4-pole Schneider Electric ComPacT NSX200NA DC PV switch-disconnector rated for 200 A (DC-22A) at 1000 V DC. Built on the standard ComPacT NSX body, it isolates photovoltaic strings or DC distribution circuits ahead of protection, without an Icu breaking-capacity rating of its own.

Certifications & Standards

  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

At 200 A the C254200D1S covers larger PV string or combiner-box currents than the 160 A NSX160NA DC PV switch in the same family, while keeping the identical 140 x 161 x 86 mm footprint and 2.5 kA/1 s short-time withstand. Its DC-22A utilisation category confirms it is rated for repeated on-load switching, the duty a string isolator actually performs, not just no-load maintenance isolation.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 21

Range ComPacT
Product name ComPacT NSX DC PV
Device short name NSX200NA DC PV
Product or component type Switch disconnector
Device application Photovoltaic
Poles description 4P
[Ith] conventional free air thermal current 150 A at 65 °C
[Ie] rated operational current DC-22A: 200 A DC 1000 V
[Ue] rated operational voltage 1000 V DC
Network type DC
Suitability for isolation Yes conforming to EN/IEC 60947-3
Utilisation category DC-22A
Breaking capacity code NA
Contact position indicator Yes
Visible break No
Mounting mode Fixed
[Icw] rated short-time withstand current 2.5 kA during 1 s
[Icm] rated short-circuit making capacity 2.5 kA switch-disconnector alone
Control type Toggle
[Ui] rated insulation voltage 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV

Complementary 11

Mounting support Backplate
Upside connection Front
Downside connection Front
Connection pitch 35 mm
Mechanical durability 10000 cycles
Electrical durability 1000 cycles 1000 V DC In
Width (W) 140 mm
Height (H) 161 mm
Depth (D) 86 mm
Net weight 2.8 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3

Environment 6

IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Electrical shock protection class Class II
Pollution degree 3 conforming to IEC 60664-1
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Show all 68 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number C254200D1S
Type designation NSX200NA DC PV
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 14.500 cm
Package 1 Length 19.000 cm
Package 1 Weight 2.606 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 16.056 kg
Unit Type of Package 3 P12
Number of Units in Package 3 48
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 140.448 kg
Shipping weight 2.8 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
