- Part number
- VCFN12GE
- Model no
- VCFN
Description
About the VCFN
About the VCFN

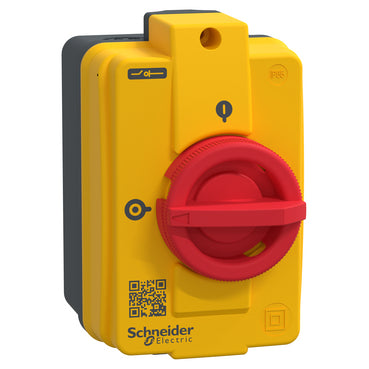

The Schneider Electric VCFN12GE is a fully enclosed 3-pole TeSys Mini-VARIO switch-disconnector rated 10 A, combining a VN12 switch body, a red padlockable rotary handle and a yellow cover in an IP55 enclosure for emergency-stop switching up to 4 kW at 400 V AC-23. Cabling runs through two glands on the top and bottom of the enclosure.
Certifications & Standards
- IEC 60947-4-1
Selection Notes
Unlike the door-mounted VCDN12, the VCFN12GE is a complete self-contained enclosure — pick it where the disconnect needs to sit on a wall or machine frame rather than a panel door, with its own IP55 rating independent of the cabinet. It accepts up to two add-on modules on the VN12 body for auxiliary or additional-pole functions. For loads above 4 kW at 400 V, use the VCFN20GE instead.
Specification
Full specification
Main 10
| Range | TeSys |
|---|---|
| Product name | TeSys Mini-VARIO |
| Device short name | VCFN |
| Product or Component Type | Emergency stop switch disconnector |
| Performance level | Standard |
| Poles description | 3P |
| Control Type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 0.2…0.3 in (4…8 mm) |
Complementary 23
| Marking | 0 - 1 |
|---|---|
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ie] rated operational current | 8.1 A AC-23A)400 V |
| Rated operational power in W | 4 kW 400 V AC-23), 3 kW 400 V AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I Rms) | 120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 0.5 kA 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 140 A 400 V 1 s |
| Rated conditional short-circuit current | 6 kA 400 V 12 A aM, 6 kA 400 V 12 A gG |
| Breaking capacity | 120 A 400 V AC-22A), 120 A 400 V AC-23A), 120 A AC-21A) |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles DC-1...5, 50000 cycles AC-21 |
| Suitability for isolation | Yes |
| Connections - terminals | Control circuit connector 0.006 in² (4 mm²) flexible with cable end, Control circuit connector 0.006 in² (4 mm²) solid |
| Tightening torque | Control circuit 6.2 lbf.in (0.7 N.m) connector |
| Fire resistance | 1760 °F (960 °C) IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 5.2 in (131 mm) |
| Width | 3.2 in (82.5 mm) |
| Depth | 4.2 in (106 mm) |
| Net Weight | 0.930 lb(US) (0.422 kg) |
Environment 4
| Standards | IEC 60947-4-1 |
|---|---|
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6, Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
Show all 51 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | VCFN12GE |
|---|---|
| Type designation | VCFN |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110759983 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.422 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
