VCDN20
Model no
VCDN
$23.91 On request Dispatch — · From TürkiyeGet a Quote

Schneider Electric VCDN20 TeSys Mini-VARIO Emergency Stop 3P 20 A 690 V AC Switch Disconnector

TeSys Mini-VARIO 3-pole switch disconnector, 20 A, 690 V AC, red/yellow emergency-stop handle, IP65.

Rated current
20 A
Rated operational voltage
690 V AC
Poles
3P
EAN
3389110759914
Description

About the VCDN

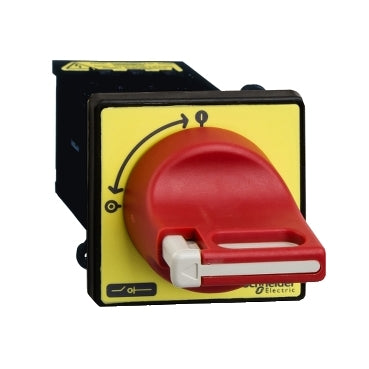

The Schneider Electric VCDN20 is a 3-pole TeSys Mini-VARIO switch-disconnector rated 20 A, built from a VZ20 switch body with a padlockable red handle on a yellow front plate for emergency-stop switching up to 5.5 kW at 400 V AC-23. It mounts through a single 22.5 mm door hole and carries IP65 protection once installed.

Certifications & Standards

  • GL
  • CSA
  • UL
  • CCC
  • UKCA
  • IEC 60947-3

Selection Notes

The VCDN20 uses the same VZ20 switch body and current rating as the VBDN20, but the red-on-yellow handle marks it for emergency-stop duty per IEC 60204-1 colour coding. Choose it over the VCDN12 once the motor exceeds 4 kW at 400 V. Up to two add-on poles can be fitted either side of the body — main (VZN12), neutral (VZN11), earthing (VZN14) or auxiliary contacts (VZN05, VZN06).

Data note: the breaking capacity row is published on se.com as 200 A at 400 V; this is carried through verbatim, though it is inconsistent with the 0.5 kA Icm rating for the same device, suggesting a possible source unit typo (A vs kA).

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 13

Range TeSys
Product name TeSys Mini-VARIO
Device short name VCDN
Product or Component Type Emergency stop switch disconnector
Performance level Standard
Poles description 3P
Contacts type and composition 3 NO
Network type DC, AC
Control Type Rotary handle
Rotary handle mounting style Direct
Handle colour Red
Handle front plate colour Yellow
Rotary handle padlocking 1 to 3 padlocks 0.2…0.3 in (4…8 mm)

Complementary 23

Marking 0 - 1
Mounting support Handle door, Switch door
Fixing mode Hole 0.9 in (22.5 mm) handle
[Ith] conventional free air thermal current 20 A
[Ithe] conventional enclosed thermal current 16 A
[Ie] rated operational current 11 A AC-23)400 V
Rated operational power in W 4 kW 230...240 V AC-23A), 5.5 kW 400...415 V AC-23A), 7.5 kW 500 V AC-23A), 11 kW 690 V AC-23A), 3 kW 230...240 V AC-3), 4 kW 400...415 V AC-3), 5.5 kW 500 V AC-3), 5.5 kW 690 V AC-3)
Intermittent duty class 30
Making capacity ( I Rms) 200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
[Icm] rated short-circuit making capacity 0.5 kA 400 V at Ipeak
[Icw] rated short-time withstand Rms current 140 A 400 V 1 s
Rated conditional short-circuit current 6 kA 400 V 20 A aM, 6 kA 400 V 20 A gG
Breaking capacity 200 kA 400 V AC-21A), 200 kA 400 V AC-22A), 200 kA 400 V AC-23A)
Device Composition Handle, Switch
Mechanical durability 50000 cycles
Electrical durability 30000 cycles DC-1...5, 50000 cycles AC-21
Suitability for isolation Yes
Connections - terminals Power circuit screw clamp terminals 0.006 in² (4 mm²) flexible - with cable end, Power circuit screw clamp terminals 0.006 in² (4 mm²) solid
Tightening torque Power circuit 6.2 lbf.in (0.7 N.m) screw clamp terminals
handle front plate dimension 60 x 60 mm
Height 2.4 in (60 mm)
Width 2.4 in (60 mm)
Net Weight 0.390 lb(US) (0.177 kg)

Environment 5

Standards IEC 60947-3
Product Certifications GL, CSA, UL, CCC, UKCA
Protective treatment TC
IP degree of protection IP65
Mechanical robustness Shocks 11 ms 15 gn) IEC 60068-2-27, Vibrations 10...150 Hz 1 gn) IEC 60068-2-6
Show all 55 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number VCDN20
Type designation VCDN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110759914

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.177 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
