Part number
VCDN12
Model no
VCDN
$22.08 On request Dispatch — · From TürkiyeGet a Quote

Schneider Electric VCDN12 TeSys Mini-VARIO Emergency Stop 3P 12 A 690 V AC Switch Disconnector

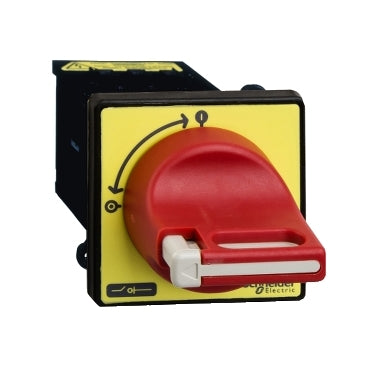

TeSys Mini-VARIO 3-pole switch disconnector, 12 A, 690 V AC, red/yellow emergency-stop handle, IP65.

Rated current
12 A
Rated operational voltage
690 V AC
EAN
3389110759877
Description

About the VCDN

The Schneider Electric VCDN12 is a 3-pole TeSys Mini-VARIO switch-disconnector rated 12 A, built from a VZ12 switch body with a padlockable red handle on a yellow front plate for emergency-stop switching up to 4 kW at 400 V AC-23. It mounts through a single 22.5 mm door hole and carries IP65 protection once installed.

Certifications & Standards

  • GL
  • CCC
  • UL
  • CSA
  • UKCA
  • IEC 60947-3

Selection Notes

The VCDN12 uses the same VZ12 switch body and current rating as the VBDN12, but the red-on-yellow handle marks it for emergency-stop duty per IEC 60204-1 colour coding rather than routine main switching — use it on panels where the door-mounted disconnect also serves as the e-stop. Up to two add-on poles can be fitted either side of the body — main (VZN12), neutral (VZN11), earthing (VZN14) or auxiliary contacts (VZN05, VZN06).

Data note: the breaking capacity row is published on se.com as 120 A at 400 V; this is carried through verbatim, though it is inconsistent with the 0.5 kA Icm rating for the same device, suggesting a possible source unit typo (A vs kA).

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 13

Range TeSys
Product name TeSys Mini-VARIO
Device short name VCDN
Product or Component Type Emergency stop switch disconnector
Performance level Standard
Poles description 3P
Contacts type and composition 3 NO
Network type AC, DC
Control Type Rotary handle
Rotary handle mounting style Direct
Handle colour Red
Handle front plate colour Yellow
Rotary handle padlocking 1 to 3 padlocks 0.2…0.3 in (4…8 mm)

Complementary 25

Marking 0 - 1
Mounting support Handle door, Switch door
Fixing mode Hole 0.9 in (22.5 mm) handle
[Ue] rated operational voltage 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
[Ith] conventional free air thermal current 12 A
[Ithe] conventional enclosed thermal current 10 A
[Ie] rated operational current 8.1 A AC-23)400 V
Rated operational power in W 3 kW 230...240 V AC-23A), 4 kW 400...415 V AC-23A), 5.5 kW 500 V AC-23A), 7.5 kW 690 V AC-23A), 1.5 kW 230...240 V AC-3), 3 kW 400...415 V AC-3), 4 kW 500 V AC-3), 4 kW 690 V AC-3)
Intermittent duty class 30
Making capacity ( I Rms) 120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A
[Icm] rated short-circuit making capacity 0.5 kA 400 V at Ipeak
[Icw] rated short-time withstand Rms current 140 A 400 V 1 s
Rated conditional short-circuit current 6 kA 400 V 12 A aM, 6 kA 400 V 12 A gG
Breaking capacity 120 kA 400 V AC-21A), 120 kA 400 V AC-22A), 120 kA 400 V AC-23A)
Device Composition Handle, Switch
Mechanical durability 50000 cycles
Electrical durability 30000 cycles DC-1...5, 50000 cycles AC-21
Suitability for isolation Yes
Connections - terminals Power circuit screw clamp terminals 0.006 in² (4 mm²) flexible - with cable end, Power circuit screw clamp terminals 0.006 in² (4 mm²) solid
Tightening torque Power circuit 6.2 lbf.in (0.7 N.m) screw clamp terminals
handle front plate dimension 60 x 60 mm
Height 2.4 in (60 mm)
Width 2.4 in (60 mm)
Net Weight 0.390 lb(US) (0.177 kg)

Environment 7

Standards IEC 60947-3
Product Certifications GL, CCC, UL, CSA, UKCA
Protective treatment TC
IP degree of protection IP65
Mechanical robustness Vibrations 10...150 Hz 5 gn) IEC 60068-2-6, Shocks 11 ms 15 gn) IEC 60068-2-27
Ambient Air Temperature for Operation -4…122 °F (-20…50 °C)
Fire resistance 1760 °F (960 °C) IEC 60695-2-1
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number VCDN12
Type designation VCDN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110759877

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.177 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
