- Part number
- VBF4
- Model no
- VBF
Description
About the VBF
About the VBF

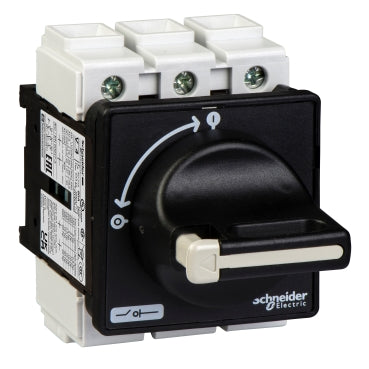

The Schneider Electric VBF4 is a 3-pole TeSys VARIO switch-disconnector rated 80 A, built from a V4 switch body and a padlockable black handle on a 4-screw door-mounted base, for main motor switching up to 30 kW at 400 V AC-23. It carries IP65 protection once installed on the enclosure door.
Certifications & Standards
- CSA
- GL
- UL
- CCC
- UKCA
- IEC 60947-3
Selection Notes
The VBF4 shares its housing, terminal size and torque spec with the VBF3, so stepping between the two for a revised motor rating does not change the door cutout. Above 30 kW at 400 V, move to the VBF5, which uses a larger 90 x 90 mm base and yellow front plate. Up to four add-on poles fit two per side of the V4 body: a main pole (VZ4), neutral (VZ12), earthing (VZ15) or auxiliary contacts (VZ7, VZ20).
Specification
Full specification
Main 5
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VBF |
| Device Application | Preventive maintenance |
| Product Type | Switch disconnector |
Complementary 34
| Device Composition | Switch, Handle |
|---|---|
| Mounting Support | Handle door, Switch door |
| Mounting Method | By 4 screws handle |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 18.5 kW 690 V AC-3), 15 kW 230...240 V AC-3), 22 kW 400...415 V AC-3), 30 kW 500 V AC-3), 30 kW 690 V AC-23A), 37 kW 500 V AC-23A), 18.5 kW 230...240 V AC-23A), 30 kW 400...415 V AC-23A) |
| [Ie] Rated Operational Current | 57 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 80 A |
| [Ithe] Conventional Enclosed Thermal Current | 63 A |
| Making Capacity ( I Rms) | 800 A 400 V AC-21A, 800 A 400 V AC-22A, 800 A 400 V AC-23A |
| Breaking Capacity | 640 A 400 V AC-21A), 640 A 400 V AC-22A), 640 A 400 V AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA 400 V 80 A aM, 10 kA 400 V 80 A gG |
| [Icm] Rated Short Circuit Making Capacity | 2.1 kA 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 960 A 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | AC, DC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Color | Black |
| Handle Front Plate Color | Black |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.2…0.3 in (4…8 mm) |
| Marking | 0 - 1 |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21, 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit screw clamp terminals 0.04 in² (25 mm²) solid, Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - with cable end |
| Tightening Torque | Power circuit 35.4 lbf.in (4 N.m) screw clamp terminals |
| Base Dimension | 60 x 60 mm |
| Height | 3.3 in (83 mm) |
| Width | 2.4 in (60 mm) |
| Product Weight | 1.23 lb(US) (0.56 kg) |
Environment 8
| Standards | IEC 60947-3 |
|---|---|
| Product Certifications | CSA, GL, UL, CCC, UKCA |
| Degree of Protection | IP20 conforming to IEC 60529, IP65 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6, Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
| Fire Resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Compatibility Code | Main switch disconnector |
Show all 61 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | VBF4 |
|---|---|
| Type designation | VBF |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110165982 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.56 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
