Part number
VBF3
Model no
VBF
$54.52 On request Dispatch — · From TürkiyeGet a Quote

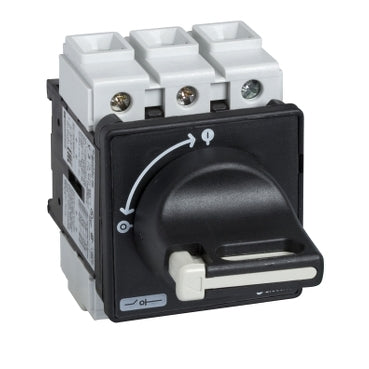

Schneider Electric VBF3 TeSys VARIO Switch Disconnector 3P 63 A 690 V AC Switch Disconnector

TeSys VARIO 3-pole switch disconnector, 63 A, 690 V AC, 4-screw door-mounted black handle, IP65.

Rated current
63 A
Rated operational voltage
690 V AC
Poles
3P
EAN
3389110165975
Description

About the VBF

The Schneider Electric VBF3 is a 3-pole TeSys VARIO switch-disconnector rated 63 A, built from a V3 switch body and a padlockable black handle on a 4-screw door-mounted base, for main motor switching up to 22 kW at 400 V AC-23. It carries IP65 protection once installed on the enclosure door.

Certifications & Standards

  • CSA
  • UL
  • CCC
  • GL
  • UKCA
  • IEC 60947-3

Selection Notes

At 63 A the VBF3 is the first step up to the larger 25 mm2 terminal and 4 N.m torque class, a taller housing than the V0/V02/V2 bodies below it — recheck door cutout and cable routing before substituting it into a panel built for the smaller frame. Up to four add-on poles fit two per side of the V3 body: a main pole (VZ3), neutral (VZ12), earthing (VZ15) or auxiliary contacts (VZ7, VZ20).

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 5

Range TeSys
Product Name TeSys VARIO
Device Short Name VBF
Device Application Preventive maintenance
Product Type Switch disconnector

Complementary 34

Device Composition Switch, Handle
Mounting Support Handle door, Switch door
Mounting Method By 4 screws handle
Performance Level High performance
Number of Poles 3P
Contact Type and Composition 3 NO
[Ue] IEC Rated Operational Voltage 690 V AC 50/60 Hz
IEC Rated Operational Power in W 11 kW 230...240 V AC-3), 22 kW 500 V AC-3), 22 kW 690 V AC-23A), 30 kW 500 V AC-23A), 18.5 kW 400...415 V AC-3), 18.5 kW 690 V AC-3), 15 kW 230...240 V AC-23A), 22 kW 400...415 V AC-23A)
[Ie] Rated Operational Current 41.5 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current 63 A
[Ithe] Conventional Enclosed Thermal Current 50 A
Making Capacity ( I Rms) 630 A 400 V AC-21A, 630 A 400 V AC-22A, 630 A 400 V AC-23A
Breaking Capacity 500 A 400 V AC-21A), 500 A 400 V AC-22A), 500 A 400 V AC-23A)
Rated Conditional Short Circuit Current 10 kA 400 V 63 A aM, 10 kA 400 V 63 A gG
[Icm] Rated Short Circuit Making Capacity 2.1 kA 400 V at Ipeak
[Icw] Rated Short Time Withstand Current 756 A 400 V 1 s
[Uimp] Rated Impulse Withstand Voltage 8 kV
Suitability for Isolation Yes
Network Type DC, AC
Intermittent Duty Class 30
Control Type Rotary handle
Rotary Handle Mounting Style Direct
Handle Color Black
Handle Front Plate Color Black
Rotary Handle Padlocking 1 to 3 padlocks 0.2…0.3 in (4…8 mm)
Marking 0 - 1
Mechanical Durability 30000 cycles
Electrical Durability 30000 cycles AC-21, 30000 cycles DC-1...5
IEC Terminal Connection Power circuit screw clamp terminals 0.04 in² (25 mm²) solid, Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - with cable end
Tightening Torque Power circuit 35.4 lbf.in (4 N.m) screw clamp terminals
Base Dimension 60 x 60 mm
Height 3.3 in (83 mm)
Width 2.4 in (60 mm)
Product Weight 1.23 lb(US) (0.56 kg)

Environment 8

Standards IEC 60947-3
Product Certifications CSA, UL, CCC, GL, UKCA
Degree of Protection IP20 conforming to IEC 60529, IP65
Protective Treatment TC
Mechanical Robustness Vibrations 10...150 Hz 1 gn) IEC 60068-2-6, Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation -4…122 °F (-20…50 °C)
Fire Resistance 1760 °F (960 °C) IEC 60695-2-1
Compatibility Code Main switch disconnector
Show all 61 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number VBF3
Type designation VBF
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110165975

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.56 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for VBF3

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • UKCA
  • CCC
  • IEC 60947-3
Quick answers

Questions about the VBF

What is the rated current of VBF?

The rated current of VBF is 63 A.

Which supply voltage is VBF rated for?

The rated operational voltage of VBF is 690 V AC.

What is the HS code of VBF for customs?

The tariff (HS) code on file for VBF is 853650.

What is the EAN of VBF?

The EAN (GTIN) of VBF is 3389110165975.

Where does VBF ship from, and how fast?

VBF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
