Part number
TPRBCPFN
Model no
TPRBC
$282.12 On request Dispatch — · From TürkiyeGet a Quote

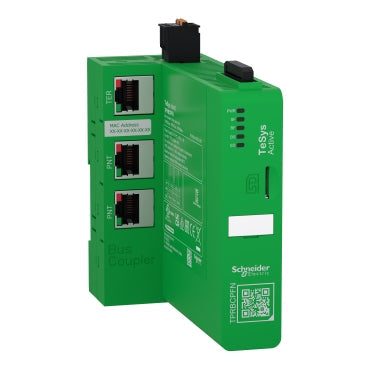

Schneider Electric TPRBCPFN TeSys Island TPRBC 24V DC Profinet IO Bus Coupler PLC Communication Module

TeSys island bus coupler, 24V DC / 3A, Profinet IO fieldbus ports, IP20, DIN rail mounting.

Communication
Profinet IO (2x RJ45 fieldbus, 1x RJ45 service port)
EAN
3606489832711
Description

About the TPRBC

The Schneider Electric TPRBCPFN is a TeSys island bus coupler (device short name TPRBC) supplied at 24 V DC, 3 A maximum, providing two Profinet IO fieldbus ports plus a service port for the automation controller connection. It manages the complete TeSys island configuration of up to 20 modules from the leftmost DIN-rail position.

Certifications & Standards

  • UL
  • CSA
  • EAC
  • Achilles level 2
  • PNO
  • EN/IEC 60947-4-1
  • CSA C22.2 No 61010-2-201
  • UL 61010-2-201
  • EN/IEC 61010-2-201

Selection Notes

As the leftmost module in a TeSys island configuration, the TPRBCPFN is the single point of connection between the automation controller and up to 20 downstream starter and I/O modules over Profinet IO, at Conformance Class A. Its 3 A / 24 V DC supply powers the entire island through one connection point rather than powering each module individually. The embedded web server and micro SD card port support diagnostics and configuration backup without a separate engineering tool session. Choose this Profinet IO variant for Siemens-style Profinet architectures; an EtherNet/IP and Modbus TCP version of this bus coupler covers those protocols instead.

Specification

Full specification

50 values · Last verified 30 Oct 2026

Main 16

Range TeSys
Product name TeSys island
Device short name TPRBC
Product or Component Type Bus coupler
Communication Port Protocol Profinet IO
Device presentation Point of connection between a group of starters and an automation controller, Management of the complete island up to 20 modules
Function Available Full integration with SoMove for the control of the island, One single 24V DC power supply for the complete island, Two fieldbus ports for communication with an automation controller, One service port with an embedded webserver for maintenance
Product compatibility TPRST motor starter, TPRSS SIL motor starter, TPRPM power module, TPRSM SIL interface module, TPRVM voltage interface module, TPRAN analog IO module, TPRDG digital IO module
Integrated connection type 2 RJ45 female Profinet IO, fieldbus port, 1 RJ45 female Ethernet TCP/IP, service port, 1 micro SD card port
Communication service Conformance class A (CC-A), Net load class 1, DHCP client, SNTP client
Local signalling 1 LED green/yellow PWR power supply status, 1 LED green/red SF system fault, 1 LED green/red BF network status, 1 LED green/red BS internal bus status, 1 LED green/red SD SD card access (SD)
[Us] rated supply voltage 24 V DC
Supply voltage limits 20.4…28.8 V DC
Rated current 3 A maximum
Protection type External fuse, 3 A fast power supply, Reverse polarity protection power supply
Power dissipation in W 7 W maximum

Complementary 9

Cybersecurity Achilles certified
Standards EN/IEC 60947-4-1, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201
Product certifications UL, CSA, EAC, Achilles level 2, PNO
Mounting mode Horizontal and vertical 35 mm symmetrical rail)
Connections - terminals Power supply removable spring terminal block 2 0.004 in² (2.5 mm²) 14 AWG)rigid or flexible
Width 2.0 in (50 mm)
Height 4.6 in (118 mm)
Depth 4.5 in (114 mm)
Net Weight 0.450 lb(US) (0.204 kg)

Environment 11

Ambient air temperature for storage -13…158 °F (-25…70 °C)
Ambient Air Temperature for Operation 14…140 °F (-10…60 °C)
Relative Humidity 5…95 %
Operating altitude 0...6561.68 ft (0...2000 m) without derating
IP degree of protection IP20
Pollution degree 2
Protective treatment TC
Fire resistance 1760 °F (960 °C) UL 94
Shock resistance 15 gn 11 ms) IEC 60068-2-27
Vibration resistance 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6
Electromagnetic compatibility Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4, Power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, Communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5, Power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Show all 50 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number TPRBCPFN
Type designation TPRBC
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489832711

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.204 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TPRBCPFN 5

Certifications

Certifications and standards

  • UL
  • CSA
  • EAC
  • EN/IEC 60947-4-1
  • CSA C22.2 No 61010-2-201
  • UL 61010-2-201
  • EN/IEC 61010-2-201
Quick answers

Questions about the TPRBC

What is the HS code of TPRBC for customs?

The tariff (HS) code on file for TPRBC is 853650.

What is the EAN of TPRBC?

The EAN (GTIN) of TPRBC is 3606489832711.

Where does TPRBC ship from, and how fast?

TPRBC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
