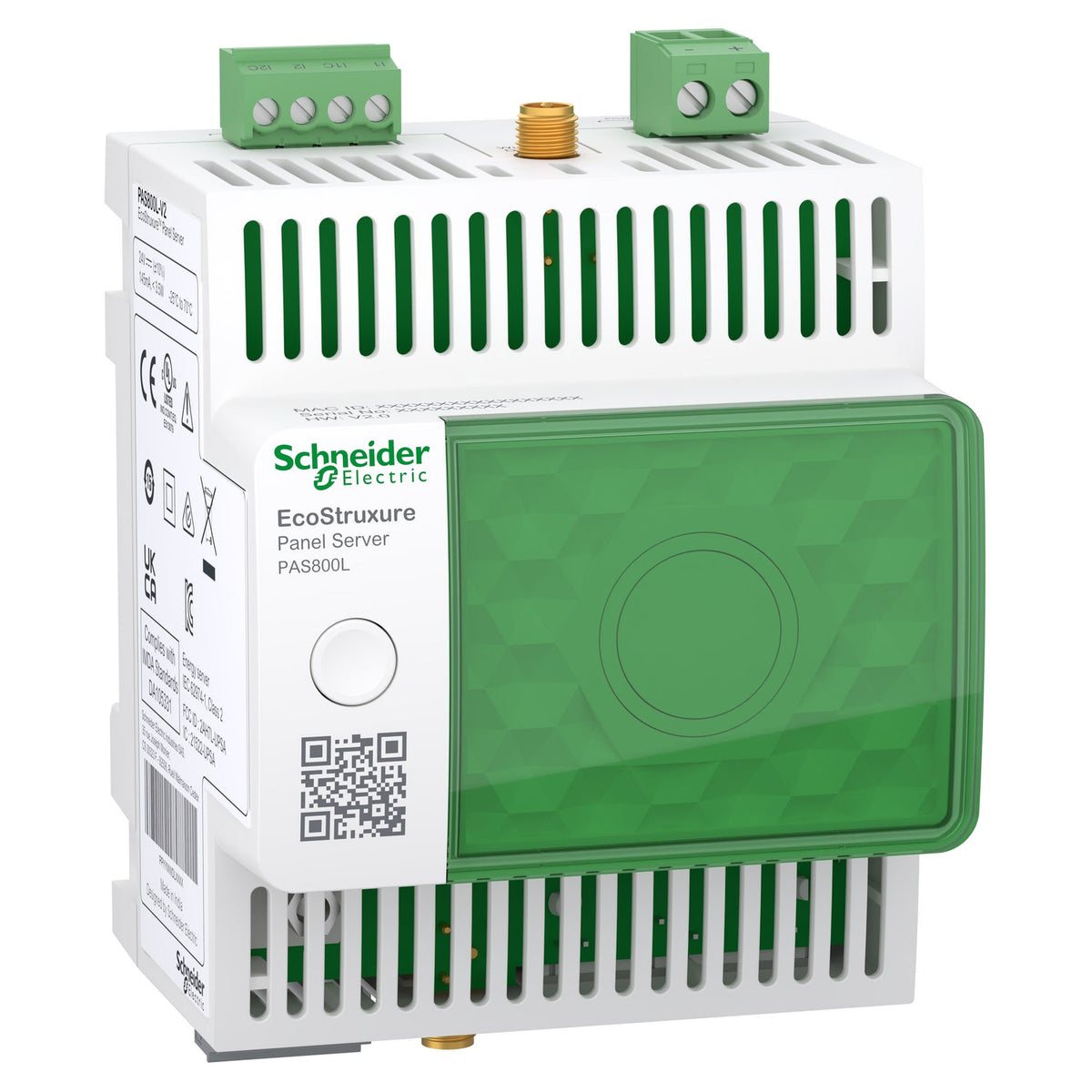

Schneider Electric PAS800L EcoStruxure Panel Server Advanced Data Logger Energy Server Communication Gateway

The Schneider Electric PAS800L EcoStruxure Panel Server Advanced is a 24 V DC-powered gateway and energy server that logs three years of historical data onboard while connecting wired Modbus devices and wireless PowerTag sensors. It bridges up to 32 Modbus RTU and 128 Modbus TCP/IP devices, plus up to 85 wireless IEEE 802.15.4 devices, and adds two onboard digital inputs for dry contact or WAGES signals.

Technical Specifications

Certifications & Standards

• CE
• cULus
• CB
• RCM
• UKCA
• FCC
• IEC 61010-1
• UL 61010-1
• IEC 62974-1
• IEC 61326-1

Selection Notes

The PAS800L combines the PAS800's 3-year onboard data logger with the 24 V DC supply and two digital inputs of the PAS600L, so it is the choice when a panel runs on a 24 V DC control bus and still needs local historical trending rather than relying entirely on a remote historian. Choose the PAS600L instead if only live pass-through monitoring is needed on the same 24 V DC supply, or the PAS800 if the panel's auxiliary supply is 110-277 V AC/DC.
