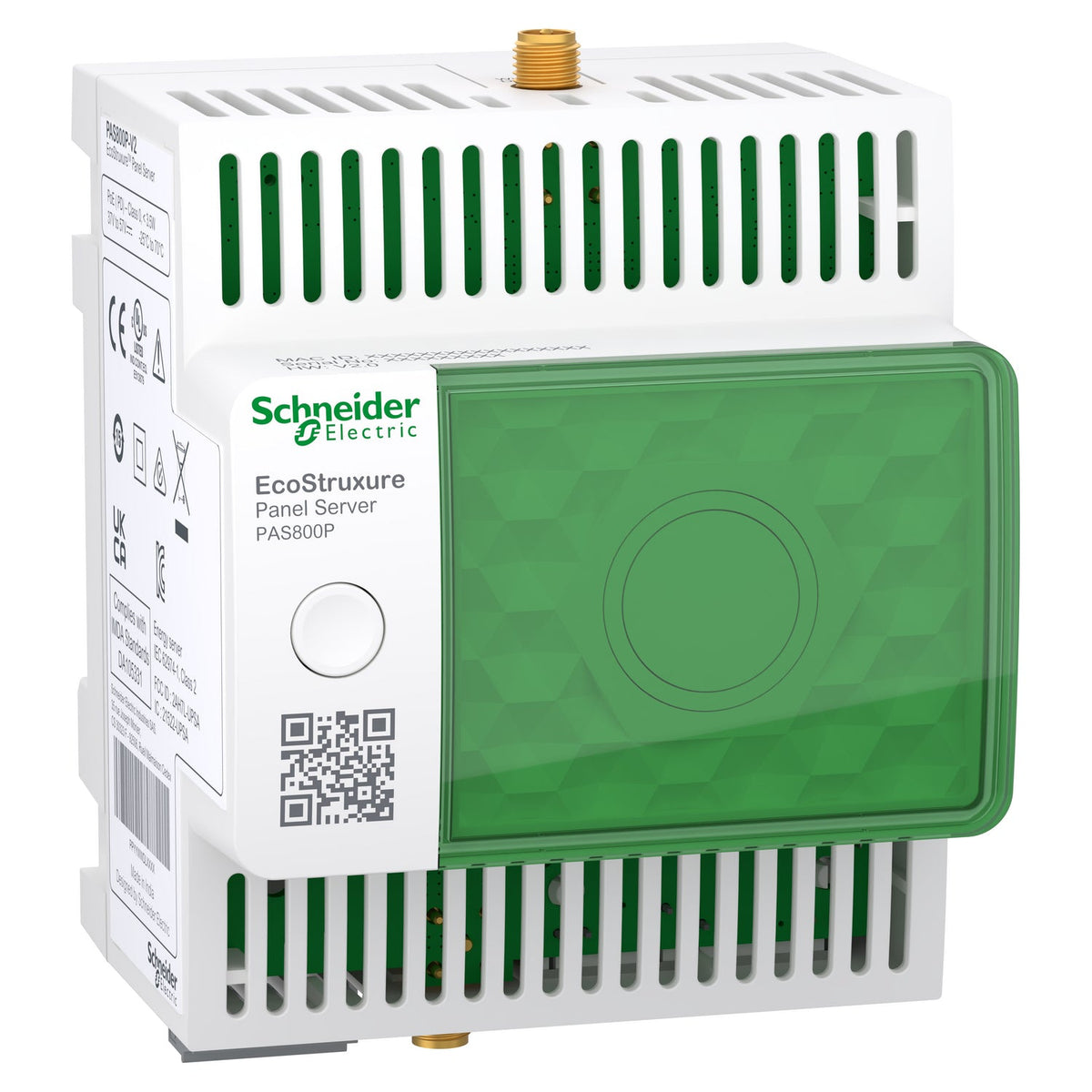

The Schneider Electric PAS800P EcoStruxure Panel Server Advanced is a Power-over-Ethernet gateway and energy server that logs three years of historical data onboard while connecting wired Modbus devices and wireless PowerTag sensors. It bridges up to 32 Modbus RTU and 128 Modbus TCP/IP devices, plus up to 85 wireless IEEE 802.15.4 devices, drawing its supply directly from the Ethernet cable.
The PAS800P takes its power directly from the Ethernet cable via PoE, which removes the need to run a separate 110-277 V AC/DC or 24 V DC supply to the gateway - useful in enclosures where only a single Ethernet drop is already planned. Data logging and wireless/Modbus concentrator capacity match the PAS800. Choose the PAS800 or PAS800L instead when the panel's existing auxiliary supply (AC/DC or 24 V DC) is more practical to use than a PoE Ethernet switch.
| Range | EcoStruxure |
|---|---|
| Product name | Panel Server Advanced |
| Product or Component Type | Gateway |
| Device short name | PAS800P |
| Device Application | Gateway & energy server, Data logger |
| [Us] rated supply voltage | PoE |
| Communication gateway | Ethernet TCP/IP to wireless devices, Ethernet/serial |
| Product Compatibility | Wireless access point |
|---|---|
| Maximum power consumption in W | 3.5 W via PoE |
| Communication network type | Wi-Fi infrastructure5 GHz, Wi-Fi infrastructure2.4 GHz, Ethernet 10/100BASE-T, Ethernet PPPoE (Point-to-Point Protocol over Ethernet), Wi-Fi access point2.4 GHz, Wireless IEEE 802.15.4, Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s |
| Communication port protocol | Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP |
| Communication port support | 2 RJ45 ETHERNET, Screw terminal block RS485 |
| Number of server device(s) | 32 Modbus RTU product(s), 128 Modbus TCP/IP product(s), 40 wireless (IEEE 802.15.4) product(s) - mixed, 85 wireless (IEEE 802.15.4) product(s) - depending on configuration |
| Number of devices | 64 Modbus TCP/IP |
| Memory capacity | HW V2: 64 GB eMMC, HW V1: 32 GB eMMC, HW V1: 512 MB NAND |
| Number of inputs | 0 |
| Connections - terminals | Communication screw terminal block bottom) 0.0002…0.002 in² (0.14…1.5 mm²), Power supply screw terminal block top) 0.002…0.004 in² (1.5…2.5 mm²) |
| Tightening torque | Communication: 2.21 lbf.in (0.25 N.m), Power supply: 5.3 lbf.in (0.6 N.m) |
| Wire stripping length | Power supply: 0.3 in (7 mm), Communication: 0.3 in (7 mm) |
| Number of connectors | 2 screw connector for Wi-Fi and IEEE 802.15.4 |
| Connector type | connector(s)1 x RP-SMA Wi-Fi for antenna bottom, connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Product Certifications | CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10 |
| Standards | IEC 61010, IEC 61010-1, IEC 61010-2-201, UL 61010, UL 61010-1, UL 61010-2-201, EN 61010-1, EN 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, CAN/CSA C22.2 No. 61010-2-201, IEC 62974-1, IEC 61326-1, EN 61326-1, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301-893, EN 55032, CISPR 11, ETSI EN 300 328, IEEE 802.15.4, IEEE 802.11a/b/g/n, IEEE 802.3 af/at, FCC CFR 47 part 15 class A, EN 62311, IEC 62311, IEC 60945, EN 62974-1 |
| Depth | 2.8 in (70.2 mm) |
| Height | 3.7 in (93 mm) |
| Width | 2.8 in (72 mm) |
| Net Weight | 6.5 oz (184 g) |
| Data recording | Historical dashboarding and trending, 3 years data logs |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 3 month(s) |
| Function Available | Embedded web page for configuration and upgrade, Diagnosis capabilities, Diagnostic report, Diagnostics on communication, Embedded data logger, Event Logger, Energy management, With integrated web server, Firmware update, Configurable event, Backup/restore configuration, CSV export |
| Product Specific Application | Wireless Schneider Electric devices ecosystem |
| Topology | Separated Ethernet network, Switched Ethernet network |
| Web services | HTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON), Alarm notification by e-mail |
| Communication Service | Device Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, Web server (energy & operation efficiency), RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop, EcoStruxure Power Commission Mobile (through Wi-Fi Access point), EcoStruxure Power Commission web (for third party device integration), Web page |
| Realtime clock | With RTC-battery set, With user calibration |
| Time synchronisation protocol | NTP, SNTP |
| Range compatibility | EcoStruxure Facility Expert, EcoStruxure Building Operation, EcoStruxure Power Operation, EcoStruxure Power Monitoring Expert, EcoStruxure Asset Advisor, EcoStruxure Energy Hub, EcoStruxure Resource Advisor, Third party SCADA |
| Communication iinterface | Modbus and wireless (IEEE802.15.4) product |
| Relative humidity | 5…95 % |
|---|---|
| IP degree of protection | IP40 front face), IP20 casing) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Pollution degree | 2 |
| Operating altitude | < 6561.68 ft (2000 m) |
| Part number | PAS800P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481014368 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IN |
|---|---|
| Shipping weight | 0.184 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
