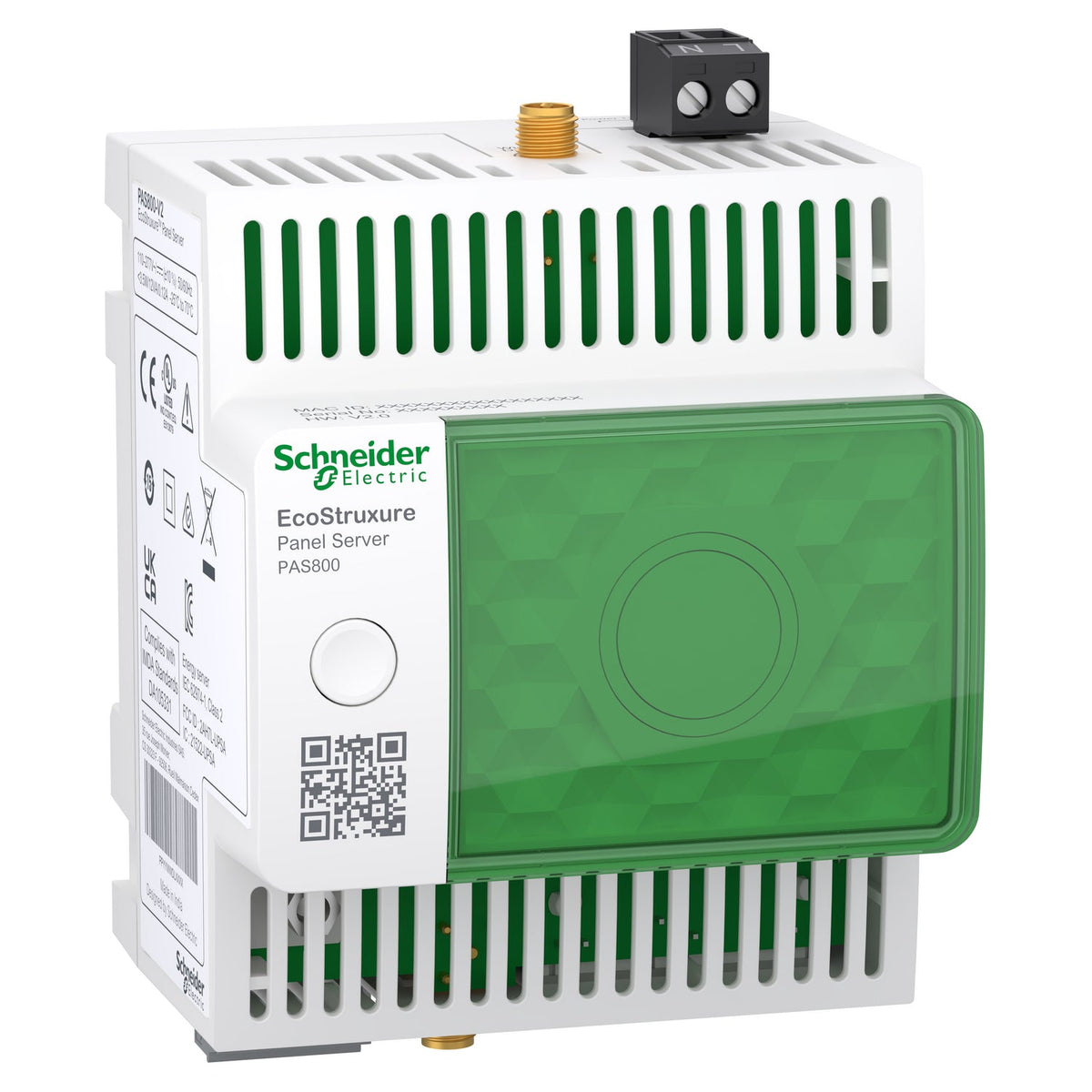

Schneider Electric PAS800 EcoStruxure Panel Server Advanced Data Logger Energy Server Communication Gateway

The Schneider Electric PAS800 EcoStruxure Panel Server Advanced is a gateway and energy server that connects wired Modbus devices and wireless PowerTag sensors while logging three years of historical data onboard. It bridges up to 32 Modbus RTU and 128 Modbus TCP/IP devices, plus up to 85 wireless IEEE 802.15.4 devices, powered from a 110-277 V AC/DC supply.

Technical Specifications

Certifications & Standards

• CE
• cULus
• CB
• RCM
• UKCA
• FCC
• IEC 61010-1
• UL 61010-1
• IEC 62974-1
• IEC 61326-1

Selection Notes

The PAS800 adds a 3-year onboard data logger with historical dashboarding, trending and CSV export on top of the PAS600's live-monitoring gateway, which matters when the panel needs to answer "what happened here" months later without relying on an external data historian. Its 32-64 GB eMMC memory (versus the PAS600's 512 MB-32 GB) is what makes that retention possible. Choose the plain PAS600 instead when only real-time pass-through to an existing BMS/SCADA system is needed and local history is not required.
