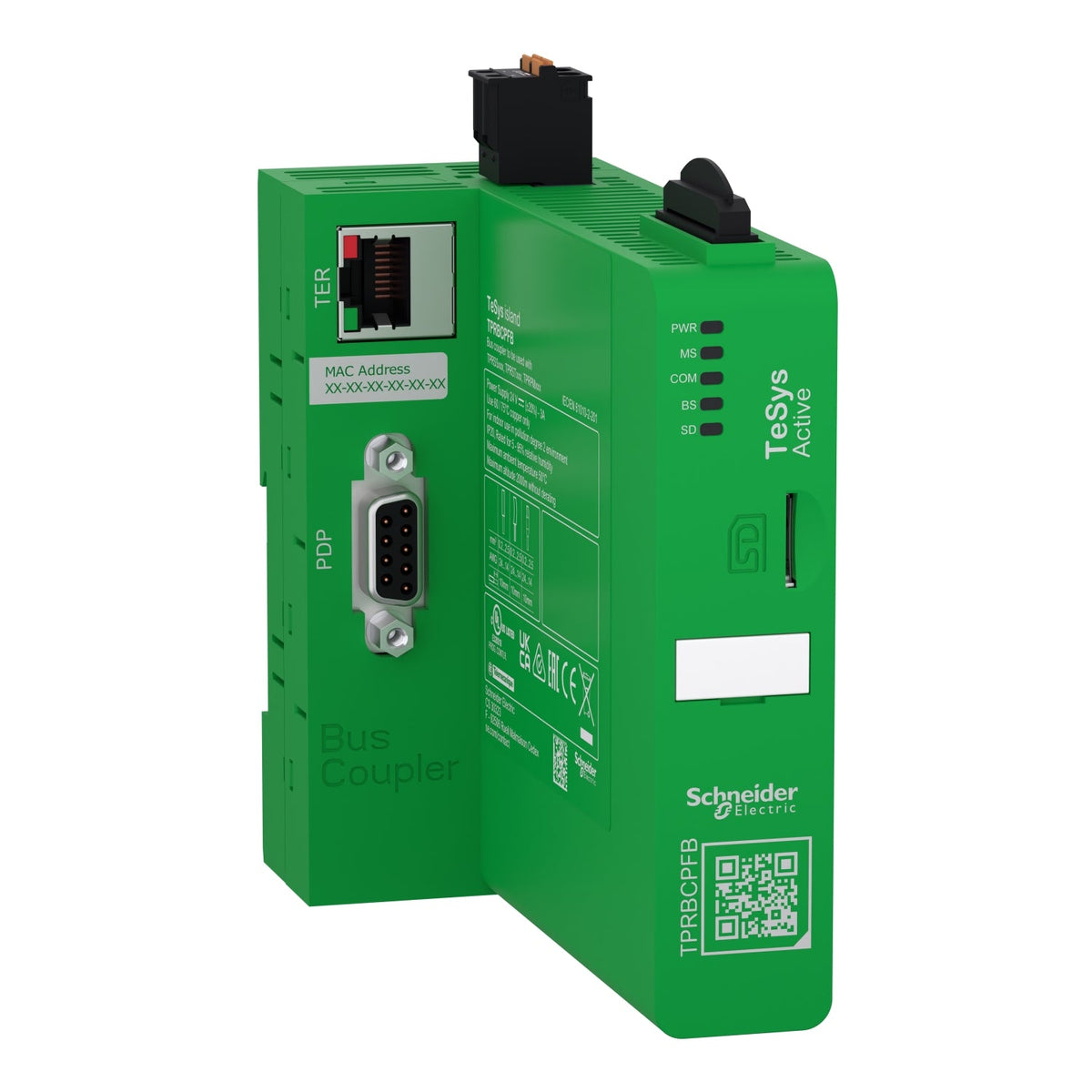

Schneider Electric TPRBCPFB TeSys Island Bus Coupler Profibus DP 24 V DC PLC Communication Module
The Schneider Electric TPRBCPFB is a TeSys Island bus coupler that connects a group of TeSys starters to a Profibus DP automation system. Supplied by
Description
About the TPRBC
About the TPRBC
The Schneider Electric TPRBCPFB is a TeSys Island bus coupler that connects a group of TeSys starters to a Profibus DP automation system. Supplied by 24 V DC at up to 3 A, it provides the Profibus DP fieldbus port plus an Ethernet service port with an embedded web server for diagnostics.
Certifications & Standards
- UL
- CSA
- EAC
- Achilles Level 2
- PNO
- EN/IEC 60947-4-1
- CSA C22.2 No 61010-2-201
- UL 61010-2-201
- EN/IEC 61010-2-201
Selection Notes
The TPRBCPFB is the left-most module in a TeSys island, giving the group a Profibus DP link to the PLC; it manages the complete island of up to 20 modules through SoMove or EcoStruxure Machine Expert, and its embedded web server covers maintenance without needing the automation controller.
Specification
Full specification
Main 16
| Range | TeSys |
|---|---|
| Product name | TeSys island |
| Device short name | TPRBC |
| Product or Component Type | Bus coupler |
| Communication Port Protocol | Profibus DP |
| Device presentation | Point of connection between a group of starters and an automation controller, Management of the complete island up to 20 modules |
| Function Available | Full integration with SoMove for the control of the island, One single 24V DC power supply for the complete island, One fieldbus port for communication with an automation controller, One service port with an embedded webserver for maintenance |
| Product compatibility | TPRST motor starter, TPRSS SIL motor starter, TPRPM power module, TPRSM SIL interface module, TPRVM voltage interface module, TPRAN analog IO module, TPRDG digital IO module |
| Integrated connection type | 1 SUB-D 9 female Profibus DP, fieldbus port, 1 RJ45 female Ethernet TCP/IP, service port, 1 micro SD card port |
| Communication service | Type 3 data-link layer service Profibus, DHCP client Ethernet TCP/IP, SNTP client Ethernet TCP/IP |
| Local signalling | 1 LED green/yellow PWR power supply status, 1 LED green/red MS module status, 1 LED green/red COM network status, 1 LED green/red BS internal bus status, 1 LED green/red SD SD card access (SD) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V DC |
| Rated current | 3 A maximum |
| Protection type | External fuse, 3 A fast power supply, Reverse polarity protection power supply |
| Power dissipation in W | 7 W maximum |
Complementary 9
| Cybersecurity | Achilles certified |
|---|---|
| Standards | EN/IEC 60947-4-1, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201 |
| Product certifications | UL, CSA, EAC, Achilles level 2, PNO |
| Mounting mode | Horizontal and vertical 35 mm symmetrical rail) |
| Connections - terminals | Power supply removable spring terminal block 2 0.004 in² (2.5 mm²) 14 AWG)rigid or flexible |
| Width | 2.0 in (50 mm) |
| Height | 4.6 in (118 mm) |
| Depth | 4.5 in (114 mm) |
| Net Weight | 0.450 lb(US) (0.204 kg) |
Environment 11
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) |
| Relative Humidity | 5…95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Protective treatment | TC |
| Fire resistance | 1760 °F (960 °C) UL 94 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Vibration resistance | 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4, Power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, Communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5, Power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 |
Show all 50 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | TPRBCPFB |
|---|---|
| Type designation | TPRBC |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489832735 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.204 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
