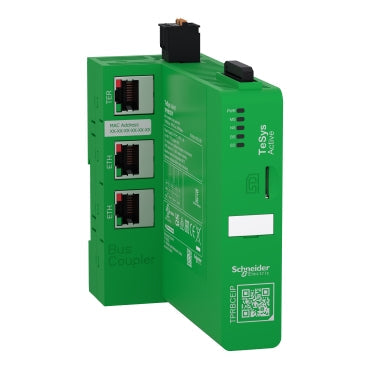

The Schneider Electric TPRBCEIP is a TeSys island bus coupler (device short name TPRBC) supplied at 24 V DC, 3 A maximum, providing two EtherNet/IP or Modbus TCP fieldbus ports plus a service port for the automation controller connection. It manages the complete TeSys island configuration of up to 20 modules from the leftmost DIN-rail position.
As the leftmost module in a TeSys island configuration, the TPRBCEIP is the single point of connection between the automation controller and up to 20 downstream starter and I/O modules over EtherNet/IP or Modbus TCP. Its 3 A / 24 V DC supply powers the entire island through one connection point rather than powering each module individually. The embedded web server and micro SD card port support diagnostics and configuration backup without a separate engineering tool session. Choose this EtherNet/IP-and-Modbus TCP variant when the automation controller runs one of those protocols; a Profinet IO version of this bus coupler covers Profinet-based architectures instead.
| Range | TeSys |
|---|---|
| Product name | TeSys island |
| Device short name | TPRBC |
| Product or Component Type | Bus coupler |
| Communication Port Protocol | EtherNet/IP, Modbus TCP |
| Device presentation | Point of connection between a group of starters and an automation controller, Management of the complete island up to 20 modules |
| Function Available | Full integration with SoMove/MachineExpert for the programming of the island, One single 24V DC power supply for the complete island, Two fieldbus ports for communication with an automation controller, One service port with an embedded webserver for maintenance |
| Product compatibility | TPRST motor starter, TPRSS SIL motor starter, TPRPM power module, TPRSM SIL interface module, TPRVM voltage interface module, TPRAN analog IO module, TPRDG digital IO module |
| Integrated connection type | 2 RJ45 female Ethernet IP/Modbus TCP 10/100BASE-T, fieldbus port, 1 RJ45 female Ethernet TCP/IP, service port, 1 micro SD card port |
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet |
| Communication service | Ethernet/IP adapter, Modbus TCP server, DHCP client, BOOTP client, SNMP client, SNTP client, Auto MDI/MDX function |
| Local signalling | 1 LED green/yellow PWR power supply status, 1 LED green/red MS module status, 1 LED green/red NS network status, 1 LED green/red BS internal bus status, 1 LED green/red SD SD card access (SD) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V DC |
| Rated current | 3 A maximum |
| Protection type | External fuse, 3 A fast power supply, Reverse polarity protection power supply |
| Power dissipation in W | 7 W maximum |
| Cybersecurity | Achilles certified |
|---|---|
| Standards | EN/IEC 60947-4-1, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201 |
| Product certifications | UL, CSA, EAC, Achilles level 2 |
| Mounting mode | Horizontal and vertical 35 mm symmetrical rail) |
| Connections - terminals | Power supply removable spring terminal block 2 0.004 in² (2.5 mm²) 14 AWG)rigid or flexible |
| Width | 2.0 in (50 mm) |
| Height | 4.6 in (118 mm) |
| Depth | 4.5 in (114 mm) |
| Net Weight | 0.450 lb(US) (0.204 kg) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) |
| Relative Humidity | 5…95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Protective treatment | TC |
| Fire resistance | 1760 °F (960 °C) UL 94 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Vibration resistance | 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4, Power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, Communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5, Power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 |
| Part number | TPRBCEIP |
|---|---|
| Type designation | TPRBC |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489832704 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.204 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
