Modicon M262Schneider Electric TMSES4 Modicon M262 Ethernet Smart Communication Module 4 RJ45 PLC Communication Module

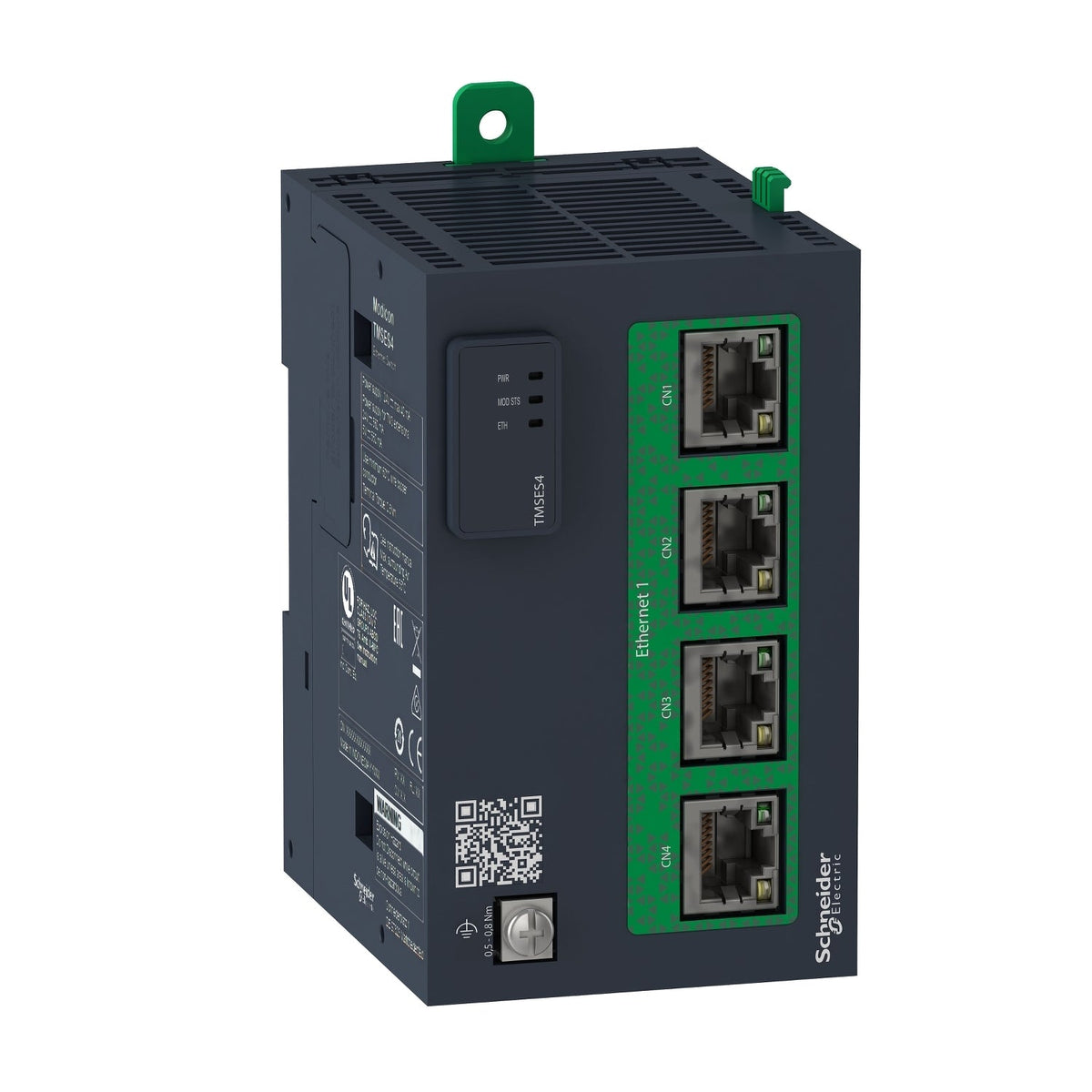

The Schneider Electric TMSES4 is a Modicon M262 smart communication module that adds four Ethernet ports to M262 logic/motion controllers. It supports
Description
About the TMSES4
About the TMSES4
The Schneider Electric TMSES4 is a Modicon M262 smart communication module that adds four Ethernet ports to M262 logic/motion controllers. It supports Modbus TCP, Ethernet/IP adapter, OPC UA server, MQTT and TLS encryption for cloud connectivity, with power drawn from the controller's communication bus.
Certifications & Standards
- CE
- cULus
- RCM
- UL 61010-1
- UL 61010-2-201
- CSA C22.2 No 61010-1
- CSA C22.2 No 61010-2-201
- CSA C22.2 No 213
- ANSI/ISA 12-12-01
- IEC 61131-2
Selection Notes
Add the TMSES4 when the M262 application needs additional Ethernet ports for cloud connectivity, SQL or OPC UA services; for a CANopen master link instead, use the TMSCO1 module.
Specification
Full specification
Main 2
| Range of Product | Modicon M262 |
|---|---|
| Product or Component Type | Smart communication module |
Complementary 13
| Range Compatibility | Modicon M262 |
|---|---|
| Current consumption | 200 mA 24 V |
| Number of module per PLC | 1 maximum per logic controller, 1 maximum per motion controller |
| Port Ethernet | 10/100/1000 BASE-TX - 4 RJ45 |
| Services | Self speed adaptation (10-100-1000 Mbits), Half or full duplex, Autocrossing (MDIO) |
| Web services | Web server |
| Communication Service | Ethernet/IP adapter, DHCP client, IEC VAR ACCESS, Modbus TCP server, SNMP client/server, FTP client/server, SQL client, Send and receive email from the controller based on TCP/UDP library, Web server, OPC UA server, DNS client, MQTT, SNTP, TLS |
| Communication Port Protocol | Ethernet |
| Local signalling | 1 LED (green) for PWR, 1 LED for MOD STS, 1 LED for ETH |
| Mounting support | Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Width | 2.4 in (60 mm) |
| Height | 3.9 in (100 mm) |
| Depth | 3.5 in (88.3 mm) |
Environment 16
| Standards | UL 61010-1, UL 61010-2-201, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 213, ANSI/ISA 12-12-01, IEC 61131-2, - |
|---|---|
| Product Certifications | CE, cULus, RCM, EAC (pending) |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2, 8 kV on air IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3, 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3, 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-4, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011, Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011, Radiated emissions 40 dBµV/m A30…230 kHz IEC 55011, Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011, Radiated emissions 47 dBµV/m A230…1000 MHz IEC 55011 |
| Ambient Air Temperature for Operation | -4…140 °F (-20…60 °C) horizontal installation, -4…122 °F (-20…50 °C) vertical installation |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 10…95 %, without condensation in operation), 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 2…8.4 Hz symmetrical rail, 1 gn 8.4…200 Hz symmetrical rail, 3.5 mm 2…8.4 Hz panel mounting, 1 gn 8.4…200 Hz panel mounting |
| Shock resistance | 15 gn 11 ms |
Show all 44 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | TMSES4 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489604233 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.522 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for TMSES4
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- cULus
- CE
- EAC
- UL 61010-1
- UL 61010-2-201
- CSA C22.2 No 61010-1
- CSA C22.2 No 61010-2-201
- CSA C22.2 No 213
- ANSI/ISA 12-12-01
- IEC 61131-2
- -
Quick answers
Questions about the TMSES4
What is the HS code of TMSES4 for customs?
The tariff (HS) code on file for TMSES4 is 851762.
What is the EAN of TMSES4?
The EAN (GTIN) of TMSES4 is 3606489604233.
Where does TMSES4 ship from, and how fast?
TMSES4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
