Schneider Electric TM3SAK6R Modicon TM3 Safety TM3SAK Cat 4 PL e SILCL 3 Safety Relay

% $-434.35

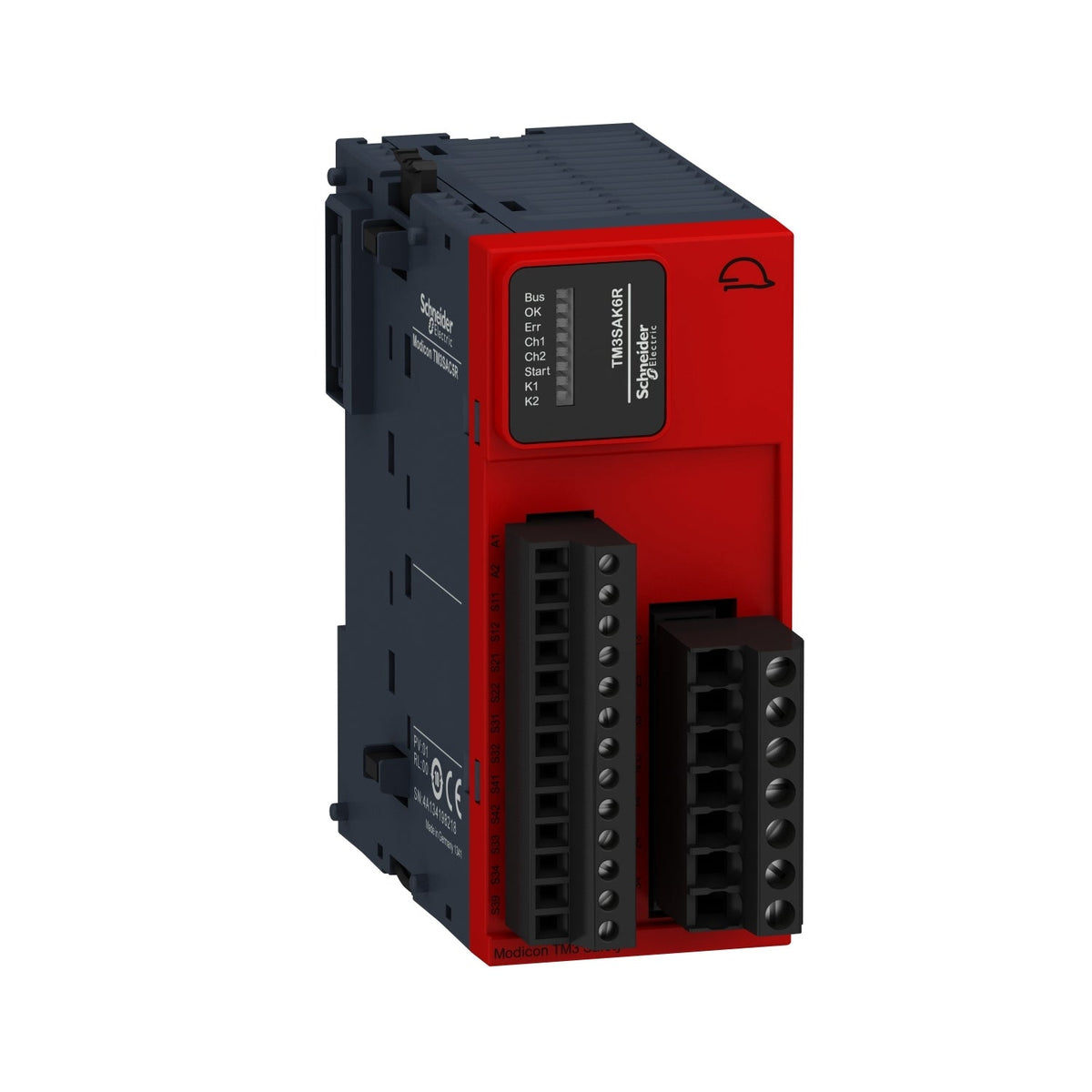

Schneider Electric TM3SAK6R Modicon TM3 Safety module, Cat 4 PL e SILCL 3
Schneider Electric TM3SAK6R Modicon TM3 Safety module, Cat 4 PL e SILCL 3

Schneider Electric TM3SAK6R Modicon TM3 Safety TM3SAK Cat 4 PL e SILCL 3 Safety Relay

Brand: Schneider Electric
Reference No: TM3SAK6R
Catalog No: TM3SAK6R
Series: Modicon TM3 Safety
Tariff Code (HS): 853641
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$434.35

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3SAK6R is a Modicon TM3 Safety expansion module (device short name TM3SAK) that monitors emergency stops, movable guards, safety light curtains and sensing mats/edges with 3 configurable functions, reaching PL e / Category 4 per ISO 13849-1 and SILCL 3 per IEC 62061 on a 24 V DC supply for Modicon M221, M241 and M251 controllers.

Technical Specifications

Reference TM3SAK6R
GTIN 3606485393032
Brand Schneider Electric
Range Modicon TM3 Safety
Device Short Name TM3SAK
Product Type Safety module
Safety Module Application Emergency stop, switch, sensing mat/edges and safety light curtain monitoring
Function of Module Emergency stop monitoring (1- or 2-channel), movable guard monitoring, multiple emergency stop monitoring, proximity sensor monitoring PNP/PNP and PNP/NPN, sensing mat and edges monitoring, ESPE monitoring PNP/PNP and PNP/NPN
Safety Level PL e / Category 4 (ISO 13849-1), SILCL 3 (IEC 62061), SIL 3 (IEC 61508)
Diagnostic Coverage DC = 95%
PFHd 5E-9 /h at 1 operation/hour, DC-13 24V DC less than 4A
MTTFd 500 years at 1 operation/hour, DC-13 24V DC less than 4A
Rated Supply Voltage [Us] 24 V DC -15...+20%
Power Consumption 3.6 W at 24V DC
Output Type 3 NO relay, instantaneous opening, potential free
Breaking Capacity 4 A at 24V DC-13 / 360 VA holding AC-15 B300
Product Compatibility Safety light curtains EN/IEC 61496-1 (type 4), sensing mat/edges EN 1760-1
Local Signalling 8 LEDs (green/red)
Electrical Connection Screw terminal
Mounting TH35-7.5 / TH35-15 DIN rail, wall mount
Net Weight 0.19 kg
IP Degree of Protection IP20 (terminals)

Certifications & Standards

  • CE
  • TÜV
  • UL 61010-2-201
  • EAC
  • RCM
  • CSA 61010-2-201
  • IEC 60947-1
  • IEC 60204-1
  • EN 1088/ISO 14119
  • IEC 60947-5-1
  • ISO 13850

Selection Notes

Choose the TM3SAK6R when the application needs sensing mats or edges in addition to emergency stops, guards and light curtains, at the highest Cat 4 / PL e / SILCL 3 level in the TM3 Safety range. The TM3SAFL5R covers 2 of the same functions at the lower Cat 3 / PL d / SILCL 2 rating, and the TM3SAC5R and TM3SAF5R handle a single function each.

Technical Details

Short Description
Modicon TM3 Safety module, 3 functions, Cat 4 PL e, SILCL 3, sensing mat ready.
Mounting Type
TH35-7.5 / TH35-15 DIN rail, wall mount
Protection Type
IP20 (terminals)
Catalog No
TM3SAK6R
Delivery Date (Days)
30 days
Model Number
TM3SAK
Tariff Code
853641
