Part number
TM3SAFL5R
Model no
TM3SAFL
$426.94 On request Dispatch — · From TürkiyeGet a Quote
Modicon TM3 Safety

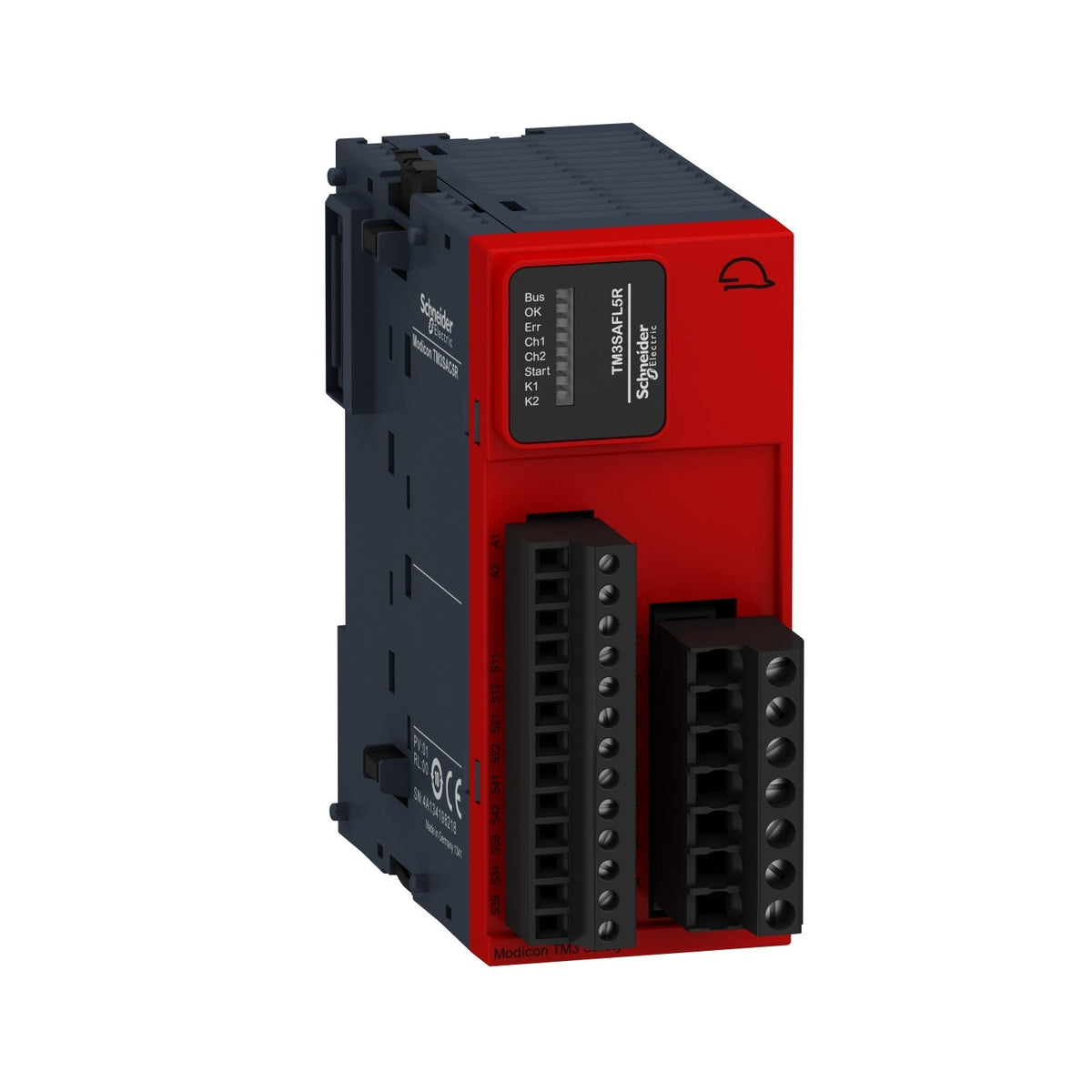

Schneider Electric TM3SAFL5R Modicon TM3 Safety TM3SAFL Cat 3 PL d SILCL 2 Safety Relay

Modicon TM3 Safety module, 2 functions, Cat 3 PL d, SILCL 2, light curtain ready.

Range of Product
Modicon TM3 Safety
Product or Component Type
Safety module
Device short name
TM3SAFL
Safety module application
For emergency stop, switch and safety light curtain monitoring
Function of module
Emergency stop monitoring 2-channel wiring, Monitoring of a movable guard with 2 switches and automatic start, Monitoring of a movable guard, Multiple emergency stop monitoring 2-channel wiring, Proximity sensor monitoring PNP/PNP, Monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP
Safety level
Can reach PL d/category 3 ISO 13849-1 2008, Can reach PL d/category 3 ISO 13849-2 2012, Can reach SILCL 2 IEC 62061 2005, Can reach SIL 2 IEC 61508 2010
EAN
3606485393018
Description

About the TM3SAFL

The Schneider Electric TM3SAFL5R is a Modicon TM3 Safety expansion module (device short name TM3SAFL) that monitors emergency stops, movable guards and safety light curtains with 2 configurable functions, reaching PL d / Category 3 per ISO 13849-1 and SILCL 2 per IEC 62061 on a 24 V DC supply for Modicon M221, M241 and M251 controllers.

Certifications & Standards

  • CE
  • TÜV
  • RCM
  • EAC
  • UL 61010-2-201
  • CSA 61010-2-201
  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60204-1
  • EN 1088/ISO 14119
  • ISO 13850

Selection Notes

Choose the TM3SAFL5R over the single-function TM3SAC5R when the machine needs safety light curtains or proximity sensors alongside emergency-stop and guard monitoring, at the same Cat 3 / PL d / SILCL 2 level. The TM3SAK6R extends coverage to a third function, sensing mats and edges, at the higher Cat 4 / PL e / SILCL 3 rating.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon TM3 Safety
Product or Component Type Safety module
Device short name TM3SAFL
Safety module application For emergency stop, switch and safety light curtain monitoring
Function of module Emergency stop monitoring 2-channel wiring, Monitoring of a movable guard with 2 switches and automatic start, Monitoring of a movable guard, Multiple emergency stop monitoring 2-channel wiring, Proximity sensor monitoring PNP/PNP, Monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP
Safety level Can reach PL d/category 3 ISO 13849-1 2008, Can reach PL d/category 3 ISO 13849-2 2012, Can reach SILCL 2 IEC 62061 2005, Can reach SIL 2 IEC 61508 2010

Complementary 33

Safety reliability data DC = 95 % ISO 13849-1, PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A, PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A, MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A, MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A, SFF = 95 % IEC 61508-1, HFT = 1 IEC 61508-1, Type = A IEC 61508-1
Synchronisation time between inputs Unlimited
Connections - terminals Captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² flexible without cable end 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² solid without cable end 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34, Captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, Captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals, Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals, Captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.5 mm² flexible without cable end other terminals, Captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.75 mm² solid without cable end other terminals, Captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 0.34 mm² flexible with cable end, without bezel other terminals, Captive screw clamp terminals, removable terminal block 2 x 0.5 mm² flexible with cable end, with double bezel other terminals
Output type Relay instantaneous opening, 3 NO, potential free
Number of safety circuits 3 NO relay instantaneous opening
Maximum switching voltage 230 V AC-15 50 Hz relay instantaneous opening), 24 V DC-13 relay instantaneous opening)
[Us] rated supply voltage 24 V - 15...20 % DC
Power consumption in W 0.2 W 5 V DC, 3.6 W 24 V DC
Input protection type Internal, electronic
[Uc] control circuit voltage 24 V DC
Maximum cable distance between devices 98.4 ft (30 m)
Breaking capacity 360 VA holding AC-15 B300 relay output, 3600 VA inrush AC-15 B300 relay output
Output thermal current 6 A per relay relay output
[Ith] conventional free air thermal current 18 A
Associated fuse rating 4 A gG or gL relay output IEC 60947-5-1, 6 A fast blow relay output IEC 60947-5-1
Minimum output current 10 mA relay output
Output voltage 10 V relay output
Maximum response time on input open 40 ms
[Ui] rated insulation voltage 300 V 2)IEC 60647-5-1
[Uimp] rated impulse withstand voltage 4 kV III IEC 60647-5-1
Current consumption 100 mA 24 V DC external supply
Local signalling 8 LEDs (green/red) for user
Electrical Connection Screw terminal
Product compatibility Safety light curtains EN/IEC 61496-1 (type 4)
Standards ISO 13849-1:2008, ISO 13849-2:2012, IEC 62061:2005, IEC 61508:2010, IEC 60947-5-1:2010, IEC 61131-2:2007, IEC 60204-1:2005, IEC 60204-1:2009/A1, IEC 61010-1:2010, EN 50581:2012
Product Certifications TÜV, RCM, ANSI Haz Loc Class 1 Division 2 (pending), CSA Haz Loc Class 1 Division 2 (pending), EAC, CSA 61010-2-201 (pending), UL 61010-2-201
Marking CE, EFUP 10, UL, CSA, EAC, RCM, TÜV
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3, Magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, Electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, Radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, Radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
Mounting support Top hat type TH35-7.5 rail IEC 60715, Top hat type TH35-15 rail IEC 60715, wall mount using attached fasteners
Height 3.7 in (94 mm)
Depth 2.9 in (73 mm)
Width 1.7 in (43.7 mm)
Net Weight 0.42 lb(US) (0.19 kg)

Environment 18

Standards IEC 60947-1, EN 1088/ISO 14119, ISO 13850, IEC 60947-5-1, IEC 60204-1
Resistance to electrostatic discharge 8 kV in air IEC 61000-4-2, 6 kV on contact IEC 61000-4-2
Resistance to electromagnetic fields 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3, 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3, 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Resistance to magnetic fields 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Resistance to fast transients 3 kV power lines (DC) DC)IEC 61000-4-4, 2 kV I/O linesIEC 61000-4-4
Surge withstand 1 kV power lines (DC) differential mode IEC 61000-4-5 DC, 1 kV power lines (DC) common mode IEC 61000-4-5 DC
Resistance to conducted disturbances 10 V 0.15...80 MHz IEC 61000-4-6
Electromagnetic emission Radiated emissions 50 dBµV/m class A 24 V DC)30…230 Hz IEC 61131-3, Radiated emissions 57 dBµV/m class A 24 V DC)230…1000 Hz IEC 61131-3
Ambient Air Temperature for Operation 14…131 °F (-10…55 °C) horizontal installation
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Relative humidity 10…95 %, without condensation in operation), 10…95 %, without condensation in storage)
IP degree of protection IP20 terminals)IEC 60529
Pollution degree 2
Operating altitude 0...6561.68 ft (0...2000 m)
Storage altitude 0…9842.5 ft (0…3000 m)
Vibration resistance +/- 3.5 mm (f= 5…150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn 11 ms IEC 60068-2-27
Mechanical robustness Bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
Show all 71 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number TM3SAFL5R
Type designation TM3SAFL
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485393018

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.19 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TM3SAFL5R

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • EAC
  • IEC 60947-1
  • EN 1088/ISO 14119
  • ISO 13850
  • IEC 60947-5-1
  • IEC 60204-1
Quick answers

Questions about the TM3SAFL

What is the HS code of TM3SAFL for customs?

The tariff (HS) code on file for TM3SAFL is 853641.

What is the EAN of TM3SAFL?

The EAN (GTIN) of TM3SAFL is 3606485393018.

Where does TM3SAFL ship from, and how fast?

TM3SAFL ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
