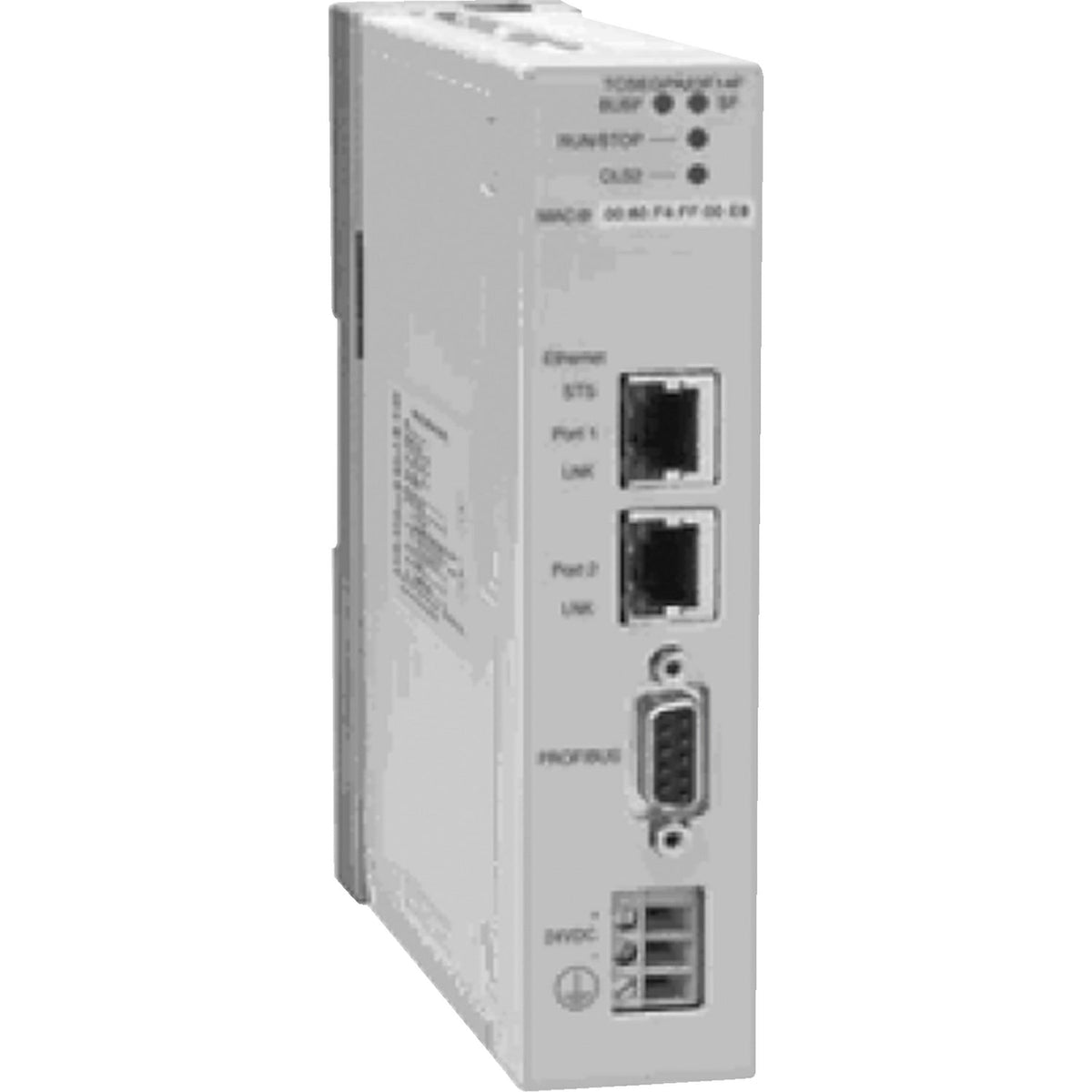

The Schneider Electric TCSEGPA23F14FK is a conformal-coated Profibus DP V1 remote master that bridges an Ethernet Modbus TCP/IP network to Profibus DP V1 field devices for Modicon M340, M580 and Quantum PLCs. It acts as Profibus class 1 and class 2 master for up to 126 slave devices and operates across an extended -25 to 70°C ambient range.
Specify the TCSEGPA23F14FK, the conformal-coated version of this Profibus DP V1 remote master, where the cabinet sees condensation, dust or a corrosive atmosphere — the Humiseal 1A33 coating and extended -25 to 70°C ambient rating cover installations the standard module is not rated for. Both variants share the same 126-device, class 1/2 Profibus master function and 2-port Ethernet Modbus TCP gateway, so the uncoated module remains the choice for a clean control room.
As a class 1 Profibus master, the module checks slave configuration at power-up, reads and writes DP slave I/O data, sets slave parameters, and transfers slave diagnostic data; as a class 2 master it issues Global CONTROL and Get Master Diag monitoring requests and performs acyclic DP V1 parameter reads and writes. It ships with two configuration DTM files on CD, one for the Modbus TCP communication channel and one for the PRM master itself, for use inside Unity software.
| Range of Product | Profibus DP |
|---|---|
| Product or Component Type | Profibus DP V1 remote master |
| Kit composition | CD including the communication DTM, CD including the Master DTM for PRM configuration inside UNITY |
| Communication gateway | Ethernet Modbus TCP to Profibus DP V1 gateway |
| Product Compatibility | M580 PLC, Premium PLC, M340 PLC, Quantum PLC |
| Structure type | Industrial bus |
| Physical interface | RS485 |
|---|---|
| Method of access | Master class 1 Profibus DP, Master class 2 Profibus DP, Slave Modbus TCP |
| Mode of Transmission | NRZ |
| Transmission support medium | Profibus 2 twisted shielded pairs cable, Modbus TCP category 5 shielded twisted pair (STP) |
| Transmission rate | 12 Mbit/s, 328.08 ft (100 m) Profibus without repeater, 12 Mbit/s, 1312.3 ft (400 m) Profibus with 3 repeaters, 9.6 kbit/s, 3937.008 ft (1200 m) Profibus without repeater, 9.6 kbit/s, 15748.03 ft (4800 m) Profibus with 3 repeaters, 10...100 Mbit/s, 328.08 ft (100 m) Modbus TCP without repeater |
| Number of server device(s) | 126 |
| Number of inputs | 2 |
| Number of outputs | 2 |
| Communication service | Check slave configuration (on power up) class 1 master, Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, No master/master dialogue class 2 master, Profibus FMS message handling not supported class 1 master, Profibus FMS message handling not supported class 2 master, Read/write DP slave I/O data class 1 master, Set slave parameters (on power up) class 1 master, Transfer slave diagnostic data class 1 master, Sync and freeze class 1 master, Acyclic DP V1 communication (R/W) class 1/2 master |
| Integrated connection type | 2 Ethernet TCP/IP - RJ45 Modbus TCP, Profibus DP - SUB-D 9 Profibus DP V1 |
| Current consumption | 200 mA 24 V DC external |
| Module format | Standard |
| Net Weight | 1.37 lb(US) (0.62 kg) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient Air Temperature for Storage | -49…185 °F (-45…85 °C) |
| Relative Humidity | 10…95 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Protective treatment | Conformal coating Humiseal 1A33 |
| Part number | TCSEGPA23F14FK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| Last order date | 1 Dec 2027 · as announced for Türkiye, our sourcing market |
| EAN | 3595864068817 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CA |
|---|---|
| Shipping weight | 0.62 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
