Part number
TCSEGPA23F14F
$1,840.58 On request Dispatch — · From TürkiyeGet a Quote
Manufacturer phase-out

Schneider Electric has announced the end of TCSEGPA23F14F

Last orders until 1 Dec 2027. After that date, supply depends on remaining stock. Date announced by Schneider Electric for Türkiye, where we source this part.

No replacement announced yet. Tell us the application and we will propose an alternative.

Profibus DP

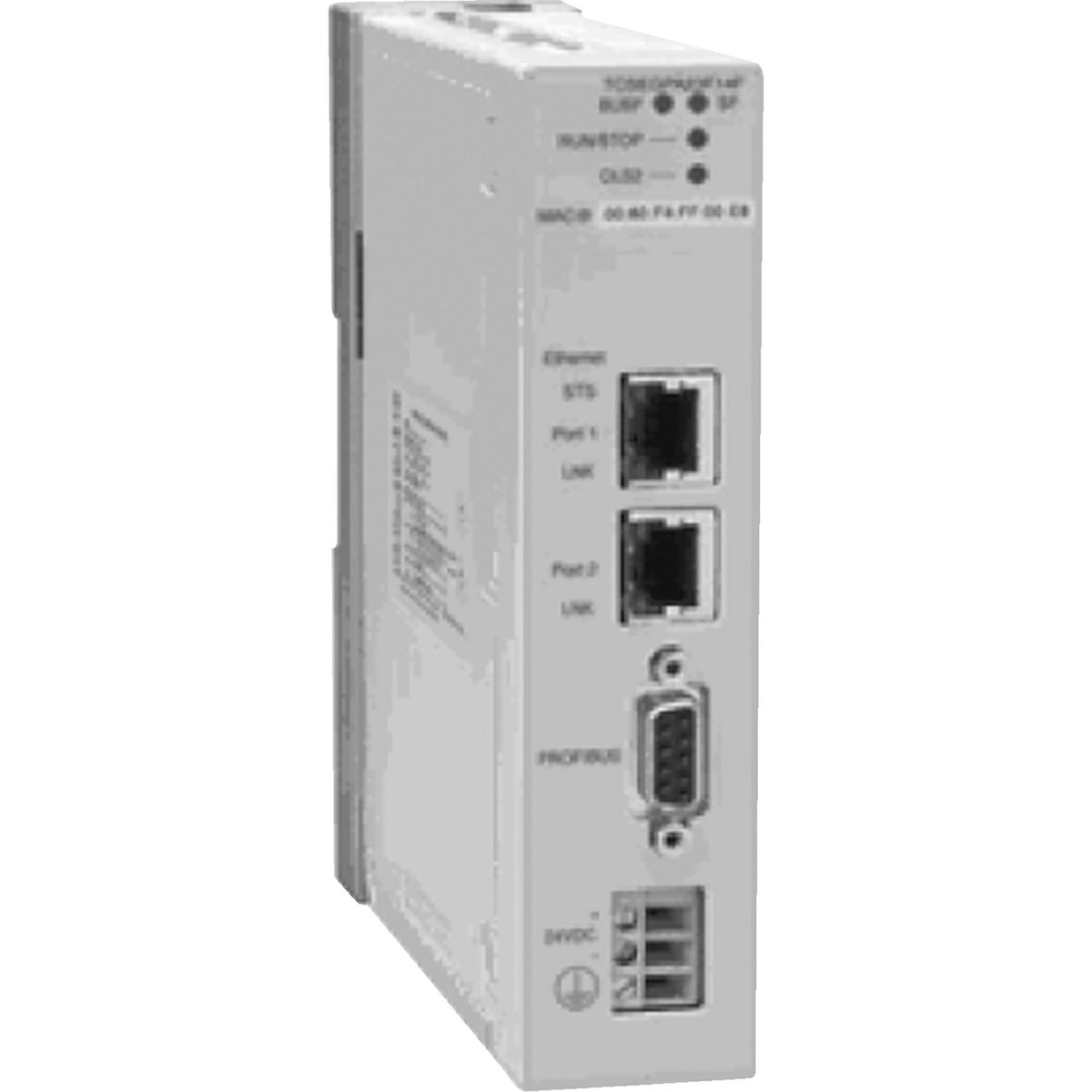

Schneider Electric TCSEGPA23F14F Profibus DP V1 Remote Master M340 M580 Quantum PLC Communication Module

Profibus DP V1 remote master, Ethernet Modbus TCP gateway for Modicon M340, M580, Quantum PLCs.

Communication
Ethernet Modbus TCP/IP, Profibus DP V1
EAN
3595864068800
Description

About the TCSEGPA23F14F

The Schneider Electric TCSEGPA23F14F is a Profibus DP V1 remote master that bridges an Ethernet Modbus TCP/IP network to Profibus DP V1 field devices for Modicon M340, M580 and Quantum PLCs. It acts as Profibus class 1 and class 2 master for up to 126 slave devices, connecting through an integrated 2-port Ethernet switch and a Profibus Sub-D 9 port, and reaches 12 Mbit/s over 100 m without a repeater.

Selection Notes

Specify the TCSEGPA23F14F for Profibus DP V1 networks that need an Ethernet Modbus TCP/IP gateway into Modicon M340, M580 or Quantum I/O scanners — its 2-port Ethernet switch lets it daisy-chain on the control network without a separate switch, and its class 1/2 Profibus master function handles both cyclic I/O exchange and acyclic DP V1 parameter reads. For enclosures with conformal-coating or extended -25 to 70°C ambient requirements, the coated variant of this module is the one to choose instead.

Applications

As a class 1 Profibus master, the module checks slave configuration at power-up, reads and writes DP slave I/O data, sets slave parameters, and transfers slave diagnostic data; as a class 2 master it issues Global CONTROL and Get Master Diag monitoring requests and performs acyclic DP V1 parameter reads and writes. It ships with two configuration DTM files on CD, one for the Modbus TCP communication channel and one for the PRM master itself, for use inside Unity software.

Specification

Full specification

37 values · Last verified 30 Oct 2026

Main 6

Range of Product Profibus DP
Product or Component Type Profibus DP V1 remote master
Kit composition CD including the communication DTM, CD including the Master DTM for PRM configuration inside UNITY
Communication gateway Ethernet Modbus TCP to Profibus DP V1 gateway
Product Compatibility M340 PLC, M580 PLC, Quantum PLC, Premium PLC
Structure type Industrial bus

Complementary 13

Physical interface RS485
Method of access Master class 1 Profibus DP, Master class 2 Profibus DP, Slave Modbus TCP
Mode of Transmission NRZ
Transmission support medium Profibus 2 twisted shielded pairs cable, Modbus TCP category 5 shielded twisted pair (STP)
Transmission rate 12 Mbit/s, 328.08 ft (100 m) Profibus without repeater, 12 Mbit/s, 1312.3 ft (400 m) Profibus with 3 repeaters, 9.6 kbit/s, 3937.008 ft (1200 m) Profibus without repeater, 9.6 kbit/s, 15748.03 ft (4800 m) Profibus with 3 repeaters, 10...100 Mbit/s, 328.08 ft (100 m) Modbus TCP without repeater
Number of server device(s) 126
Number of inputs 2
Number of outputs 2
Communication service Check slave configuration (on power up) class 1 master, Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, No master/master dialogue class 2 master, Profibus FMS message handling not supported class 1 master, Profibus FMS message handling not supported class 2 master, Read/write DP slave I/O data class 1 master, Set slave parameters (on power up) class 1 master, Transfer slave diagnostic data class 1 master, Sync and freeze class 1 master, Acyclic DP V1 communication (R/W) class 1/2 master
Integrated connection type 2 Ethernet TCP/IP - RJ45 Modbus TCP, Profibus DP - SUB-D 9 Profibus DP V1
Current consumption 200 mA 24 V DC external
Module format Standard
Net Weight 1.37 lb(US) (0.62 kg)

Environment 4

Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage -49…185 °F (-45…85 °C)
Relative Humidity 10…95 % without condensation
Operating altitude <= 6561.68 ft (2000 m)
Show all 37 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number TCSEGPA23F14F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
Last order date 1 Dec 2027 · as announced for Türkiye, our sourcing market
EAN 3595864068800

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CA
Shipping weight 0.62 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for TCSEGPA23F14F

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the TCSEGPA23F14F

What is the HS code of TCSEGPA23F14F for customs?

The tariff (HS) code on file for TCSEGPA23F14F is 851762.

What is the EAN of TCSEGPA23F14F?

The EAN (GTIN) of TCSEGPA23F14F is 3595864068800.

Where does TCSEGPA23F14F ship from, and how fast?

TCSEGPA23F14F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
