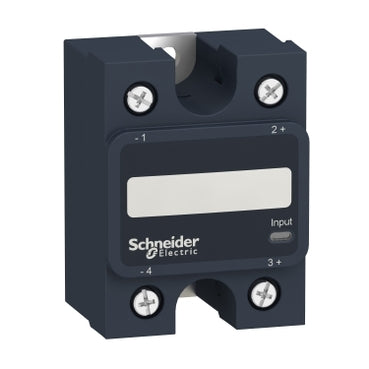

Schneider Electric SSP1A475M7T Harmony SSP1 75 A Zero-Voltage Switching Solid State Relay
Harmony SSP1 solid state relay, 75 A, zero-voltage switching, 90-280 V AC input, 48-660 V AC output, panel mount.
Description
About the SSP1
About the SSP1
The Schneider Electric SSP1A475M7T is a Harmony SSP1 single-phase solid state relay rated 75 A, panel mounted with a supplied thermal pad. It switches a 48-660 V AC load from a 90-280 V AC control input using zero-voltage switching, with a 25 ms turn-on and 30 ms turn-off response time and no mechanical contacts to wear.
Certifications & Standards
- EAC
- CE
- UL
- CSA
- UL 508
- CSA C22.2 No 14-13
- IEC 60950-1
- IEC 62314
Selection Notes
With a 90-280 V AC control input, the SSP1A475M7T is the variant for panels where the control signal comes from line-voltage logic, a PLC AC output or a thermostat rather than low-voltage DC; the BDT-suffix variant in the same SSP1 range takes a 4-32 V DC input instead. Zero-voltage switching turns the SCR on only as the load waveform crosses zero, which limits inrush-related electrical noise and is the reason this relay is specified over a mechanical contactor for resistive heating loads that switch frequently. The 75 A rating and supplied thermal pad size the heatsink interface for continuous duty at rated current; derate the load current for higher ambient or reduced heatsink area.
Applications
Used to switch resistive heating elements, single-phase motor loads and other high-cycle AC loads from line-voltage AC control signals without contact wear.
Specification
Full specification
Main 8
| Range of Product | Harmony Solid State Relays |
|---|---|
| Provided accessory | Thermal pad |
| Product or Component Type | Panel mount relay |
| Device short name | SSP1 |
| Number of phases | 1 phase |
| Line Rated Current | 75 A |
| Solid state output type | SCR output, Zero voltage switching |
| Output switching mode | Zero voltage switching |
Complementary 30
| test button | Without test button |
|---|---|
| [Uc] control circuit voltage | 90...280 V AC |
| Minimum switching voltage | 90 V AC turn-on |
| Maximum switching voltage | 10 V AC turn-off |
| Response time | 30 ms (turn-off), 25 ms (turn-on) |
| Input current | 5…10 mA |
| Output voltage | 48...660 V AC |
| Load current | 0.15…75 A |
| Transient overvoltage | 1200 V |
| Surge current | 1000 A 16.6 ms |
| Maximum I²t for fusing | 4150 A².s for 8.33 ms at 60 Hz, 4555 A².s for 10 ms at 50 Hz |
| Co-ordination type | Type 1 - 50 A miniature circuit breaker (MCB) B, Type 2 - 40 A miniature circuit breaker (MCB) B |
| Maximum leakage current | 1 mA off-state |
| Maximum voltage drop | <1.15 V on-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Power factor | 0.5 (with maximum load) |
| Motor controller rating | 1.5 hp 120 V AC, 3 hp 240 V AC, 7.5 hp 480 V AC |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Maximum capacitance | 8 pF for input/output |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 6 kV output to case, 6 kV input to output |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Connections - terminals | Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, Screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end input, Screw terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end output, Forked type tag connectors 9.2 x 4 mm input, Ring lugs 9.2 x 4 mm input, Forked type tag connectors 11.7 x 4.5 mm output, Ring lugs 11.7 x 4.5 mm output |
| Thermal resistance | 0.3 °C/W junction to case |
| thermal pad impedance | 0.48 °C-in²/W at 25 psi |
| LED indicator | LED, green input |
| IP degree of protection | IP20 |
| Safety reliability data | MTTFd = 1875.9 years, B10d = 1731395 |
| Net Weight | 3.1 oz (89.2 g) |
| Device presentation | Complete product |
Environment 7
| Ambient Air Temperature for Operation | -40…176 °F (-40…80 °C) |
|---|---|
| Ambient Air Temperature for Storage | -40…257 °F (-40…125 °C) |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product Certifications | EAC, CE, UL, CSA |
| Marking | UL, EAC, CSA, CE |
| Standards | UL 508, CSA C22.2 No 14-13, IEC 60950-1, IEC 62314 |
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | SSP1A475M7T |
|---|---|
| Type designation | SSP1 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485442167 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | MX |
|---|---|
| Shipping weight | 0.089 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
