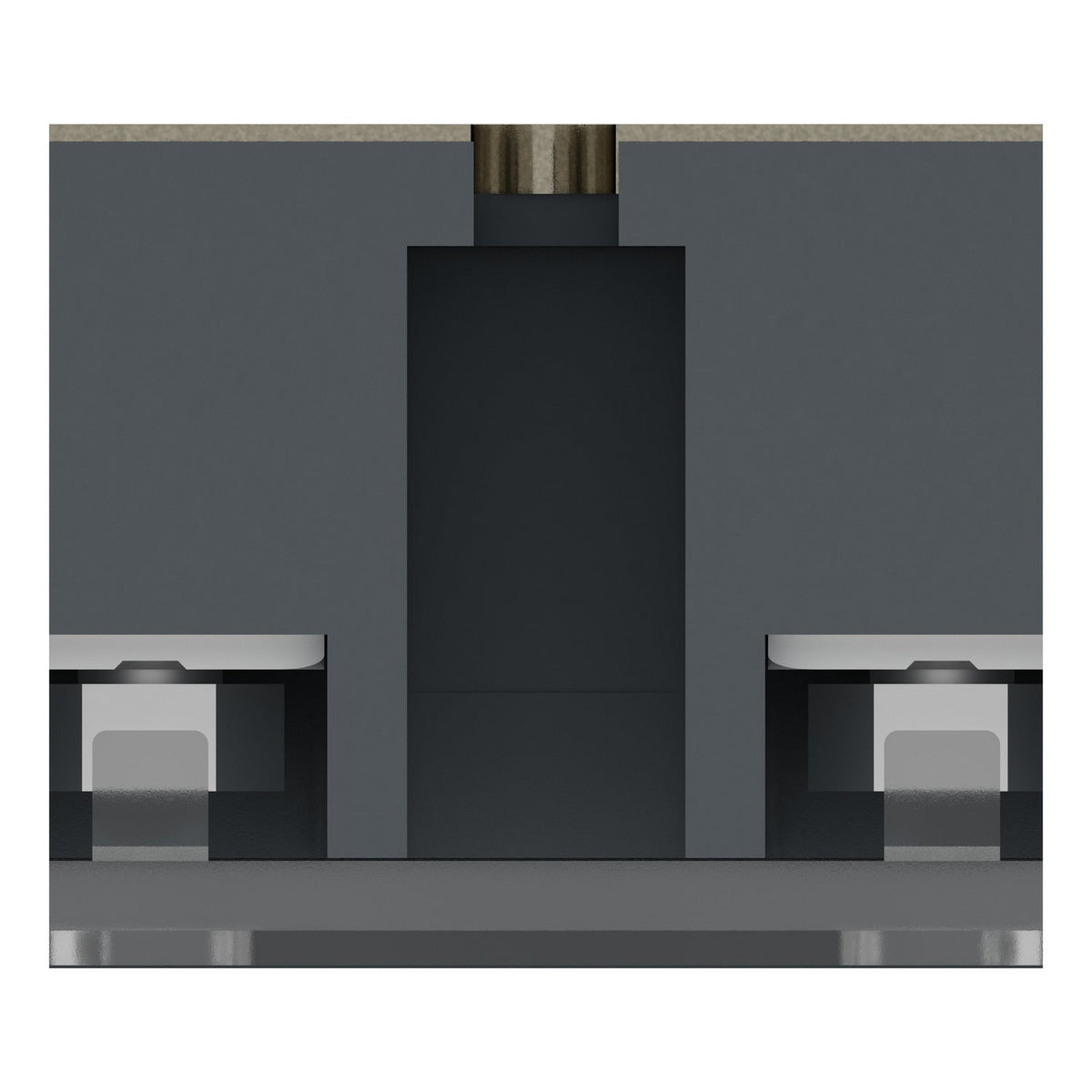

Schneider Electric SSP1A190BDE Easy Harmony Solid State Relay 90 A 24-240 V AC Output Solid State Relay
The Schneider Electric SSP1A190BDE is an Easy Harmony Solid State Relays single-phase panel-mounted relay rated 90 A, switching a 24-240 V AC load wit
Description
About the SSP1E
About the SSP1E
The Schneider Electric SSP1A190BDE is an Easy Harmony Solid State Relays single-phase panel-mounted relay rated 90 A, switching a 24-240 V AC load with zero-voltage switching. It is controlled by a 4-32 V DC input, carries an IP10 rating, and includes a transparent terminal cover and status LED.
Certifications & Standards
- UL
- CE
- UKCA
- TUV
- RoHS
- REACH
- UL 508
- EN/IEC 60947-4-3
- EN/IEC 62314
- CSA C22.2 No 14
Selection Notes
The SSP1A190BDE's 90 A rating is the second-highest in the Easy Harmony panel-mount family; step down to the SSP1A175BDE (75 A) or up to the SSP1A1125BDE (125 A) as the load changes.
Specification
Full specification
Main 10
| Range of Product | Harmony Solid State Relays |
|---|---|
| Provided accessory | Thermal pad |
| Product or Component Type | Solid state relay up to 90 A |
| Device short name | SSP1E |
| Mounting Support | Panel |
| Number of phases | 1 phase |
| Contacts type and conifguration | 1 NO |
| Line Rated Current | 90 A |
| Solid state output type | SCR output |
| Output switching mode | Zero voltage switching |
Complementary 25
| test button | Electronic controller |
|---|---|
| [Uc] control circuit voltage | 4...32 V DC |
| Minimum switching voltage | 4 V DC turn-on |
| Maximum switching voltage | 2 V DC turn-off |
| Response time | 0.5 cycle (turn-on) |
| Load current | 1…90 A |
| Transient overvoltage | 530 V |
| Surge current | 900 A 1/2 Cycle |
| Maximum I²t for fusing | 4600 A².s for 10 ms at 50 Hz |
| Maximum leakage current | 1 mA off-state |
| Maximum voltage drop | <1.6 V on-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Power factor | 0.8 (with maximum load) |
| Insulation resistance | 500 MOhm at 500 V DC |
| Dielectric strength | 3.8 kV AC for input/output, 2 kV AC for output connection |
| [Uimp] rated impulse withstand voltage | 8 kV output to case, 6 kV input to output |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.4 N.m for output |
| Connections - terminals | Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end, Screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end, Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end, Screw terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end, Forked type tag connectors 9.2 x 4 mm, Ring lugs 9.2 x 4 mm, Forked type tag connectors 11.7 x 4.5 mm, Ring lugs 11.7 x 4.5 mm |
| LED indicator | LED, green input |
| IP degree of protection | IP10 |
| Net Weight | 4.06 oz (115 g) |
| Width | 2.3 in (59 mm) |
| Height | 1.8 in (45 mm) |
| Depth | 1.1 in (29 mm) |
| Device presentation | Complete product |
Environment 7
| Ambient Air Temperature for Operation | -22…176 °F (-30…80 °C) |
|---|---|
| Ambient Air Temperature for Storage | -22…212 °F (-30…100 °C) |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product Certifications | UL, CE, UKCA, TÜV, RoHS, REACH |
| Marking | UL, CE, UKCA, TÜV |
| Standards | UL 508, EN/IEC 60947-4-3, EN/IEC 62314, CSA C22.2 No 14 |
Show all 56 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | SSP1A190BDE |
|---|---|
| Type designation | SSP1E |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606487050650 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.115 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
