Schneider Electric SSP1A1125BDE Easy Harmony Solid State Relay 125 A 24-240 V AC Output Solid State Relay

% $-38.52

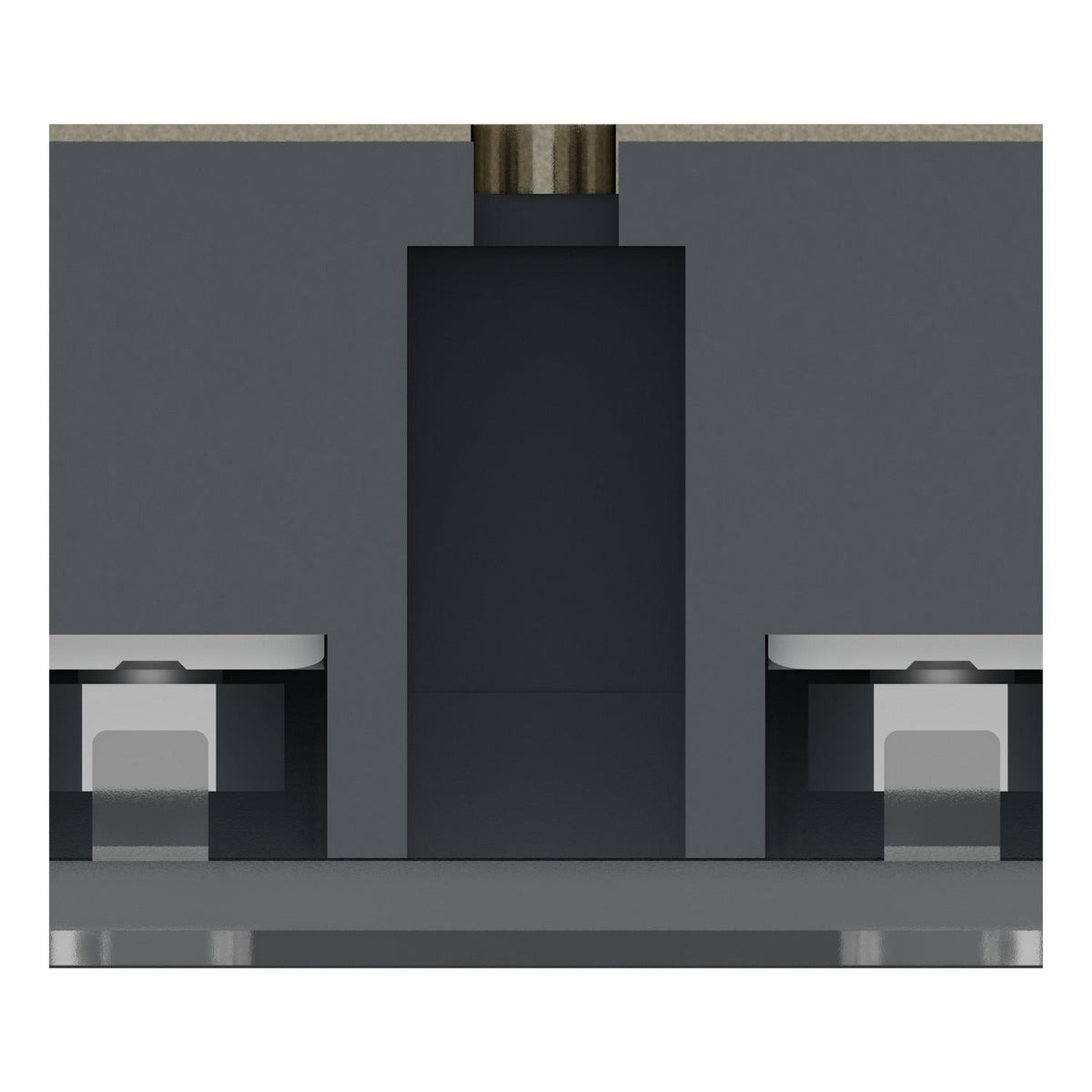

Schneider Electric SSP1A1125BDE Easy Harmony panel solid state relay 125A
Schneider Electric SSP1A1125BDE Easy Harmony panel solid state relay 125A

Schneider Electric SSP1A1125BDE Easy Harmony Solid State Relay 125 A 24-240 V AC Output Solid State Relay

Brand: Schneider Electric
Reference No: SSP1A1125BDE
Catalog No: SSP1A1125BDE
Series: Harmony Solid State Relays
Tariff Code (HS): 853649
Rated Current: 125 A
Rated Voltage: 24-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$38.52

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric SSP1A1125BDE is an Easy Harmony Solid State Relays single-phase panel-mounted relay rated 125 A, switching a 24-240 V AC load with zero-voltage switching. It is controlled by a 4-32 V DC input, carries an IP10 rating, and includes a transparent terminal cover and status LED.

Technical Specifications

Reference SSP1A1125BDE
Brand Schneider Electric
Range Easy Harmony Solid State Relays
Device Short Name SSP1E
Product Type Solid state relay up to 125 A
Mounting Panel
Number of Phases 1 phase
Contacts 1 NO
Rated Current 125 A
Solid State Output Type SCR output
Output Switching Mode Zero voltage switching
Control Circuit Voltage (Uc) 4-32 V DC
Load Current Range 1-125 A
Response Time 0.5 cycle (turn-on)
Transient Overvoltage 530 V
Surge Current 1250 A (1/2 cycle)
Maximum Leakage Current 1 mA off-state
Maximum Voltage Drop <1.6 V on-state
Insulation Resistance 500 MOhm at 500 V DC
Dielectric Strength 3.8 kV AC input/output
Rated Impulse Withstand Voltage (Uimp) 8 kV output-case / 6 kV input-output
IP Degree of Protection IP10
Dimensions (W x H x D) 59 x 45 x 29 mm
Net Weight 115 g
Ambient Air Temperature (Operation) -30 to 80 degC

Certifications & Standards

  • UL
  • CE
  • UKCA
  • TUV
  • RoHS
  • REACH
  • UL 508
  • EN/IEC 60947-4-3
  • EN/IEC 62314
  • CSA C22.2 No 14

Selection Notes

The SSP1A1125BDE's 125 A rating is the top of the Easy Harmony panel-mount SSR family, suited to heavier single-phase heating loads; for currents at or below 90 A, the SSP1A190BDE, SSP1A175BDE, SSP1A150BDE, SSP1A125BDE or SSP1A110BDE variants apply.

Technical Details

Short Description
The Schneider Electric SSP1A1125BDE is an Easy Harmony Solid State Relays single-phase panel-mounted relay rated 125 A, switching a 24-240 V AC load w
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
24-240 V AC
Mounting Type
Panel
Protection Type
IP10
Catalog No
SSP1A1125BDE
Delivery Date (Days)
30 days
Model Number
SSP1E
Tariff Code
853649
