Part number
SSP1A150M7T
Model no
SSP1
$66.10 On request Dispatch — · From TürkiyeGet a Quote

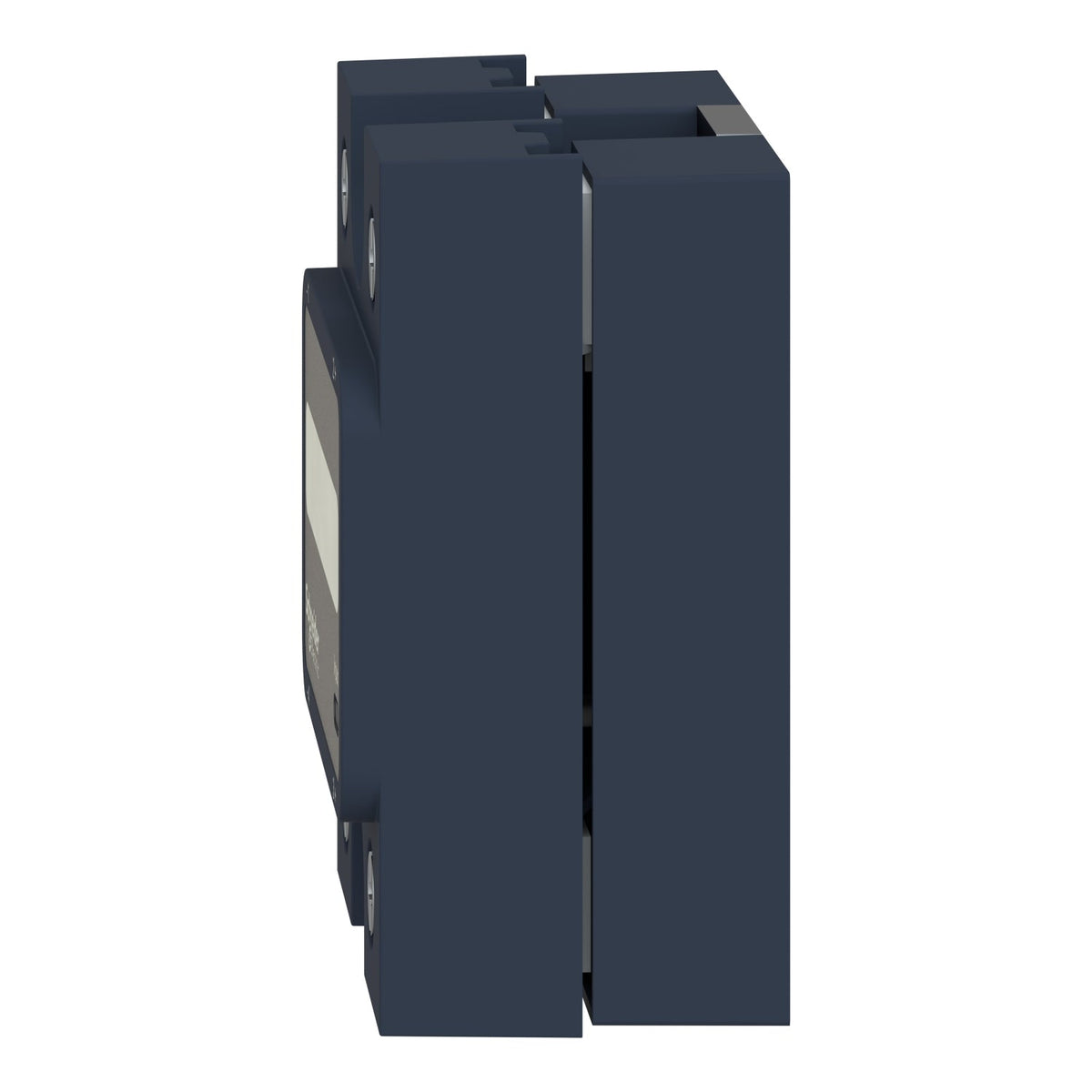

Schneider Electric SSP1A150M7T Harmony Solid State Relay 50 A 24-300 V AC Output Solid State Relay

The Schneider Electric SSP1A150M7T is a Harmony Solid State Relays single-phase panel-mounted relay rated 50 A, switching a 24-300 V AC load with zero

Rated current
50 A
Rated operational voltage
24–300 V AC
EAN
3606485442136
Description

About the SSP1

The Schneider Electric SSP1A150M7T is a Harmony Solid State Relays single-phase panel-mounted relay rated 50 A, switching a 24-300 V AC load with zero-voltage switching. It accepts a 90-280 V AC control input, includes a thermal pad and alarm output, and carries an IP20 rating.

Certifications & Standards

  • UL
  • CSA
  • CE
  • EAC
  • UL 508
  • CSA C22.2 No 14-13
  • IEC 60950-1
  • IEC 62314

Selection Notes

The SSP1A150M7T's 90-280 V AC control input suits line-voltage control signals; choose the Easy Harmony SSP1A150BDE instead when control is a 4-32 V DC signal from a PLC output.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 8

Range of Product Harmony Solid State Relays
Provided accessory Thermal pad
Product or Component Type Panel mount relay
Device short name SSP1
Number of phases 1 phase
Line Rated Current 50 A
Solid state output type Zero voltage switching, SCR output
Output switching mode Zero voltage switching

Complementary 30

test button Without test button
[Uc] control circuit voltage 90...280 V AC
Minimum switching voltage 90 V AC turn-on
Maximum switching voltage 10 V AC turn-off
Response time 30 ms (turn-off), 25 ms (turn-on)
Input current 5…10 mA
Output voltage 24...300 V AC
Load current 0.15…50 A
Transient overvoltage 600 V
Surge current 625 A 16.6 ms
Maximum I²t for fusing 1621 A².s for 8.33 ms at 60 Hz, 1770 A².s for 10 ms at 50 Hz
Co-ordination type Type 1 - 40 A miniature circuit breaker (MCB) B, Type 2 - 32 A miniature circuit breaker (MCB) B
Maximum leakage current 1 mA off-state
Maximum voltage drop <1.15 V on-state
DV/dt 500 V/µs off-state at maximum voltage
Power factor 0.5 (with maximum load)
Motor controller rating 0.75 hp 120 V AC, 2 hp 240 V AC
Insulation resistance 1000 MOhm at 500 V DC
Maximum capacitance 8 pF for input/output
Dielectric strength 4 kV AC for input/output, 4 kV AC for input or output to case
[Uimp] rated impulse withstand voltage 6 kV output to case, 6 kV input to output
Tightening torque 1.5...1.7 N.m for input, 2...2.2 N.m for output
Connections - terminals Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, Screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end input, Screw terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end output, Forked type tag connectors 9.2 x 4 mm input, Ring lugs 9.2 x 4 mm input, Forked type tag connectors 11.7 x 4.5 mm output, Ring lugs 11.7 x 4.5 mm output
Thermal resistance 0.45 °C/W junction to case
thermal pad impedance 0.48 °C-in²/W at 25 psi
LED indicator LED, green input
IP degree of protection IP20
Safety reliability data MTTFd = 1875.9 years, B10d = 1731395
Net Weight 3.1 oz (89.2 g)
Device presentation Complete product

Environment 7

Ambient Air Temperature for Operation -40…176 °F (-40…80 °C)
Ambient Air Temperature for Storage -40…257 °F (-40…125 °C)
Pollution degree 2
Overvoltage category III
Product Certifications UL, CSA, CE, EAC
Marking CE, UL, CSA, EAC
Standards UL 508, CSA C22.2 No 14-13, IEC 60950-1, IEC 62314
Show all 59 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number SSP1A150M7T
Type designation SSP1
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485442136

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin MX
Shipping weight 0.089 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for SSP1A150M7T

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • EAC
  • UL 508
  • CSA C22.2 No 14-13
  • IEC 60950-1
  • IEC 62314
Quick answers

Questions about the SSP1

What is the rated current of SSP1?

The rated current of SSP1 is 50 A.

Which supply voltage is SSP1 rated for?

The rated operational voltage of SSP1 is 24–300 V AC.

What is the HS code of SSP1 for customs?

The tariff (HS) code on file for SSP1 is 853649.

What is the EAN of SSP1?

The EAN (GTIN) of SSP1 is 3606485442136.

Where does SSP1 ship from, and how fast?

SSP1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
