Part number
SSP1A125BDE
Model no
SSP1E
$25.62 On request Dispatch — · From TürkiyeGet a Quote

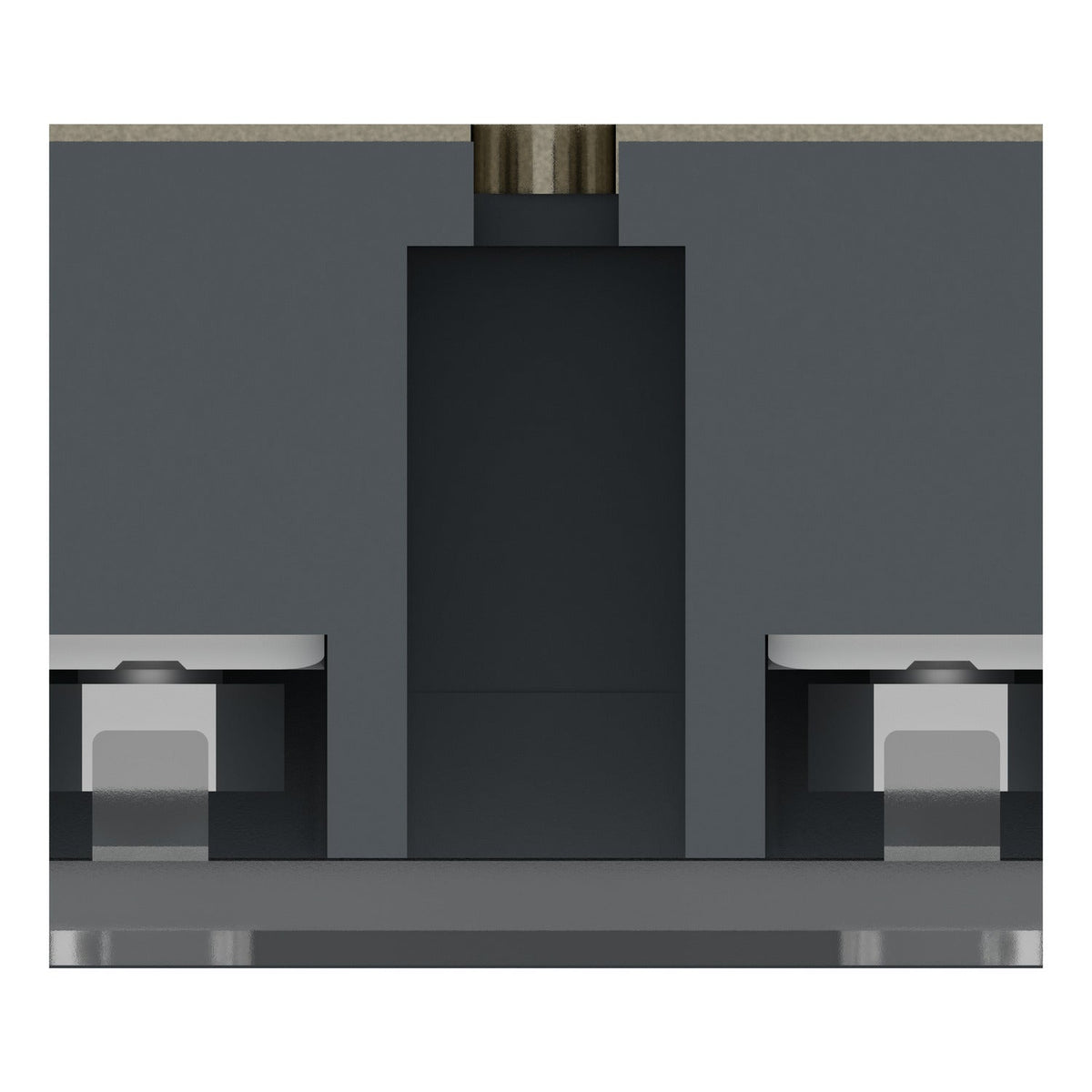

Schneider Electric SSP1A125BDE Easy Harmony Solid State Relay 25 A 24-240 V AC Output Solid State Relay

The Schneider Electric SSP1A125BDE is an Easy Harmony Solid State Relays single-phase panel-mounted relay rated 25 A, switching a 24-240 V AC load wit

Rated current
25 A
Rated operational voltage
24–240 V AC
EAN
3606487050629
Description

About the SSP1E

The Schneider Electric SSP1A125BDE is an Easy Harmony Solid State Relays single-phase panel-mounted relay rated 25 A, switching a 24-240 V AC load with zero-voltage switching. It is controlled by a 4-32 V DC input, carries an IP10 rating, and includes a transparent terminal cover and status LED.

Certifications & Standards

  • UL
  • CE
  • UKCA
  • TUV
  • RoHS
  • REACH
  • UL 508
  • EN/IEC 60947-4-3
  • EN/IEC 62314
  • CSA C22.2 No 14

Selection Notes

The SSP1A125BDE's 25 A rating fits mid-range resistive heating loads; step down to the SSP1A110BDE (10 A) or up to the SSP1A150BDE (50 A), SSP1A175BDE (75 A) and SSP1A190BDE (90 A) within the same Easy Harmony panel-mount family as the load changes.

Specification

Full specification

56 values · Last verified 30 Oct 2026

Main 10

Range of Product Harmony Solid State Relays
Provided accessory Thermal pad
Product or Component Type Solid state relay up to 25 A
Device short name SSP1E
Mounting Support Panel
Number of phases 1 phase
Contacts type and conifguration 1 NO
Line Rated Current 25 A
Solid state output type SCR output
Output switching mode Zero voltage switching

Complementary 25

test button Electronic controller
[Uc] control circuit voltage 4...32 V DC
Minimum switching voltage 4 V DC turn-on
Maximum switching voltage 2 V DC turn-off
Response time 0.5 cycle (turn-on)
Load current 0.1…25 A
Transient overvoltage 530 V
Surge current 250 A 1/2 Cycle
Maximum I²t for fusing 900 A².s for 10 ms at 50 Hz
Maximum leakage current 1 mA off-state
Maximum voltage drop <1.6 V on-state
DV/dt 500 V/µs off-state at maximum voltage
Power factor 0.8 (with maximum load)
Insulation resistance 500 MOhm at 500 V DC
Dielectric strength 3.8 kV AC for input/output, 2 kV AC for output connection
[Uimp] rated impulse withstand voltage 8 kV output to case, 6 kV input to output
Tightening torque 1.5...1.7 N.m for input, 2...2.4 N.m for output
Connections - terminals Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end, Screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end, Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end, Screw terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end, Forked type tag connectors 9.2 x 4 mm, Ring lugs 9.2 x 4 mm, Forked type tag connectors 11.7 x 4.5 mm, Ring lugs 11.7 x 4.5 mm
LED indicator LED, green input
IP degree of protection IP10
Net Weight 4.06 oz (115 g)
Width 2.3 in (59 mm)
Height 1.8 in (45 mm)
Depth 1.1 in (29 mm)
Device presentation Complete product

Environment 7

Ambient Air Temperature for Operation -22…176 °F (-30…80 °C)
Ambient Air Temperature for Storage -22…212 °F (-30…100 °C)
Pollution degree 2
Overvoltage category III
Product Certifications UL, CE, UKCA, TÜV, RoHS, REACH
Marking UL, CE, UKCA, TÜV
Standards UL 508, EN/IEC 60947-4-3, EN/IEC 62314, CSA C22.2 No 14
Show all 56 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number SSP1A125BDE
Type designation SSP1E
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487050629

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.115 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for SSP1A125BDE

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • UKCA
  • RoHS
  • REACH
  • UL 508
  • EN/IEC 60947-4-3
  • EN/IEC 62314
  • CSA C22.2 No 14
Quick answers

Questions about the SSP1E

What is the rated current of SSP1E?

The rated current of SSP1E is 25 A.

Which supply voltage is SSP1E rated for?

The rated operational voltage of SSP1E is 24–240 V AC.

What is the HS code of SSP1E for customs?

The tariff (HS) code on file for SSP1E is 853649.

What is the EAN of SSP1E?

The EAN (GTIN) of SSP1E is 3606487050629.

Where does SSP1E ship from, and how fast?

SSP1E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
