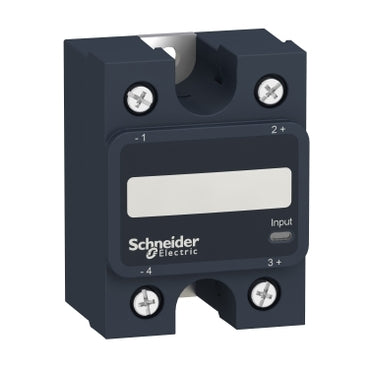

Schneider Electric SSP1A150BDT Harmony SSP1 50A Panel Mount 3-32V DC In 24-300V AC Out Solid State Relay
Harmony SSP1 panel-mount solid state relay, 50A, zero-voltage switching, 3-32V DC in, 24-300V AC out.
Description
About the SSP1
About the SSP1
The Schneider Electric SSP1A150BDT is a Harmony SSP1 panel-mount solid state relay rated 50 A with zero-voltage switching, a 3-32 V DC control input, and a 24-300 V AC load output. It ships with a thermal pad for heatsink mounting, switches loads up to 2 hp at 240 V AC, and carries an IP20 rating.
Certifications & Standards
- CE
- UL
- EAC
- CSA
- IEC 62314
- CSA C22.2 No 14-13
- IEC 60950-1
- UL 508
Selection Notes
SSP1A150BDT doubles the load current of the 25 A SSP1 sibling in the same panel-mount package, handling motor loads up to 2 hp at 240 V AC. Its lower thermal resistance (0.45 C/W versus 0.8 C/W on the 25 A part) reflects the larger die needed to dissipate heat at 50 A - the same thermal pad interface (0.48 C-in2/W) still applies, but the heatsink must handle roughly double the dissipated power. Surge current (625 A/16.6 ms) and MCB coordination (Type 1: 40 A, Type 2: 32 A) are sized up accordingly for upstream short-circuit protection selection.
Specification
Full specification
Main 9
| Range of Product | Harmony Solid State Relays |
|---|---|
| Provided accessory | Thermal pad |
| Product or Component Type | Panel mount relay |
| Device short name | SSP1 |
| Mounting Support | Panel |
| Number of phases | 1 phase |
| Line Rated Current | 50 A |
| Solid state output type | Zero voltage switching, SCR output |
| Output switching mode | Zero voltage switching |
Complementary 30
| test button | Without test button |
|---|---|
| [Uc] control circuit voltage | 3...32 V DC |
| Minimum switching voltage | 3 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Response time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Input current | 10 mA at 12 V DC |
| Output voltage | 24...300 V AC |
| Load current | 0.15…50 A |
| Transient overvoltage | 600 V |
| Surge current | 625 A 16.6 ms |
| Maximum I²t for fusing | 1621 A².s for 8.33 ms at 60 Hz, 1770 A².s for 10 ms at 50 Hz |
| Co-ordination type | Type 1 - 40 A miniature circuit breaker (MCB) B, Type 2 - 32 A miniature circuit breaker (MCB) B |
| Maximum leakage current | 1 mA off-state |
| Maximum voltage drop | <1.15 V on-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Power factor | 0.5 (with maximum load) |
| Motor controller rating | 0.75 hp 120 V AC, 2 hp 240 V AC |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Maximum capacitance | 10 pF for input/output |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 6 kV output to case, 6 kV input to output |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Connections - terminals | Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, Screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, Screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end input, Screw terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end output, Forked type tag connectors 9.2 x 4 mm input, Ring lugs 9.2 x 4 mm input, Forked type tag connectors 11.7 x 4.5 mm output, Ring lugs 11.7 x 4.5 mm output |
| Thermal resistance | 0.45 °C/W junction to case |
| thermal pad impedance | 0.48 °C-in²/W at 25 psi |
| LED indicator | LED, green input |
| IP degree of protection | IP20 |
| Safety reliability data | MTTFd = 1875.9 years, B10d = 1731395 |
| Net Weight | 3.1 oz (89.2 g) |
| Device presentation | Complete product |
Environment 7
| Ambient Air Temperature for Operation | -40…176 °F (-40…80 °C) |
|---|---|
| Ambient Air Temperature for Storage | -40…257 °F (-40…125 °C) |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product Certifications | CE, UL, EAC, CSA |
| Marking | CE, EAC, CSA, UL |
| Standards | IEC 62314, CSA C22.2 No 14-13, IEC 60950-1, UL 508 |
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | SSP1A150BDT |
|---|---|
| Type designation | SSP1 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485442051 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | MX |
|---|---|
| Shipping weight | 0.089 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
