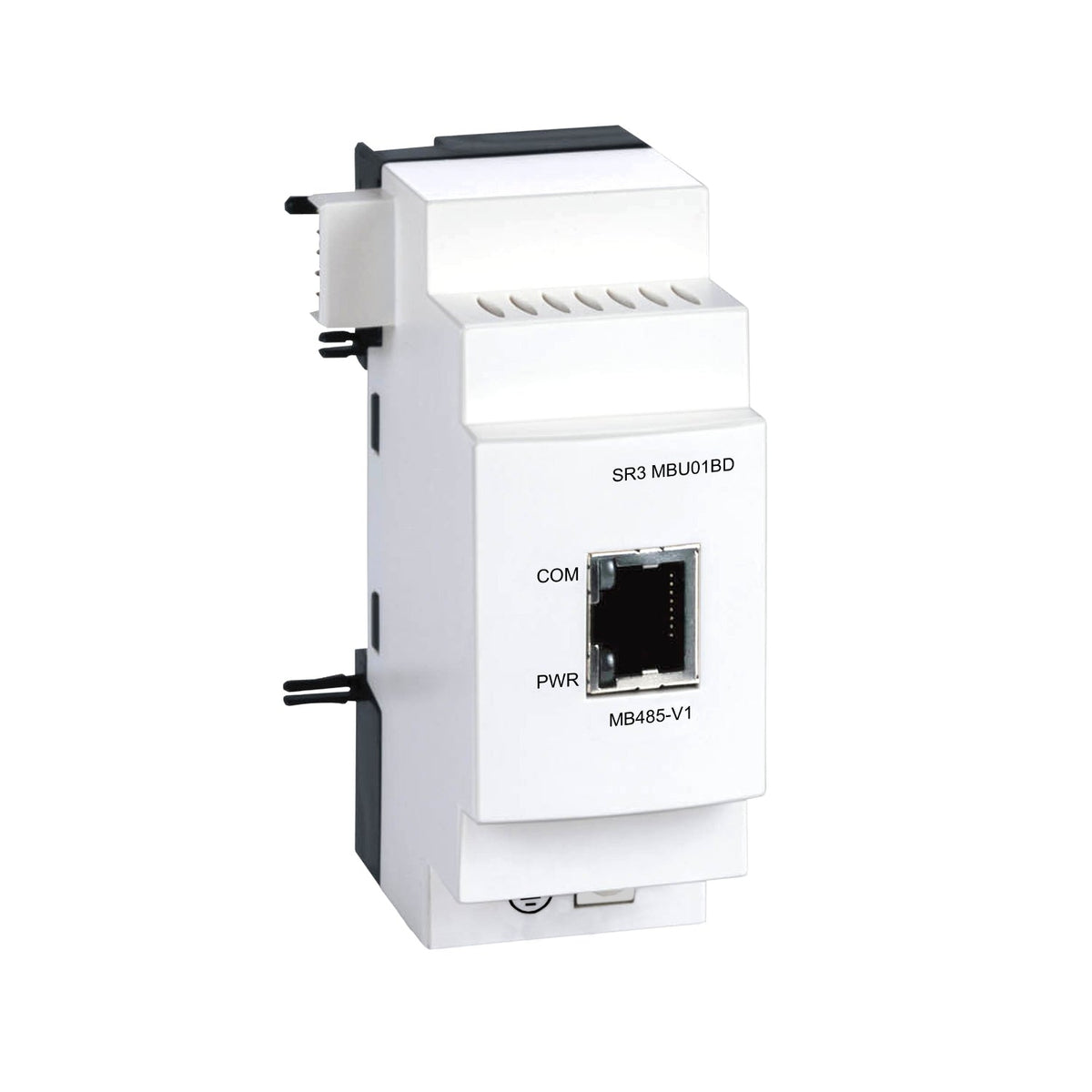

The Schneider Electric SR3MBU01BD is a Modbus slave communication module for the Zelio Logic SR3 range, supplied at 24 V DC and compatible with all 24 V-supply SR3 B...BD base units. It adds RS485 Modbus RTU/ASCII connectivity over an RJ45 port, letting a Zelio Logic relay be monitored and controlled remotely from a Modbus master.
The SR3MBU01BD only fits 24 V DC-supplied SR3 B...BD base units (e.g. SR3B101BD, SR3B261BD) — it is not compatible with the 100–240 V AC FU variants. Its RS485/RJ45 Modbus RTU or ASCII link with up to 247 addresses lets one Zelio Logic relay be polled or written to by a PLC, SCADA or HMI acting as Modbus master, without replacing the relay's I/O wiring.
| Range of Product | Zelio Logic |
|---|---|
| Product or Component Type | Modbus slave communication module |
| Wiring mode | 2 or 4 wires |
| Product Compatibility | All modules with 24 V supply SR3 B...BD |
|---|---|
| Communication Port Protocol | Modbus |
| Communication port support | RS485 |
| Electrical connection | 1 connector RJ45 |
| Transmission frame | RTU, ASCII |
| Transmission Rate | 1200 bauds, 9600 bauds, 38400 bauds, 19200 bauds, 57600 bauds, 28800 bauds, 2400 bauds, 4800 bauds |
| Parity | No, Odd, Even |
| Number of addresses | 1…247 |
| Programming language | FBD, Ladder |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) semi-solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) solid, Screw terminals, 2 x 0.25...2 x 1.5 mm² 23 AWG...16 AWG) solid, Screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Local signalling | 1 LED for communication, 1 LED for power ON |
| Net Weight | 0.24 lb(US) (0.11 kg) |
| Product Certifications | GOST, CSA, GL, C-tick, UL |
|---|---|
| Standards | IEC 60068-2-27 Ea, IEC 61000-4-3, IEC 61000-4-4 level 3, IEC 61000-4-2 level 3, IEC 61000-4-5, IEC 60068-2-6 Fc |
| IP degree of protection | IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel) |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B EN 55022-11 group 1 |
| Pollution degree | 2 IEC 61131-2 |
| Ambient air temperature for operation | -4…104 °F (-20…40 °C) IEC 60068-2-1 and IEC 60068-2-2, -4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Maximum altitude transport | 10000 ft (3048 m) |
| Relative Humidity | 95 % without condensation or dripping water |
| Part number | SR3MBU01BD |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110840339 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
