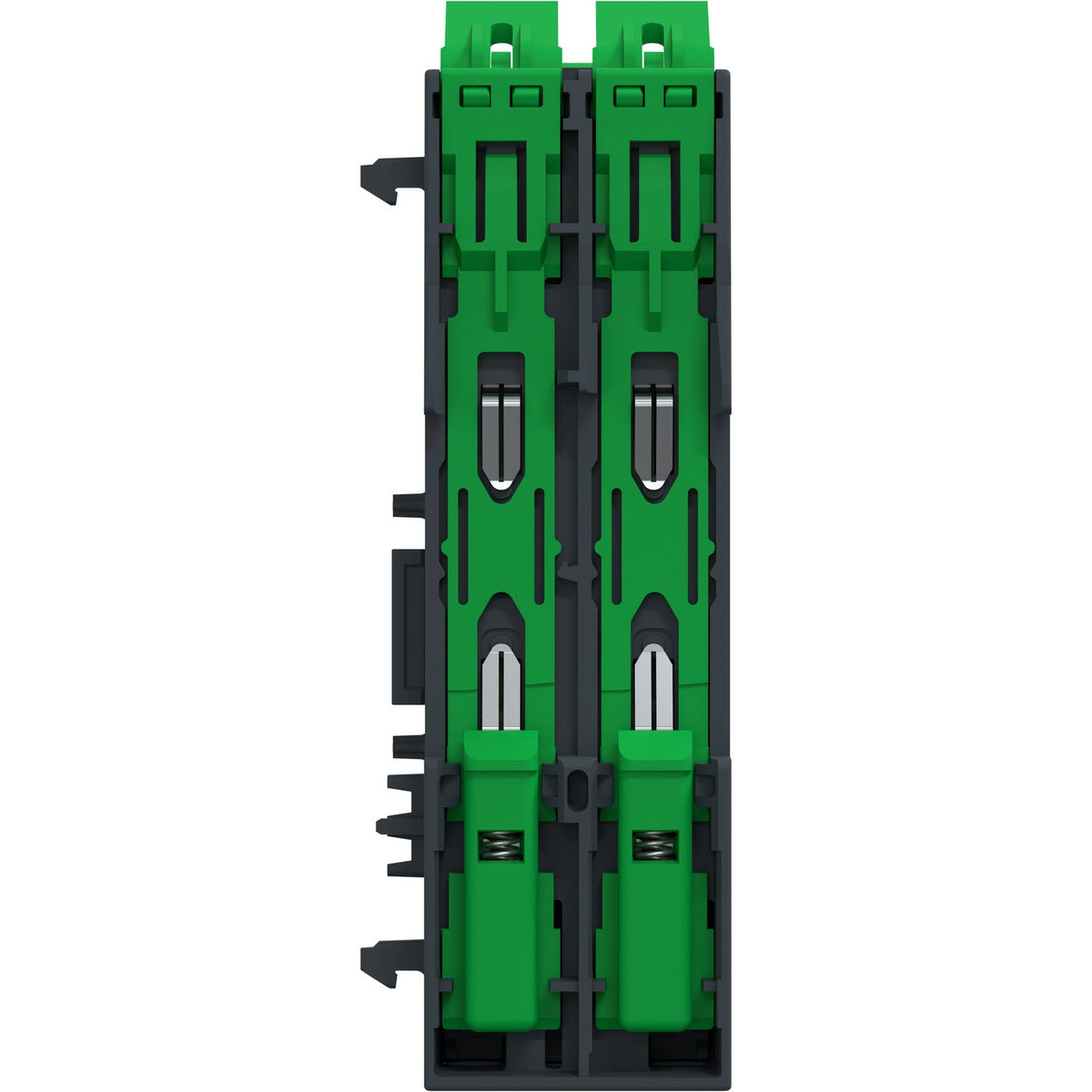

The Schneider Electric NTSNSC1200K is a Modicon Edge I/O NTS network interface module kit that bridges the NTS I/O cluster to a Sercos III motion network, pre-assembled on its NTSXBA0201H base with NTSXMP0000H termination. Two switched, isolated RJ45 ports support line-interactive or ring topologies at 100 Mbit/s, covering a -20...60 degC operating range. It is compatible with the Modicon M262 and PacDrive 3 ranges.
The NTSNSC1200K is the head module for Sercos III motion networks, the correct choice when the NTS I/O cluster feeds a PacDrive 3 or Modicon M262-based motion system rather than a general EtherNet/IP or Modbus TCP network, where the NTSNEC1200K/HK would be used instead. Line-interactive or ring topology support keeps the I/O bus operational if one network segment is interrupted. The 100 Mbit/s rate matches the real-time cycle requirements of Sercos III motion control.
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Network interface module |
| Kit composition | NTSXBA0201H base, NTSXMP0000H termination |
| Product Compatibility | NTSN..... |
| Range Compatibility | Modicon M262, PacDrive 3, Modicon M660 (pending) |
| Integrated connection type | Ethernet port1 / Serco 3, USB 2.0 port |
|---|---|
| Connector type | 2 RJ45 switched ethernet isolated ports, USB type C 1 |
| Exchange mode | Full duplex, Autonegotiation |
| Transmission Rate | 100 Mbit/s |
| Topology | Line interactive, Ring |
| Web server | Embedded |
| Communication Service | Secure boot, Secure storage (via TPM), SCEP client (pending), CAE Support, Secure syslog server (pending), TLS 1.2, Embedded TPM, DPWS (IPv6), Configuration, Web server, FDR client, IPV4, Sercos, OPCUA server (explicit only), SNMP (pending), Crashlog, USB RNDIS |
| Local signalling | 1 LED (green) for RUN, 1 LED (red) for ERR, 1 LED (green/red) for I/O, 1 LED (green/red) for MS, 1 LED (green/red) for cyber security (SEC) |
| Height | 4.6 in (116.6 mm) |
| Width | 1.2 in (30 mm) |
| Depth | 3.3 in (84 mm) |
| Net Weight | 0.730 lb(US) (0.331 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE, UKCA, CULus, RCM |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000 m...5000 m with derating |
| Pollution degree | 2 |
| Part number | NTSNSC1200K |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486878088 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.262 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for NTSNSC1200K is 851762.
The EAN (GTIN) of NTSNSC1200K is 3606486878088.
NTSNSC1200K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
