Modicon Edge I/O NTSSchneider Electric NTSNEC1200HK Modicon Edge I/O NTS EtherNet/IP Modbus TCP Hardened PLC Communication Module
Modicon Edge I/O NTS network interface module, EtherNet/IP and Modbus TCP, 2 RJ45, hardened, IP20.
Description
About the NTSNEC1200HK
About the NTSNEC1200HK

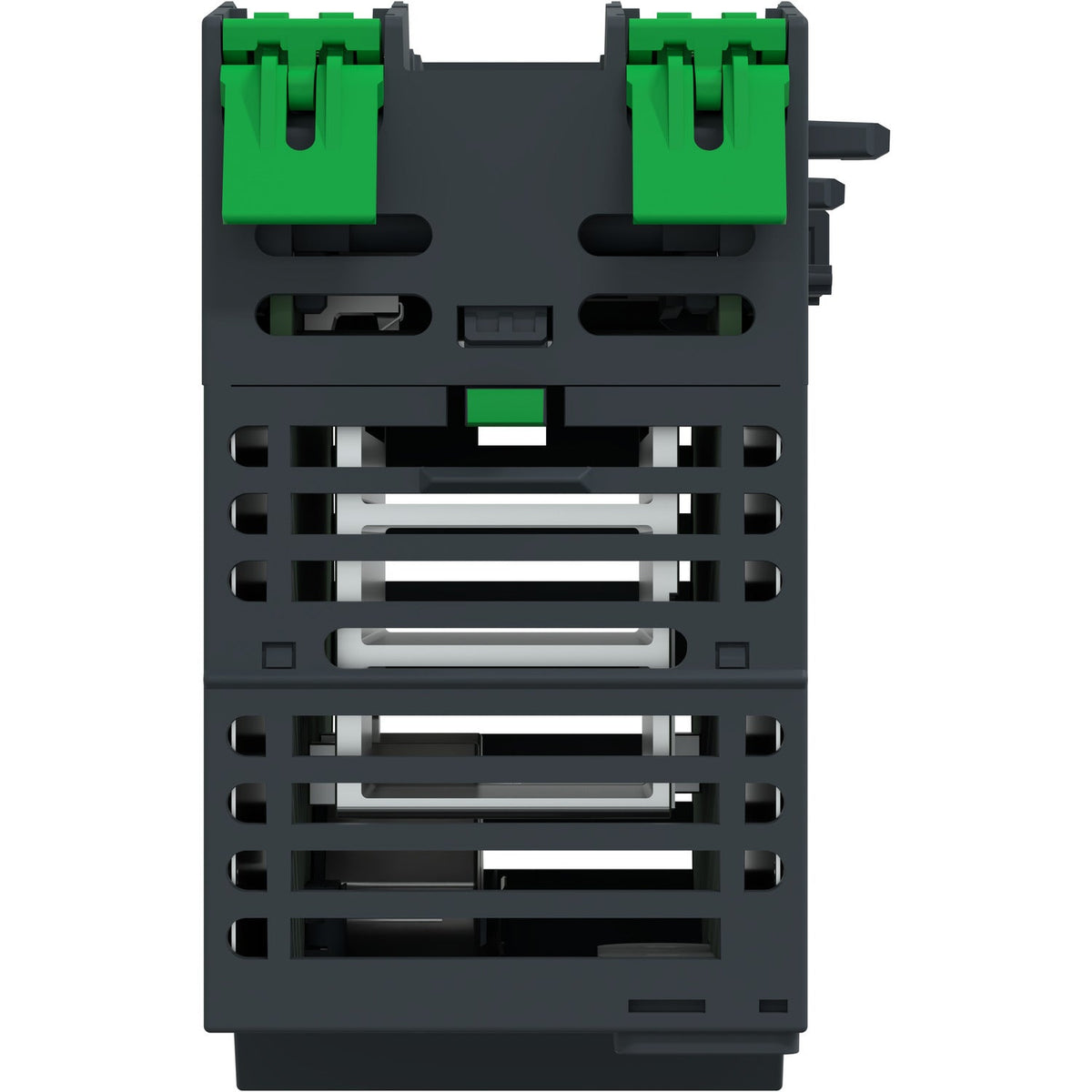

The Schneider Electric NTSNEC1200HK is a Modicon Edge I/O NTS network interface module kit that bridges up to 32 addressable I/O modules to EtherNet/IP and Modbus TCP, pre-assembled on its NTSXBA0301H base with NTSXMP0000H termination for severe-environment use. Two switched, isolated RJ45 ports support daisy-chain, star or ring (RSTP) topologies at 10/100 Mbit/s, running across an extended -40...70 degC range with conformal-coated electronics.
Certifications & Standards
- CE
Selection Notes
The NTSNEC1200HK is the head module of an NTS cluster, converting the EtherNet/IP or Modbus TCP network into the NTS I/O bus that addresses up to 32 downstream discrete, analog, temperature or relay modules. The hardened build's conformal coating and -40...70 degC range are the reason to choose it over the standard NTSNEC1200K in panels exposed to vibration, condensation or wide ambient swings. For a Sercos III motion network instead of EtherNet/IP, the NTSNSC1200K is the matching network interface.
Specification
Full specification
Main 4
| Range of Product | Modicon Edge I/O NTS |
|---|---|
| Product or Component Type | Network interface module |
| Kit composition | NTSNEC1200 NIM, NTSXBA0301H base, NTSXMP0000H termination |
| Range Compatibility | Logic/motion controller - Modicon M262, Modicon M580, Modicon m241 & m251 (pending), Soft dPAC (pending), Third party |
Complementary 13
| Integrated connection type | Ethernet/IP, Modbus TCP, USB 2.0 port |
|---|---|
| Connector type | 2 RJ45 switched ethernet isolated ports, USB type C 1 |
| Exchange mode | Full duplex, Autonegotiation |
| Transmission Rate | 10/100 Mbit/s |
| Topology | Daisy chain, Star, Ring (using rstp) |
| Web server | Embedded |
| Communication Service | Secure boot, Secure storage (via TPM), SCEP client (pending), CAE Support, Secure syslog server (pending), TLS 1.2, Embedded TPM, DPWS (IPv6), Configuration, Web server, FDR client, BOOTP, DHCP client, IPV4, EtherNet/IP Server, Modbus TCP server, OPCUA server (explicit only), SNMP (pending), Crashlog, NTP v4, RSTP support, Static VLAN configuration, Quality of Service (QoS), USB RNDIS |
| Number of addressable I/O module | 32 modules |
| Local signalling | 1 LED (green) for RUN, 1 LED (red) for ERR, 1 LED (green/red) for I/O, 1 LED (green/red) for MS, 1 LED (green/red) for NS, 1 LED (green/red) for cyber security (SEC) |
| Height | 3.9 in (100 mm) |
| Width | 1.8 in (45 mm) |
| Depth | 3.3 in (84 mm) |
| Net Weight | 0.681 lb(US) (0.309 kg) |
Environment 9
| IP Degree of Protection | IP20 |
|---|---|
| Protective treatment | Conformal coating |
| Marking | CE, UKCA, CULus, RCM |
| Directives | 2014/35/EU - directive basse tension, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Ambient air temperature for operation | -40…158 °F (-40…70 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating |
| Pollution degree | 2 |
Show all 39 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | NTSNEC1200HK |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486878033 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.309 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
