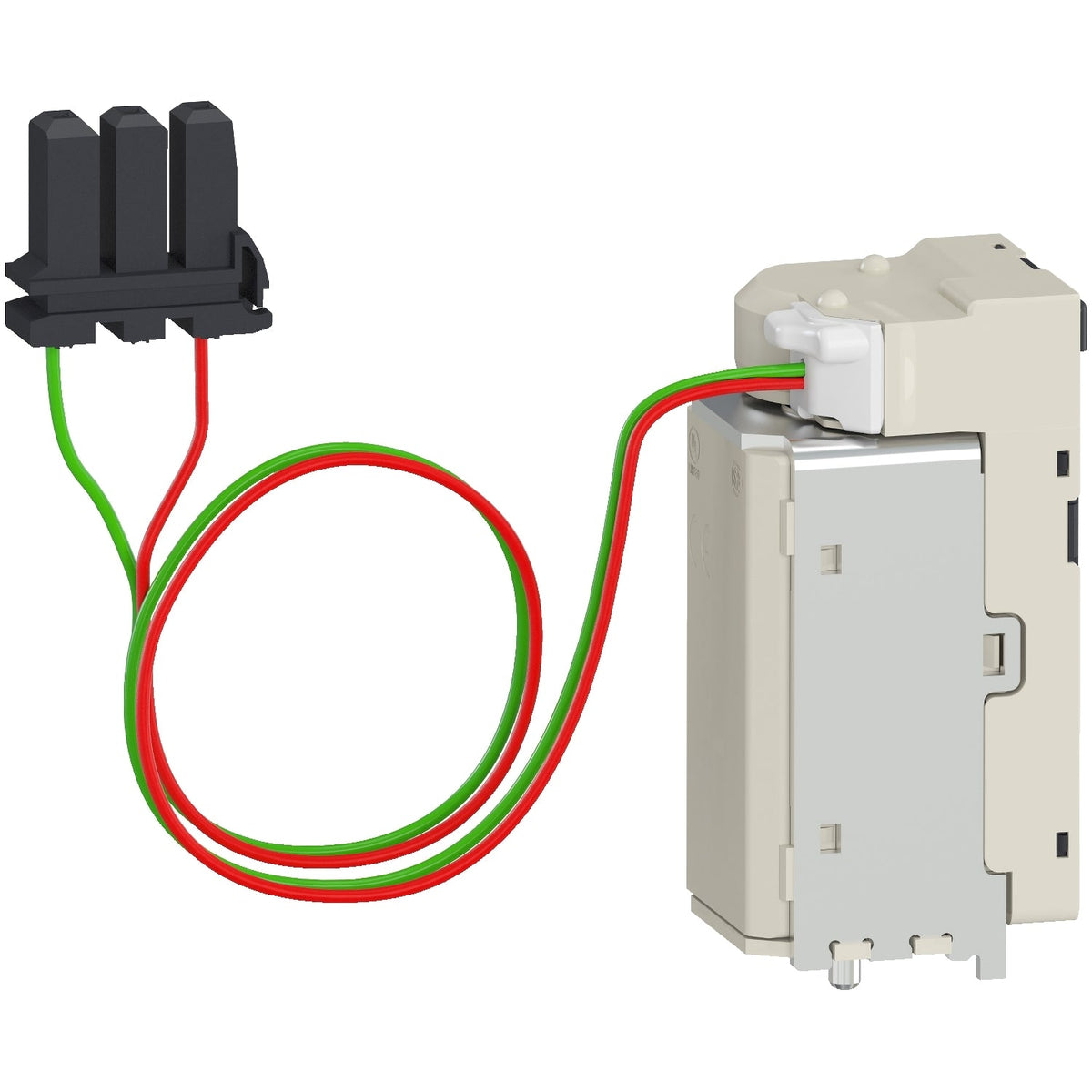

Schneider Electric LV947385 MasterPacT MTZ MN Undervoltage Release 380-480V Air Circuit Breaker Accessory

Schneider Electric LV947385 MN undervoltage release, MasterPacT MTZ1/MTZ2/MTZ3 fixed, 380-480 V AC.

Rated operational voltage
380–480 V AC
Description

About the MN

The Schneider Electric LV947385 is an MN opening undervoltage release for the fixed MasterPacT MTZ1, MTZ2 and MTZ3 Active circuit breakers, supplied for 380-480 V AC 50/60 Hz control voltage. It trips the breaker instantaneously once the supervised voltage drops to 0.35-0.7 Un, giving the connected MasterPacT breaker an undervoltage safety trip and re-closing permission once voltage recovers to 0.85 Un.

Selection Notes

The MN release is an undervoltage trip, not an overcurrent protection: it opens the breaker when the supervised voltage falls below the 0.35-0.7 Un threshold and re-closes above 0.85 Un, so it is specified for safety interlocking rather than fault clearing. It fits the fixed-mounting MasterPacT MTZ1, MTZ2 and MTZ3 Active breakers only; the drawout version of the same breakers needs the corresponding drawout-rated release. The 380-480 V AC supply range covers both 50 Hz and 60 Hz installations without a separate part number.

Specification

Full specification

30 values · Last verified 30 Oct 2026

Main 7

Maximum response time 45 ms on opening for MasterPact MTZ1, 95 ms on opening for MasterPact MTZ2, 95 ms on opening for MasterPact MTZ3
Range MasterPacT
Device short name MN
Product or component type Undervoltage release
Device application Safety
Range compatibility MasterPacT MTZ1 Active circuit breaker, MasterPacT MTZ2 Active circuit breaker, MasterPacT MTZ3 Active circuit breaker
Voltage release type Instantaneous

Complementary 5

Control type Standard
[Un] voltage power supply 380...480 V AC 50/60 Hz
Threshold tripping voltage 0.35...0.7 Un opening, 0.85 Un closing
Holding power consumption 4.5 VA
Circuit breaker mounting mode Fixed

Contractual warranty 1

Warranty (in months) 18
Show all 30 specifications ↓ Show less ↑17 more values in Identification, Logistics.

Identification 7

Part number LV947385
Type designation MN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2 cm
Package 1 Width 1 cm
Package 1 Length 2 cm
Package 1 Weight 10 g
Shipping weight 0.01 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV947385

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the MN

Which supply voltage is MN rated for?

The rated operational voltage of MN is 380–480 V AC.

What is the HS code of MN for customs?

The tariff (HS) code on file for MN is 853890.

Where does MN ship from, and how fast?

MN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
