Schneider Electric LV947362 MasterPacT MTZ Active MX Opening Release 100-130V Air Circuit Breaker Accessory

% $-121.30
Schneider Electric LV947362 MX opening voltage release – MTZ Active 100-130 V AC/DC
Schneider Electric LV947362 MX opening voltage release – MTZ Active 100-130 V AC/DC

Schneider Electric LV947362 MasterPacT MTZ Active MX Opening Release 100-130V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV947362
Catalog No: LV947362
Tariff Code (HS): 853890
Rated Voltage: 100-130 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$121.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

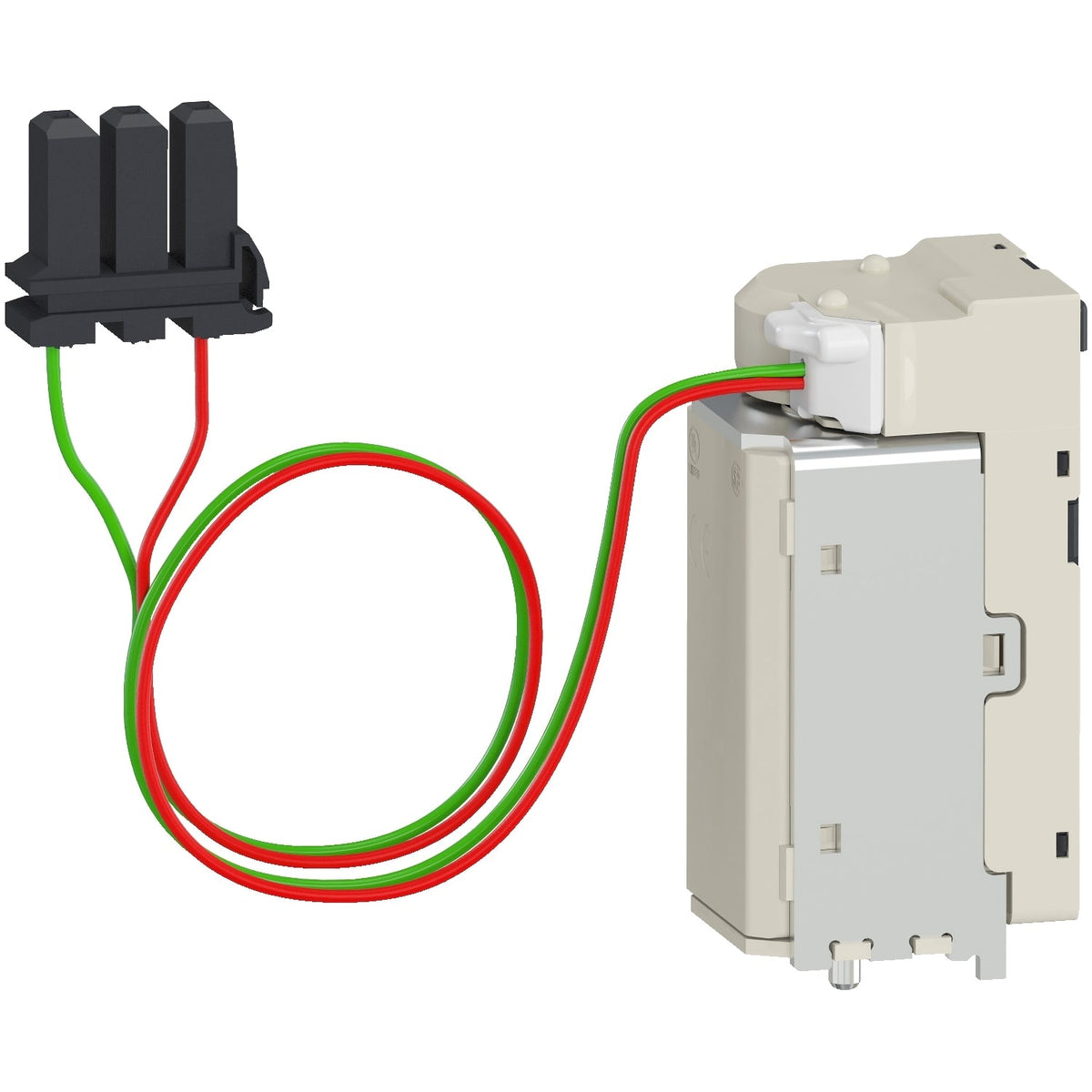

The Schneider Electric LV947362 is an MX opening coil for fixed MasterPacT MTZ1 and MTZ2 Active circuit breakers fitted with the MicroLogic Active control unit, supplied for 100-130 V AC 50/60 Hz or 100-130 V DC. Energizing the coil trips the breaker open within 60 ms once voltage reaches 0.7-1.1 Un.

Technical Specifications

Reference LV947362
Brand Schneider Electric
Range MasterPacT
Device short name MX
Product or Component Type Voltage release
Device Application Control
Range compatibility MasterPacT MTZ1, MTZ2 Active circuit breaker
Voltage release type Opening coil
Control Type Standard
[Un] voltage power supply 100-130 V AC 50/60 Hz, 100-130 V DC
Threshold tripping voltage 0.7-1.1 Un on opening
Holding power consumption 4.5 W
Circuit breaker mounting mode Fixed
Maximum response time 60 ms on MTZ1, MTZ2, and MTZ3 opening
Number of units in package 1

Selection Notes

The LV947362 covers MTZ1 and MTZ2 Active frames only; Schneider does not list an MTZ3 Active variant for this MX reference, so confirm the breaker frame before ordering. Use this 100-130 V variant when the shunt-trip circuit matches that control voltage; 200-250 V and 380-480 V versions exist for other circuits. The 60 ms response time applies uniformly across the covered frames, which simplifies protection-coordination studies that include a remote shunt-trip path. It ships one piece per package, matching how the rest of the MasterPacT Active coil family is sold.

Technical Details

Short Description
MX opening voltage release, fixed MasterPacT MTZ1/MTZ2 Active, 100-130 V AC/DC.
