Schneider Electric LV947355 MasterPacT MTZ Active XF Closing Release 380-480V Air Circuit Breaker Accessory

% $-121.30
Schneider Electric LV947355 XF closing voltage release – MTZ Active 380-480 V AC
Schneider Electric LV947355 XF closing voltage release – MTZ Active 380-480 V AC

Schneider Electric LV947355 MasterPacT MTZ Active XF Closing Release 380-480V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV947355
Catalog No: LV947355
Tariff Code (HS): 853890
Rated Voltage: 380-480 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$121.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

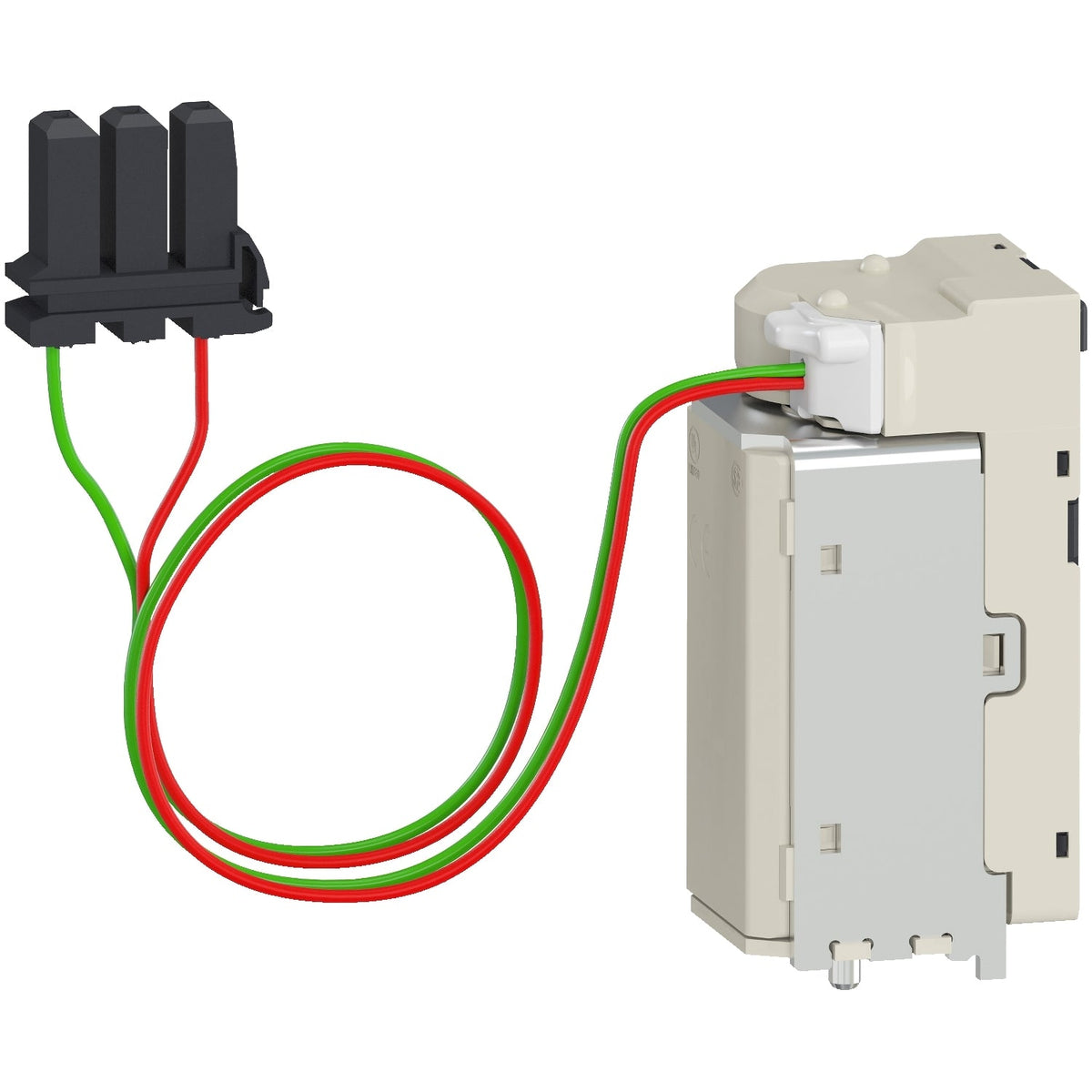

The Schneider Electric LV947355 is an XF closing coil for fixed MasterPacT MTZ1, MTZ2, and MTZ3 Active circuit breakers fitted with the MicroLogic Active control unit, supplied for 380-480 V AC 50/60 Hz only. Energizing the coil closes the breaker remotely once voltage reaches 0.85-1.1 Un. It is sold as a single piece with an instruction sheet for installation.

Technical Specifications

Reference LV947355
Brand Schneider Electric
Range MasterPacT
Device short name XF
Product or Component Type Voltage release
Device Application Control
Range compatibility MasterPacT MTZ1, MTZ2, MTZ3 Active circuit breaker
Voltage release type Closing coil
Control Type Standard
[Un] voltage power supply 380-480 V AC 50/60 Hz
Threshold tripping voltage 0.85-1.1 Un on closing
Holding power consumption 4.5 VA
Circuit breaker mounting mode Fixed
Maximum response time 65 ms on MTZ1, 80 ms on MTZ2, 90 ms on MTZ3
Number of units in package 1

Selection Notes

The LV947355 is the AC-only, 380-480 V member of the XF closing-coil family, unlike the 100-130 V and 200-250 V versions that also accept DC; verify the control source is AC before ordering it. It fits fixed MasterPacT MTZ1/MTZ2/MTZ3 Active breakers with MicroLogic Active control units. Response time still scales by frame — 65 ms on MTZ1 to 90 ms on MTZ3 — which sets the minimum interval between a close command and the breaker actually closing.

Technical Details

Short Description
XF closing voltage release, fixed MasterPacT MTZ1/MTZ2/MTZ3 Active, 380-480 V AC.
Rated Voltage (VAC)
380-480 V AC
Mounting Type
Fixed
Catalog No
LV947355
Delivery Date (Days)
30 days
Model Number
XF
Tariff Code
853890
