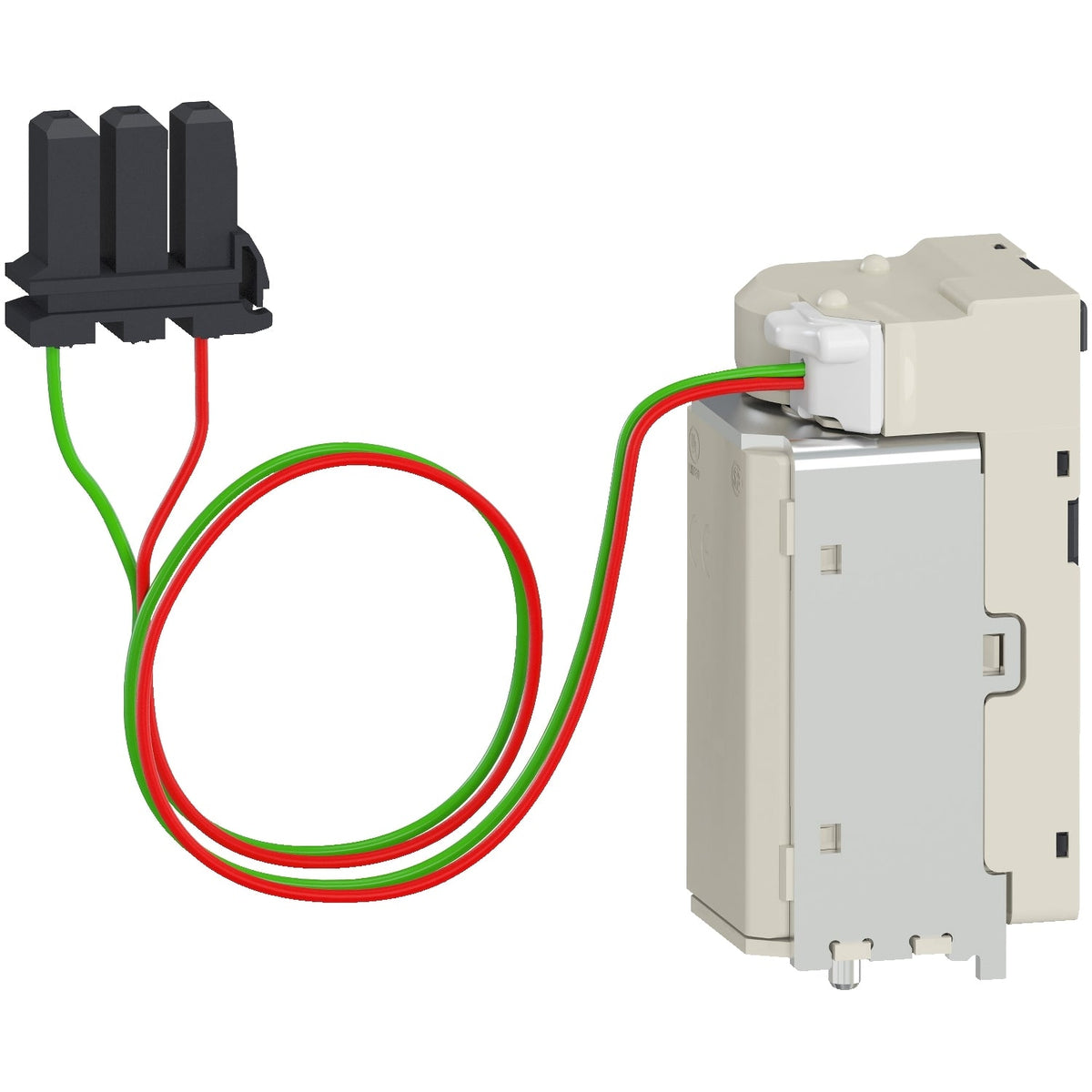

Schneider Electric LV947353 MasterPacT MTZ Active XF Closing Release 200-250V Air Circuit Breaker Accessory

% $-121.30
Schneider Electric LV947353 XF closing voltage release – MTZ Active 200-250 V AC/DC
Schneider Electric LV947353 XF closing voltage release – MTZ Active 200-250 V AC/DC

Schneider Electric LV947353 MasterPacT MTZ Active XF Closing Release 200-250V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV947353
Catalog No: LV947353
Tariff Code (HS): 853890
Rated Voltage: 200-250 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$121.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV947353 is an XF closing coil for fixed MasterPacT MTZ1, MTZ2, and MTZ3 Active circuit breakers fitted with the MicroLogic Active control unit, supplied for 200-250 V AC 50/60 Hz or 200-250 V DC. Energizing the coil closes the breaker remotely once voltage reaches 0.85-1.1 Un. It is sold as a single piece with an instruction sheet for installation.

Technical Specifications

Reference LV947353
Brand Schneider Electric
Range MasterPacT
Device short name XF
Product or Component Type Voltage release
Device Application Control
Range compatibility MasterPacT MTZ1, MTZ2, MTZ3 Active circuit breaker
Voltage release type Closing coil
Control Type Standard
[Un] voltage power supply 200-250 V AC 50/60 Hz, 200-250 V DC
Threshold tripping voltage 0.85-1.1 Un on closing
Holding power consumption 4.5 W
Circuit breaker mounting mode Fixed
Maximum response time 65 ms on MTZ1, 80 ms on MTZ2, 90 ms on MTZ3
Number of units in package 1

Selection Notes

Choose the LV947353 over the 100-130 V LV947352 when the panel's remote-close circuit is wired for 200-250 V AC or DC; the coil will not operate correctly on the wrong voltage band. It is built for the MasterPacT Active platform with MicroLogic Active control units only. Response time is unchanged from the rest of the XF family — 65 ms on MTZ1 up to 90 ms on MTZ3 — so sequencing logic designed around one voltage variant carries over to this one.

Technical Details

Short Description
XF closing voltage release, fixed MasterPacT MTZ1/MTZ2/MTZ3 Active, 200-250 V AC/DC.
