Schneider Electric LV947352 MasterPacT MTZ Active XF Closing Release 100-130V Air Circuit Breaker Accessory

% $-121.30
Schneider Electric LV947352 XF closing voltage release – MTZ Active 100-130 V AC/DC
Schneider Electric LV947352 XF closing voltage release – MTZ Active 100-130 V AC/DC

Schneider Electric LV947352 MasterPacT MTZ Active XF Closing Release 100-130V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV947352
Catalog No: LV947352
Tariff Code (HS): 853890
Rated Voltage: 100-130 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$121.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

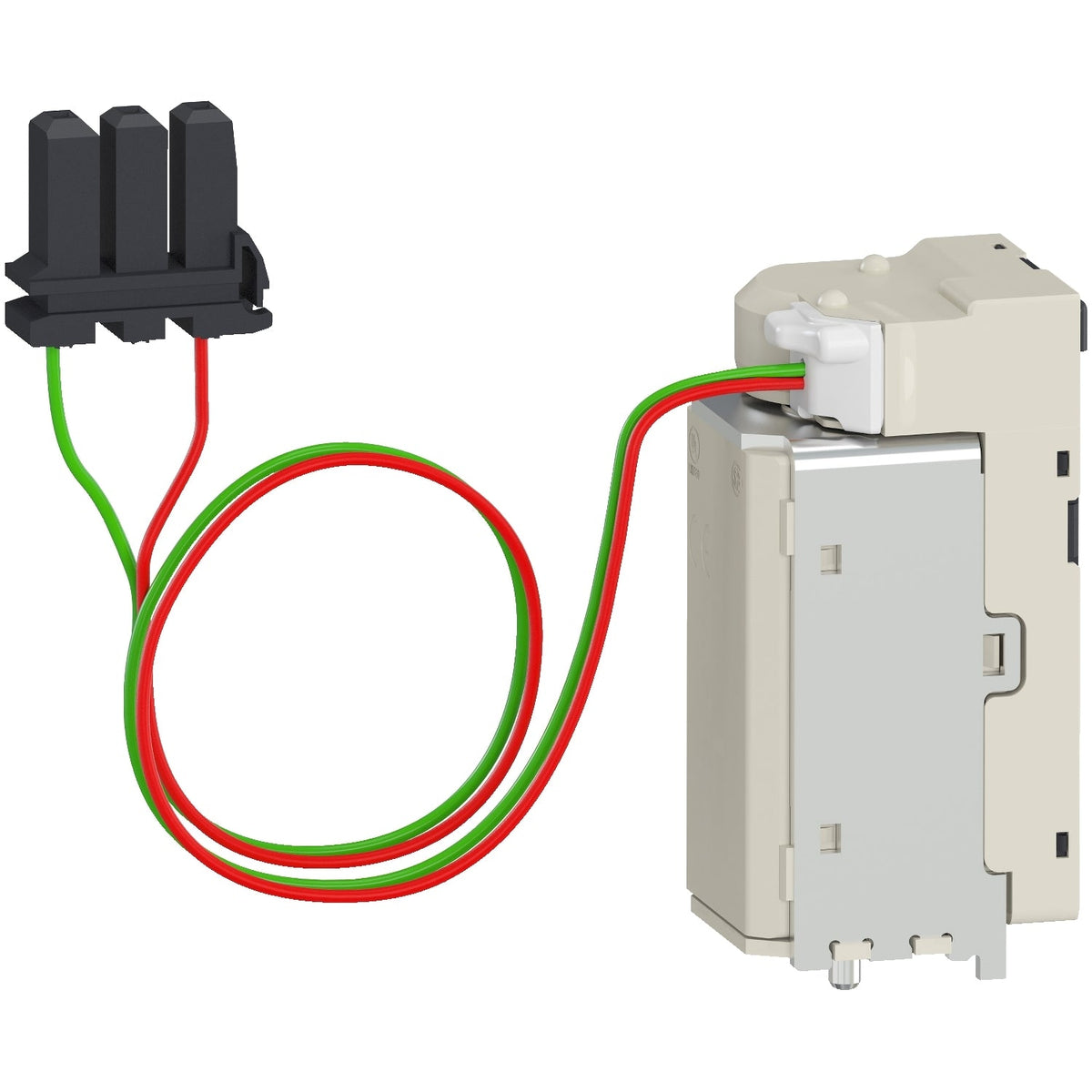

The Schneider Electric LV947352 is an XF closing coil for fixed MasterPacT MTZ1, MTZ2, and MTZ3 Active circuit breakers fitted with the MicroLogic Active control unit, supplied for 100-130 V AC 50/60 Hz or 100-130 V DC. Energizing the coil closes the breaker remotely once voltage reaches 0.85-1.1 Un. It is sold as a single piece with an instruction sheet for installation.

Technical Specifications

Reference LV947352
Brand Schneider Electric
Range MasterPacT
Device short name XF
Product or Component Type Voltage release
Device Application Control
Range compatibility MasterPacT MTZ1, MTZ2, MTZ3 Active circuit breaker
Voltage release type Closing coil
Control Type Standard
[Un] voltage power supply 100-130 V AC 50/60 Hz, 100-130 V DC
Threshold tripping voltage 0.85-1.1 Un on closing
Holding power consumption 4.5 W
Circuit breaker mounting mode Fixed
Maximum response time 65 ms on MTZ1, 80 ms on MTZ2, 90 ms on MTZ3
Number of units in package 1

Selection Notes

Pick the LV947352 when the remote-close control circuit runs at 100-130 V AC or DC; the same XF coil is also offered for 200-250 V and 380-480 V circuits. It pairs only with fixed MasterPacT MTZ1/MTZ2/MTZ3 Active breakers running the MicroLogic Active control unit, not the earlier MicroLogic X platform. Response time scales with frame size — 65 ms on MTZ1 rising to 90 ms on MTZ3 — which matters when the closing command is part of an automated transfer sequence.

Technical Details

Short Description
XF closing voltage release, fixed MasterPacT MTZ1/MTZ2/MTZ3 Active, 100-130 V AC/DC.
Rated Voltage (VAC)
100-130 V AC
Mounting Type
Fixed
Catalog No
LV947352
Delivery Date (Days)
30 days
Model Number
XF
Tariff Code
853890

Downloads

Customers say

Pairs well with
