Schneider Electric LV850062SP MasterPact MTZ2/MTZ3 ULP Port Module Drawout Spare Air Circuit Breaker Accessory

% $-146.67

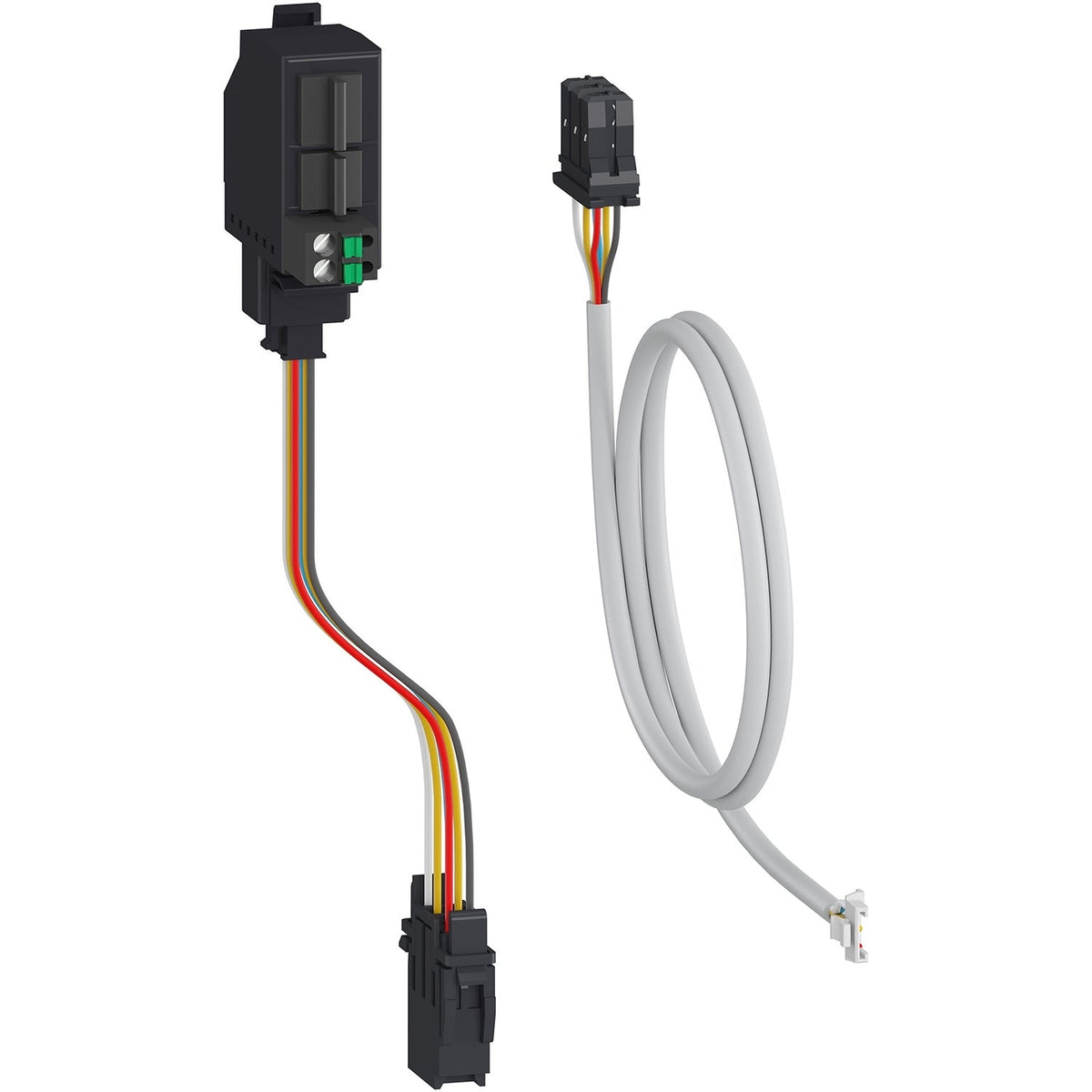

Schneider Electric LV850062SP ULP port module – drawout MTZ2/MTZ3
Schneider Electric LV850062SP ULP port module – drawout MTZ2/MTZ3

Schneider Electric LV850062SP MasterPact MTZ2/MTZ3 ULP Port Module Drawout Spare Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV850062SP
Catalog No: LV850062SP
Tariff Code (HS): 853890
Communication: ULP
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$146.67

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV850062SP is a ULP port module kit supplied as a spare part for drawout MasterPact MTZ2 and MTZ3 breakers, mounted on the chassis. It gives the breaker's control unit a ULP communication port, drawing up to 0.8 A and 16 W from the bus, and is the entry point for fitting a ULP-based communication accessory such as the EIFE Ethernet interface module.

Technical Specifications

Reference LV850062SP
Brand Schneider Electric
Range MasterPact
Product or Component Type Connection adapter
Device Application Communication
Range compatibility MasterPact MTZ2, MTZ3
Circuit breaker mounting mode Drawout
Localisation on device Chassis
Maximum supply current 0.8 A
Power Consumption 16 W
Provided equipment 1 instruction sheet
Offer type Spare part
Number of units in package 32

Selection Notes

The LV850062SP is the drawout counterpart of the fixed-breaker LV850061SP, mounted on the chassis rather than the connection terminals so the ULP port remains accessible with the breaker racked out for maintenance. Its power draw is slightly higher at 16 W versus 14 W for the fixed version, reflecting the chassis-mounted wiring run. It is the prerequisite for fitting the drawout EIFE Ethernet interface module or other ULP-based accessories on MTZ2/MTZ3.

Technical Details

Short Description
ULP port module spare part, drawout MasterPact MTZ2/MTZ3, chassis mounted.
Mounting Type
Drawout
Catalog No
LV850062SP
Delivery Date (Days)
30 days
Model Number
ULP Port Module
Tariff Code
853890
