Part number
LV848609SP
$2,137.22 On request Dispatch — · From TürkiyeGet a Quote

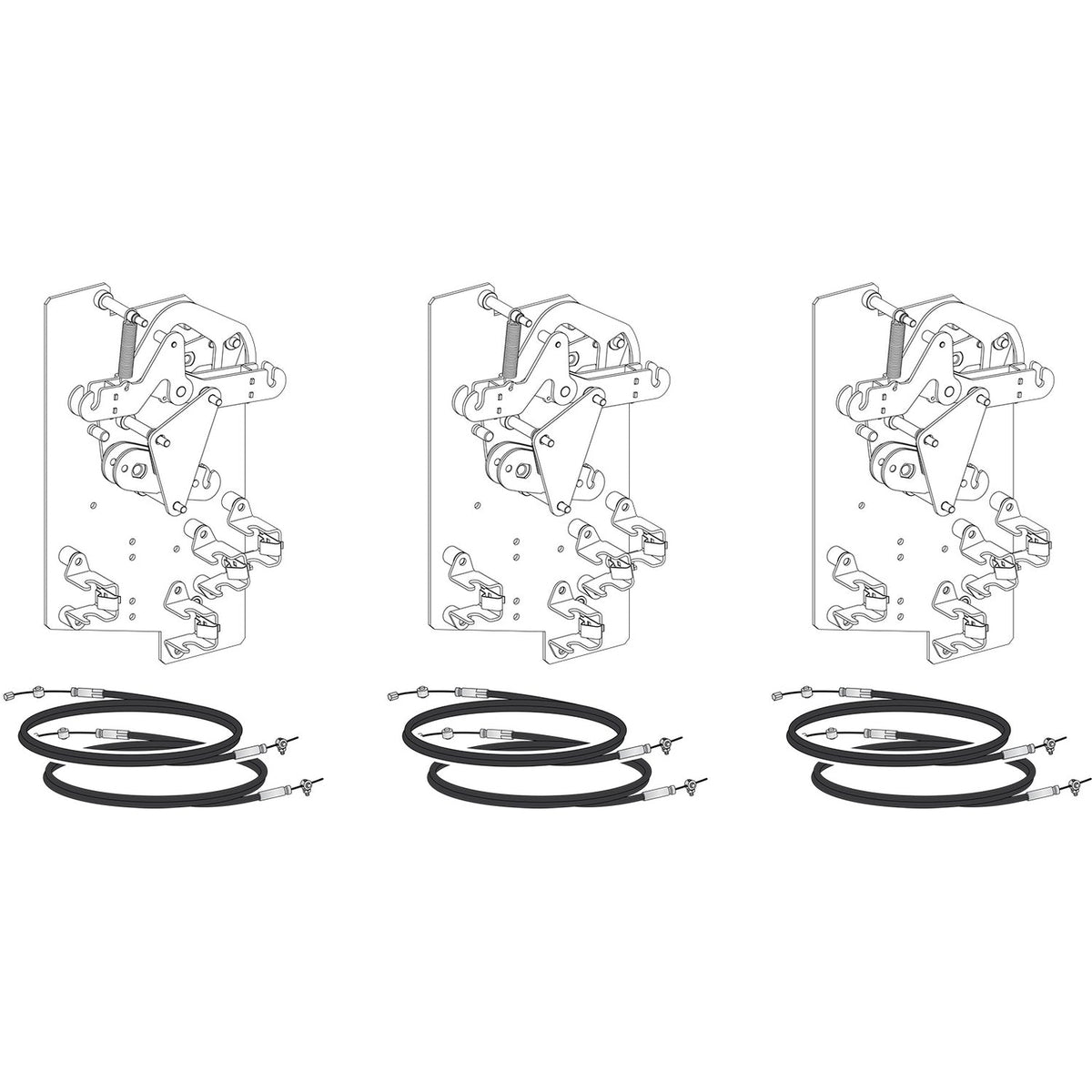

Schneider Electric LV848609SP MasterPact MTZ2/3 Cable Interlock 2S/1C Spare Air Circuit Breaker Accessory

Cable interlock kit, 2 normal + 1 coupling source, MasterPact MTZ2/MTZ3, remote control.

Range
MasterPact
Product or Component Type
Cable interlock
Accessory / separate part category
Interlocking accessory
Range Compatibility
Masterpact MasterPact MTZ2, Masterpact MasterPact MTZ3
Mounting Mode
Fixed, Drawout
EAN
3606481173195
Description

About the LV848609SP

The Schneider Electric LV848609SP is a cable interlocking kit for source-changeover schemes on MasterPact MTZ2 and MTZ3 breakers, interlocking 2 normal sources with 1 bus-coupling source under remote control. It is supplied as a spare part for fixed or drawout breakers. It ships with 1 instruction sheet for the field installation.

Selection Notes

Choose the LV848609SP over the LV848608SP when the third breaker in the scheme is a bus-coupling (tie) breaker rather than a standby replacement source — the interlock logic differs because a coupling breaker can tie two live sections together instead of simply substituting for one. It still interlocks 2 normal sources with that 1 coupling device on MasterPact MTZ2/MTZ3, fixed or drawout, with remote control rather than a purely mechanical link. As with the rest of the family, it is sold without a stated package quantity, reflecting a made-to-order spare.

Specification

Full specification

28 values · Last verified 30 Oct 2026

Main 5

Range MasterPact
Product or Component Type Cable interlock
Accessory / separate part category Interlocking accessory
Range Compatibility Masterpact MasterPact MTZ2, Masterpact MasterPact MTZ3
Mounting Mode Fixed, Drawout

Complementary 5

Source-changeover interlock Interlocking 2 normal and 1 coupling source
Interlocked device MasterPact MTZ2, MasterPact MTZ3
Control Type Remote control
Provided equipment 1 instruction sheet
Offer type Spare part

Contractual warranty 1

Warranty (in months) 18
Show all 28 specifications ↓ Show less ↑17 more values in Identification, Logistics.

Identification 7

Part number LV848609SP
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481173195

Logistics 10

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 11.811 in (30.000 cm)
Package 1 Width 11.811 in (30.000 cm)
Package 1 Length 15.748 in (40.000 cm)
Package weight(Lbs) 13.827 lb(US) (6.272 kg)
Shipping weight 6.272 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV848609SP

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LV848609SP

What is the HS code of LV848609SP for customs?

The tariff (HS) code on file for LV848609SP is 853890.

What is the EAN of LV848609SP?

The EAN (GTIN) of LV848609SP is 3606481173195.

Where does LV848609SP ship from, and how fast?

LV848609SP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
