Part number
LV848212
Model no
MCH
$497.78 On request Dispatch — · From TürkiyeGet a Quote

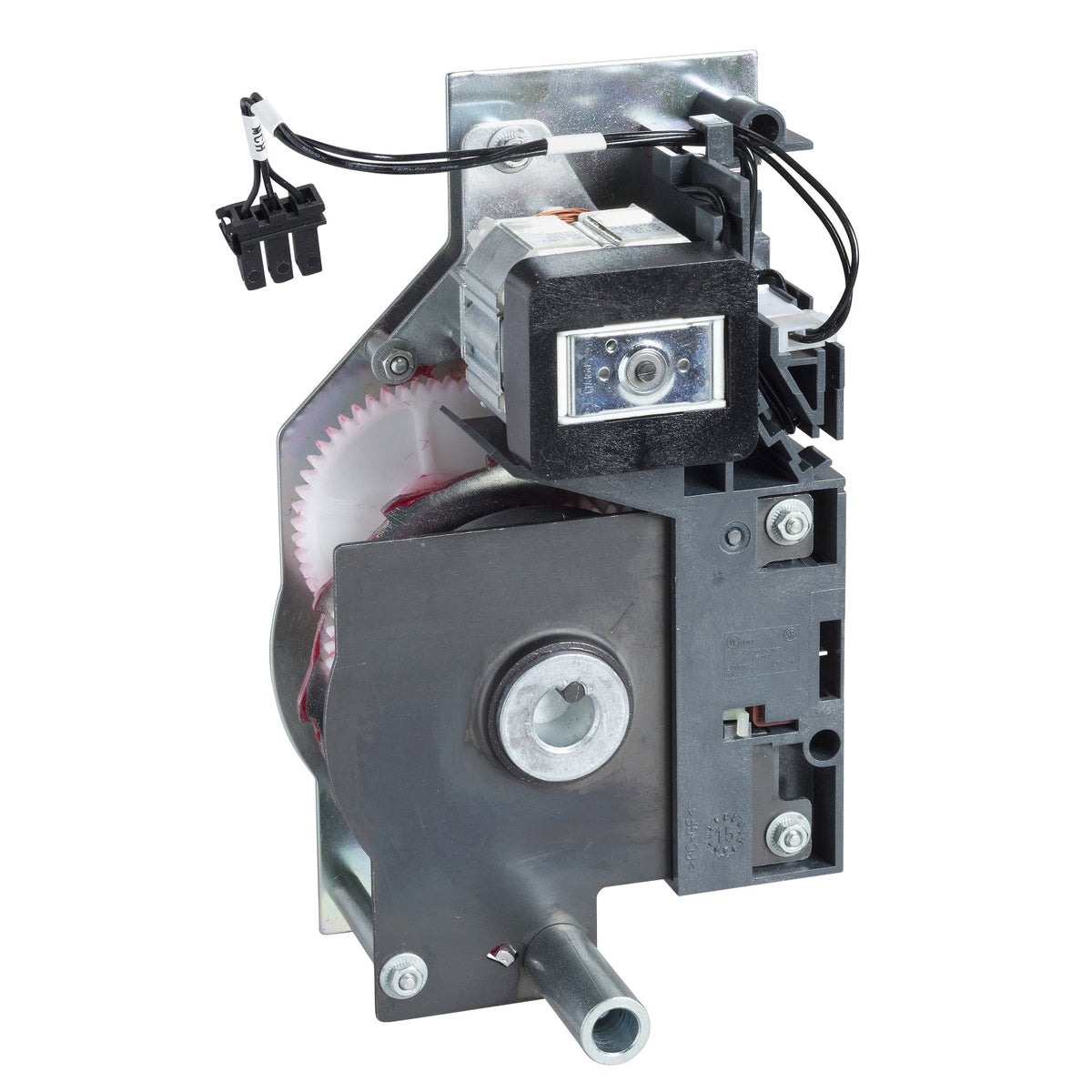

Schneider Electric LV848212 MasterPact MTZ2/3 MCH Motor Mechanism 200-240V Air Circuit Breaker Accessory

MCH electric motor mechanism, fixed MasterPact MTZ2/MTZ3, 200-240 V AC remote operation.

Rated operational voltage
200–240 V AC
EAN
3606480804892
Description

About the MCH

The Schneider Electric LV848212 is an MCH electric motor mechanism for fixed MasterPact MTZ2 and MTZ3 air circuit breakers, built for remote operation on a 200-240 V AC 50/60 Hz control supply. It charges the breaker's closing springs in 4 s or less, enabling remote closing without a manual handle.

Selection Notes

The LV848212 is the 200-240 V AC factory-fit MCH mechanism for MTZ2/MTZ3, sitting between the 100-130 V LV848211 and the 250-277 V LV848213 in the same frame family. It is the new-build equivalent of the LV847894SP spare. Mounting is fixed only, and the 4 s charging time and 240 V, 10 A limit switch contact match the rest of the MTZ2/MTZ3 motor mechanism line. Overcurrent protection at 2-3 x In within 0.1 s disconnects the motor circuit quickly if it stalls mid-charge. All three voltage options share the same 4 s charging time and mounting footprint.

Specification

Full specification

33 values · Last verified 30 Oct 2026

Main 5

Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Device Application Control
Range compatibility Masterpact MasterPact MTZ2, Masterpact MasterPact MTZ3

Complementary 9

Control Type Standard
Mounting Mode Fixed
[Uc] control circuit voltage 200...240 V AC 50/60 Hz
Threshold tripping voltage 0.85...1.1 Un
Maximum power consumption in VA 180 VA
Overcurrent protection 2...3 x In 0.1 s
Maximum charging time 4 s
Maximum operating frequency <= 3 cycles per minute
provided contact Limit switch contact 240 V 10 A

Contractual warranty 1

Warranty (in months) 18
Show all 33 specifications ↓ Show less ↑18 more values in Identification, Logistics.

Identification 8

Part number LV848212
Type designation MCH
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480804892

Logistics 10

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 4.9 in (12.5 cm)
Package 1 Width 5.1 in (13.0 cm)
Package 1 Length 9.02 in (22.9 cm)
Package weight(Lbs) 4.118 lb(US) (1.868 kg)
Shipping weight 1.868 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV848212 4

Quick answers

Questions about the MCH

Which supply voltage is MCH rated for?

The rated operational voltage of MCH is 200–240 V AC.

What is the HS code of MCH for customs?

The tariff (HS) code on file for MCH is 853890.

What is the EAN of MCH?

The EAN (GTIN) of MCH is 3606480804892.

Where does MCH ship from, and how fast?

MCH ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
