Part number
LV848211
Model no
MCH
$497.78 On request Dispatch — · From TürkiyeGet a Quote

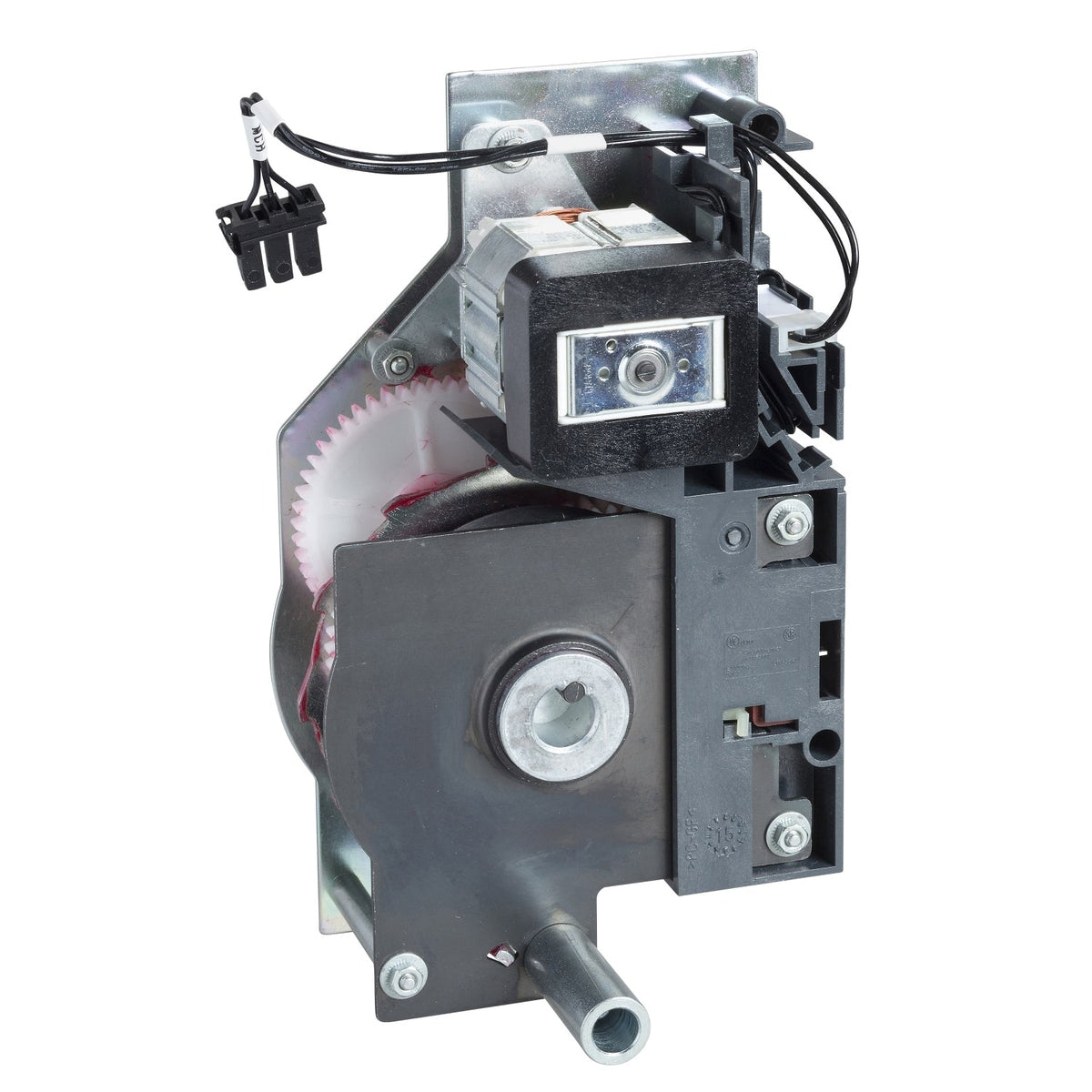

Schneider Electric LV848211 MasterPact MTZ2/3 MCH Motor Mechanism 100-130V Air Circuit Breaker Accessory

MCH electric motor mechanism, fixed MasterPact MTZ2/MTZ3, 100-130 V AC remote operation.

Rated operational voltage
100–130 V AC
EAN
3606480804885
Description

About the MCH

The Schneider Electric LV848211 is an MCH electric motor mechanism for fixed MasterPact MTZ2 and MTZ3 air circuit breakers, built for remote operation on a 100-130 V AC 50/60 Hz control supply. It charges the breaker's closing springs in 4 s or less, enabling remote closing without a manual handle.

Selection Notes

Specify the LV848211 for new MasterPact MTZ2/MTZ3 builds that need remote closing at a 100-130 V AC control voltage; the 200-240 V and 250-277 V siblings cover higher control circuits. It is the factory-fit equivalent of the LV847893SP spare part, sharing the same 4 s charging time and 240 V, 10 A limit switch contact. Fixed mounting only — drawout breakers use a different mechanism reference. Overcurrent protection at 2-3 x In within 0.1 s disconnects the motor circuit quickly if it stalls mid-charge. All three voltage options share the same 4 s charging time and mounting footprint.

Specification

Full specification

33 values · Last verified 30 Oct 2026

Main 5

Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Device Application Control
Range compatibility Masterpact MasterPact MTZ2, Masterpact MasterPact MTZ3

Complementary 9

Control Type Standard
Mounting Mode Fixed
[Uc] control circuit voltage 100...130 V AC 50/60 Hz
Threshold tripping voltage 0.85...1.1 Un
Maximum power consumption in VA 180 VA
Overcurrent protection 2...3 x In 0.1 s
Maximum charging time 4 s
Maximum operating frequency <= 3 cycles per minute
provided contact Limit switch contact 240 V 10 A

Contractual warranty 1

Warranty (in months) 18
Show all 33 specifications ↓ Show less ↑18 more values in Identification, Logistics.

Identification 8

Part number LV848211
Type designation MCH
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480804885

Logistics 10

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 5.0 in (12.6 cm)
Package 1 Width 5.08 in (12.9 cm)
Package 1 Length 9.02 in (22.9 cm)
Package weight(Lbs) 4.087 lb(US) (1.854 kg)
Shipping weight 1.854 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV848211

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the MCH

Which supply voltage is MCH rated for?

The rated operational voltage of MCH is 100–130 V AC.

What is the HS code of MCH for customs?

The tariff (HS) code on file for MCH is 853890.

What is the EAN of MCH?

The EAN (GTIN) of MCH is 3606480804885.

Where does MCH ship from, and how fast?

MCH ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
